Gigabyte R283-ZF1 Rack Server

With support for up to 4x dual slot Gen5 GPUs, the 2U Gigabyte R283-ZF1 Server offers high-performance computing ideal for visual computing, and AI inference. Up to 2x AMD EPYC 9004 Series Processors can be installed on this server, with each CPU supporting 12x DDR5 DIMM slots for 24x total. Fully configured the maximum memory capacity is up to 6TB. Accessible from the front of the server, there are 4x 2.5-inch Gen5 NVMe/SATA/SAS4 hot-swappable drive bays, 4x 2.5-inch Gen5 NVMe hot-swappable drive bays, and 8x 2.5-inch SATA/SAS4 hot-swappable drive bays.
Configure

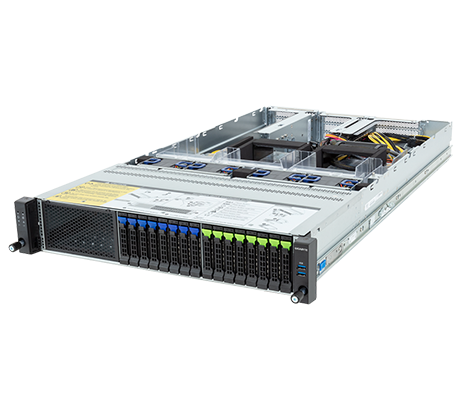

Gigabyte R283-ZF1 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R283-ZF1 Rack Server - System Overview

Additional Information

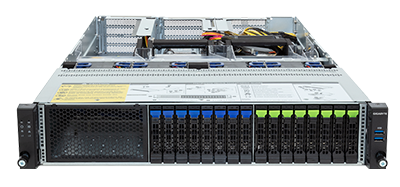

Gigabyte R283-ZF1 front detail

4x PCIe Gen5 x16 full-height, full-length expansion slots support GPUs double-wide GPUs. With no integrated LAN ports, aside from a dedicated RJ45 GbE management port, an additional full-height, half-length PCIe 5.0 x16 slot plus an OCP 3.0 mezzanine card slot are available for network or storage support. Designed for intensive computational applications, up to 2x AMD EPYC 9004 Series Processors can be installed on the Gigabyte R283-ZF1.

Gigabyte R283-ZF1 detail top

Powering this system there are 2x 2700W 80 Plus Titanium power supplies in a redundant configuration. The storage configuration on this system includes 16x hybrid drive bays, accessible from the front of the system. If installing SAS drives, a discrete SAS card is required. In order to meet fast access storage needs, there is 1x M.2 slot per processor on the system board.

* A SAS drive support requires a discrete SAS controller.

Available Configurations

Explore available configurations for the Gigabyte R283-ZF1 Rack Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R283-ZF1 Rack Server - Specifications

Processor - 2 Sockets

  • AMD EPYC 9004 series processors
  • Up to 128-core, 256 threads processor
  • cTDP up to 300W

    • Socket:

  • 2 x LGA 6096 / Socket SP5

Motherboard

  • MZF3-GP0

Memory

    Memory Slots

  • 24 x DIMM slots
  • 12-Channel memory architecture

    • Memory Type

  • RDIMM
  • 3DS RDIMM

    • Memory Speed

  • Up to 4800MHz

    • DIMM Module Sizes

  • RDIMM: Up to 96GB supported
  • 3DS RDIMM: Up to 256GB

Drive Bays

  • 4 x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
  • 4 x 2.5" Gen5 NVMe hot-swappable bays
  • 8 x 2.5" SATA/SAS4 hot-swappable bays
    • *Note: SAS card is required for SAS drive support

LAN

    Rear Side:

  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920 x 1200@60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal:

  • 1 x TPM header
  • 1 x OCP 3.0 slot

    • Front:

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LEDs (disabled)
  • 1 x Bay status LED
  • 1 x System status LED

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x MLAN
  • 1 x ID LED

    • Backplane:

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

    • TPM:

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    PCIe cable x 5::

  • 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
  • 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1, for GPUs
  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
  • 1 x OCP 3.0 slot, from CPU_0

    • M.2:

  • 2 x M.2
  • Supports 2280 cards

Chassis

    Height: 87.5mm

    Width: 438mm

    Depth: 815mm

Power Supply

  • 1+1 2700W (240V) 80 PLUS Titanium redundant power supplies

System Cooling

  • 1 x 40x40x28mm (34,000rpm)
  • 4 x 80x80x56mm (15,500rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
