Gigabyte R284-S90 Server

Ideal for networking, such as file storage, file access via VPN, and as a virtual server, the 2U Gigabyte R284-S90 Server supports dual sockets. It’s compatible with Intel Xeon 6 processors from either the 6700 series with E-Cores, 6700 series with P-Cores, or 6500 series with P-Cores. Processors with a TDP of up to 350W are supported. 16x DIMM slots per socket provide a total of 32x memory module slots. Some PCIe or memory functions might be unavailable if only one processor is installed.

Overview

Gigabyte R284-S90 Server - System Overview

Featuring CPUs with an 8-channel memory architecture, the Gigabyte R284-S90 supports RDIMMs with speeds up to 6400 MT/s, and MCR DIMMs with speeds reaching up to 8000 MT/s. Only Intel Xeon 6 CPUs with P-Cores installed in a 1 DPC configuration are compatible with MCR DIMMs. The system offers a total of 14x drive bays with 12x 3.5” Gen5 NVMe/SATA/SAS4 hot-swap bays on the front of the chassis, and an additional 2x 2.5” SATA/SAS4 hot-swap drive bays on the rear. To boot the OS, the platform supports 2x M.2 slots with a PCIe Gen5 x4 interface on the motherboard.

The R284-S90 server delivers 2x FHHL, dual-slot PCIe Gen5 x16 slots via a PCIe cable, 1x FHHL Gen5 x16 on a riser, and another FHHL Gen5 x16 on a secondary riser. Administrators can access 2x OCP 3.0 Gen5 x16 slots through the rear of the machine where the dual 1+1 redundant 2000W 80 PLUS Titanium power supplies can also be found.

Gigabyte a no cost pre-installed software, the gigabyte Management Console, to monitor and manage a single server or small cluster. For managing several clusters of servers, Gigabyte Server Management (GSM) can be downloaded and offers several other software utilities including GSM Plugin for use with VMware vCenter and a mobile app.

Specifications

Gigabyte R284-S90 Server - Specifications

Processor - Dual Socket

Intel Xeon 6 Processors
Intel Xeon 6 6700 Series with E-Cores
Intel Xeon 6 6700 Series with P-Cores
Intel Xeon 6 6500 Series with E-Cores
Dual processor, TDP up to 350W
2 x LGA 4710 (Socket E2)
System on Chip

Memory

32x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

Drive Bays

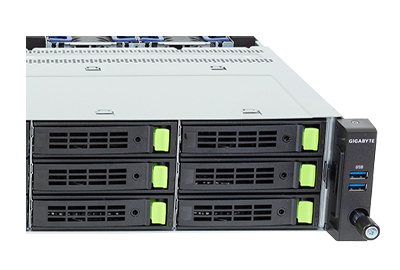

Front Hot-Swap:

12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS4
(4 x NVMe from CPU_0, 8 x NVMe from CPU_1)

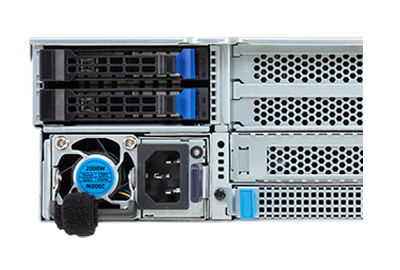

Rear Hot-Swap:

2 x 2.5" Gen5 NVMe/SATA/SAS4*
(SATA from CPU_0, through I/O board)

Internal M.2:

1 x M.2 (2280), PCIe Gen5 x2, from CPU_0, occupied for SATA

Power Supplies

1+1 2000W 80 PLUS Titanium redundant power supplies

Fans

4 x 80x80x38mm (16,000rpm)

I/O

Front I/O

2 x USB 3.2 Gen1 port (Type A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

Rear I/O

I/O Board- CDCR010:

2 x USB 3.2 Gen1 ports (Type A)
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

Backplane I/O

Speed and bandwidth:

Front side - CBP20C7: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s

Expansion Slots

PCIe Cable x 2:

1 x FHHL x16 (Gen5 x16), from CPU_0 (Dual-slot)
1 x FHHL x16 (Gen5 x16), from CPU_1 (Dual-slot)

Riser Card CRS101J:

1 x FHHL x16 (Gen5 x16), from CPU_0 (Single-slot)

Riser Card CRS101K:

1 x FHHL x16 (Gen5 x16), from CPU_1 (Single-slot)

1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
Supported NCSI function

Dimensions

Documentation

Gigabyte R284-S90 Server - Documentation

Gigabyte R284-S90 Server Data Sheet Gigabyte R284-S90 Server QVL Support List Gigabyte R284-S90 Server OS Support List Gigabyte Server Management Console User Guide Gigabyte GSM Server Installation & Configuration Guide Gigabyte GSM Agent Installation & Features Guide Gigabyte Easy BIOS Refresh User Guide
