Additional InformationMemory types supported on the Gigabyte R285-D90 Server include DDR5 registered DIMMs (RDIMM) and Multiplexed Rank DIMMs (MRDIMM). With MRDIMMs installed, memory speeds of up to 12800MT/s, while RDIMMs can provide speeds of up to 8000MT/s. Up front storage is augmented by 4x internal PCIe 4.0 slots that can be outfitted with M.2 drives for additional super-fast storage or to support the OS. The system is powered by dual redundant 3200 80 Plus Titanium power supply units (PSU).
Chassis Configurations

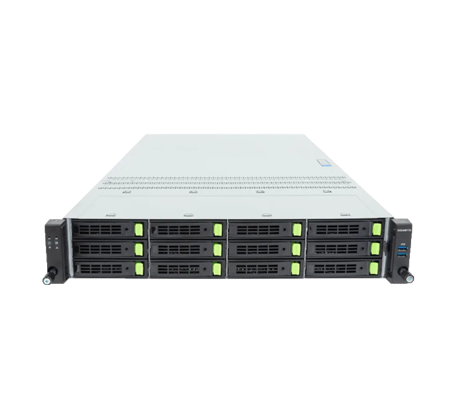

Gigabyte R285-D90-AS1 Server
- Air Cooling, 4x Internal M.2 Drives
Gigabyte R285-D90-LS1 Server
- CPU Direct Liquid Cooling (DLC), 2x Internal M.2 Drives
With 2x Full-height, half-length x16 PCIe Gen6 slots and an OCP 3.0 compatible x16 PCIe Gen6 slot, there are options for additional NICs or storage controllers. This platform features a Datacenter-Ready Secure Control Module for monitoring and troubleshooting. It is a modular hardware card defined by the Open Compute Project (OCP) and separates server management, security, and control features from the main server motherboard.
Explore available configurations for the Gigabyte R285-D90 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- AMD EPYC 9006 SP7 Server processors
- Dual processors, PPT up to 600W
- 2x LGA 7536, Socket SP7
- Motherboard: MD95-FS0
- Chipset: Integrated into SoC
If only 1x CPU is installed, some PCIe or memory functions might be unavailable.
- 32x DIMM slots
- Support DDR5 RDIMM/MRDIMM*
- 16-Channel memory per processor
- RDIMM: Up to 8000 MT/s
- MRDIMM: Up to 12800 MT/s
*MRDIMMs are supported only on select CPU SKUs.

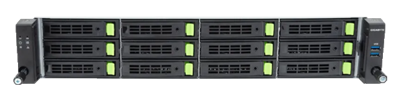

Front hot-swap:
- 12x 3.5"/2.5" Gen5 NVMe/SATA/SAS4*
- 4 x NVMe from CPU_0, 8 x NVMe from CPU_1
Internal M.2:
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x4, from CPU_0
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x4, from CPU_1
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x2, from CPU_0
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x2, from CPU_1
*Storage card(s) required to support SATA and SAS drives.
- 1x FHHL x16 (Gen6 x16), from CPU_0
- 1x FHHL x16 (Gen6 x16), from CPU_1
- 1x OCP NIC 3.0 (Gen6 x16), from CPU_0
- Supports NCSI function
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Power button with LED
- 1x ID button with LED
- 1x NMI button
- 1x Reset button
- 1x Storage activity LED
- 1x System status LED
DC-SCM:
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Mini-DP
- 1x Debug port (Type-C)
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x System status LED
- 2 x 3200 W 80 PLUS Titanium redundant power supplies*
*The system power supply requires C19 power cord.
- 2U
- 438 x 87.5 x 815
