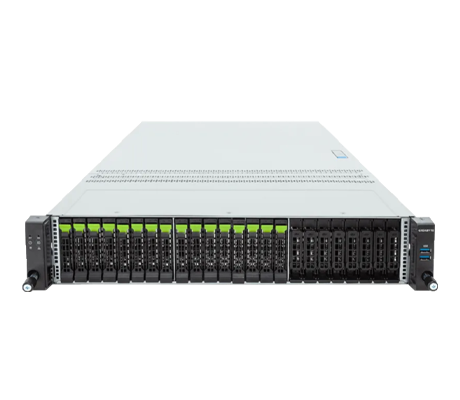

With 32x DDR5 memory module slots, the Gigabyte R285-D91 Server can be outfitted with RDIMMS or Multiplexed Rank DIMMs (MRDIMM). MRDIMMs will provide the fastest memory speed of up to 12800MT/s, while RDIMMs will deliver memory speeds of up to 8000MT/s. Along with the front mounted storage, there are also 4x slots on the system board for NVMe M.2 drives. Powering the system are dual 3200W 80 Plus Titanium power supply units. The Gigabyte R285-D91-AS1 features air cooling.
For expansion, it has a single full-height, half-length Gen6 x16 PCIe slot and an OCP NIC slot also with a x16 link width. The system has a dedicated management LAN port for remote management. It also features a Datacenter Secure Control Module or DCSCM, which is a separate printed circuit board that originated from the Open Compute Project. The DCSCM handles management, security and control of the server combining Baseboard management controller (BMC), root of trust (RoT), and a complex programmable logic device (CPLD) plus flash storage chips.
Explore available configurations for the Gigabyte R285-D91 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- AMD EPYC 9006 SP7 Server processors
- Dual processors, PPT up to 600W
- Socket: 2x LGA 7536
- Chipset: Integrated into SoC
- Motherboard: MD95-FS0
If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- 32 x DIMM slots
- Support DDR5 RDIMM/MRDIMM*
- 16-Channel memory per processor
- RDIMM: Up to 8000 MT/s
- MRDIMM: Up to 12800 MT/s
*MRDIMMs are supported only on select CPU SKUs.
Rear (DC-SCM):
- 1x Management LAN
Integrated in ASPEED AST2700
- 1x Mini-DP

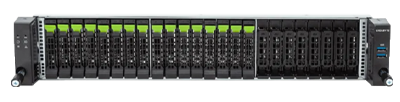

Front hot-swap:
- 16x 2.5" Gen5 NVMe/SATA/SAS4*
- 8x NVMe from CPU_0, 8 x NVMe from CPU_1
Internal M.2:
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x4, from CPU_0
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x4, from CPU_1
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x2, from CPU_0
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x2, from CPU_1
*Storage card(s) required to support SATA and SAS drives.
- 1x FHHL x16 (Gen6 x16), from CPU_1
- 1x OCP NIC 3.0 (Gen6 x16), from CPU_0
- Supports NCSI function
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Power button with LED
- 1x ID button with LED
- 1x NMI button
- 1x Reset button
- 1x Storage activity LED
- 1x System status LED
DC-SCM:
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Mini-DP
- 1x Debug port (Type-C)
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x System status LED
- 2 x 3200 W 80 PLUS Titanium redundant power supplies*
*The system power supply requires C19 power cord.
