Gigabyte S183-SH0 Storage Server

The Gigabyte S183-SH0 Storage Server is an ideal server for storage needs that comes in a smaller footprint. It supports up to 2x 4th or 5th Generation Intel Xeon Scalable Processors and 32x DDR5 DIMM slots. Fully configured, the maximum memory capacity on this system is 8TB. Intel Xeon CPU Max Series are also supported. It includes 32x 9.5mm E1.S NVMe hot-swappable bays paired with 2x M.2 slots on the system board. 3x PCIe Gen5 x16 slots offer expansion options.
Configure

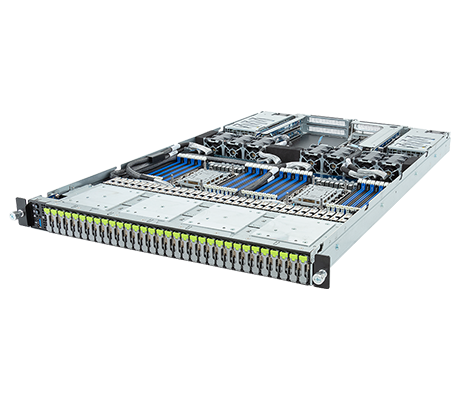

Gigabyte S183-SH0 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte S183-SH0 Storage Server - System Overview

Additional Information

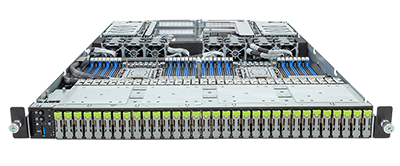

Gigabyte S183-SH0 front detail

Housed in a 1U chassis, the Gigabyte S183-SH0 server can be outfitted with up to 64 cores using 5th Generation Intel Xeon Scalable processors or up to 60x cores using 4th gen CPUs. Each CPU sockets supports 16x DDR5 DIMM slots for a total of 32x on the system board. Depending on the choice of CPU, Memory will run at 5600MT/s using 5th gen or up to 4800MT/s using 4th gen. However, the CPU and memory configuration will impact memory speed, with some CPUs supporting lower memory speeds. Configurations with 2x DIMMs per Channel (DPC) can also reduce the memory speed. On the front of the server, there are 32x E1.S NVMe hot-swappable drive bays. The NVMe storage devices can be RAIDed using the optional Graid SupremeRAID PCIe card, either the SR-1000-FD32 or the next gen SR1010-FD32. Each CPU is connected to a single M.2 drive slot, ideal for fast access storage needs or OS installation.

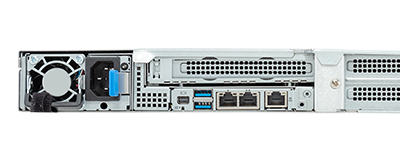

Gigabyte S183-SH0 detail top

There are 2x GbE LAN ports for general network communications, plus a dedicated RJ45 management port to access the integrated Aspeed AST2600 baseboard management controller (BMC). Additional HBAs can be added via the PCIe slots. Management of the system is either through 3rd party software suites or using the Gigabyte Server Console, which is pre-installed and suitable for a single server or small cluster. For more robust management options, Gigabyte offers the Gigabyte Server Manager, for managing multiple servers or large clusters in a large network installation or data center. This system is powered by dual 1600W 80 PLUS Titanium power supplies in a redundant configuration. Regulating temperatures in this server are 7x 40mm fans.

Revisions

Rev. AAV1

  • Dual 1600W 80 PLUS Titanium redundant power supplies

Rev. AAJ1

  • Dual 2000W 80 PLUS Titanium redundant power supplies

Gigabyte S183-SH0 Storage Server - Specifications

Processor - 2 Sockets

  • 5th Generation Intel Xeon Scalable Processors
  • 4th Generation Intel Xeon Scalable Processors
  • Intel Xeon CPU Max Series
  • CPU TDP up to 350W

    • Socket:

  • 2 x LGA 4677 / Socket E

Motherboard

  • MSH3-ES0

Memory

    Memory Slots:

  • 32 x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory architecture
  • RDIMM modules up to 96GB supported
  • 3DS RDIMM modules up to 256GB supported

    • Memory Speed:

  • 5th Gen Intel Xeon: Up to *5600MHz (1DPC), 4400MHz (2DPC)
  • 4th Gen Intel Xeon: Up to 4800MHz (1DPC), 4400MHz (2DPC)
  • Intel Xeon Max Series: Up to 4800MHz (1DPC), 4400MHz (2DPC)

Drive Bays

  • 32 x 9.5mm E1.S NVMe hot-swappable bays
  • 16 x from CPU_0, 16 x from CPU_1

LAN

    Rear Side:

  • 2 x 1Gb/s LAN ports (1 x Intel I350-AM2)
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920 x 1200@60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal:

  • 1 x TPM header
  • 1 x VROC connector
  • 2 x SATA connectors (for SATA DOM)

    • Front:

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID LED

    • TPM:

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Riser Card CRSD013:

  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

    • Riser Card CRSD022:

  • 1 x PCIe x16 (Gen5 x16 or x8) FHHL slot, from CPU_0
  • 1 x PCIe x16 (Gen5 x0 or x8) FHHL slot, from CPU_0

    • M.2:

  • 1 x M.2 slot (CMTP0C0)
  • 1 x M.2 slot (CMTP0C1)
  • Supports 2280/22110 cards

Chassis

    Height: 43.5mm

    Width: 438mm

    Depth: 730mm

Power Supply

  • Dual 1600W 80 PLUS Titanium redundant power supply

System Cooling

  • 7 x 40x40x56mm (32,000rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte S183-SH0 Storage Server - Documentation

Gigabyte S183-SH0 Storage Server Data Sheet Gigabyte S183-SH0 Storage Server User Manual Gigabyte Server Management Console User's Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide
