Gigabyte S453-Z30 Server

Under the hood, the system supports a single AMD EPYC 9004 series processor or can be outfitted with the AMD 3D V-Cache technology alternative. AMD’s 4th generation CPUs are based on a 5nm technology, have up to 128 cores, and the system has a configurable TDP of up to 300W with options for up to 400W under limited thermal conditions. 12-channel memory architecture and 24x DDR5 memory module slots enable 12x DIMMs per channel for up to 6TB of memory. The 38-bay Gigabyte S453-Z30 storage server can be outfitted with SATA/SAS configurations for scale out capacity.

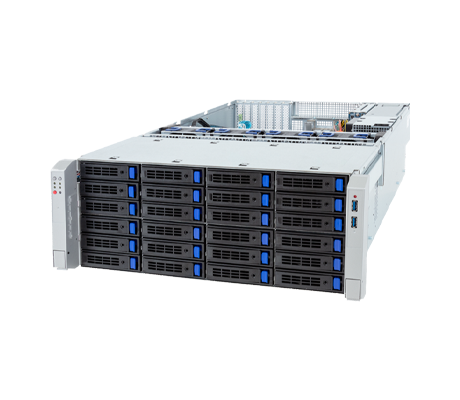

Gigabyte S453-Z30 side view.
Intel Partner Gold AMD Executive Elite System Builder

Gigabyte S453-Z30 Server - System Overview

Designed for storage and networking applications, the S453-Z30 storage server is equipped with 4x low-profile PCIe Gen5 x16 slots, 1x M.2 slot with a PCIe Gen4 x4 interface, and a SAS expander with 12Gb/s transfer speeds. The system is highly flexible to be of use in any industry with storage needs. There are 24x 3.5" SATA/SAS hot-swappable bays on the front panel with an extra 12x 3.5" SATA/SAS hot-swappable bays on the rear. Two more 2.5" SATA/SAS bays adjacent to the PSUs can be deployed as boot drives. An additional SAS card is required for SAS support. Each set of drive bays have a different backplane and can accommodate 3.5” or 2.5” drives. Each slot can be loaded with up to 256GB 3DS RDIMMs for a total of up to 6TB of RAM. Half of this amount is available with 128GB RDIMMs. 2x 10Gb/s LAN ports provide an integrated network connection, along with a dedicated management port. The system is powered by dual 1600W 80PLUS Titanium PSUs.

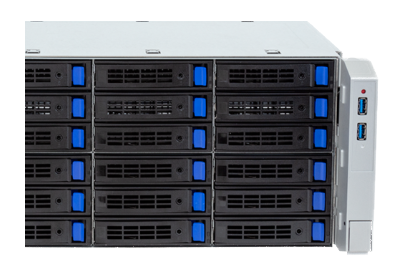

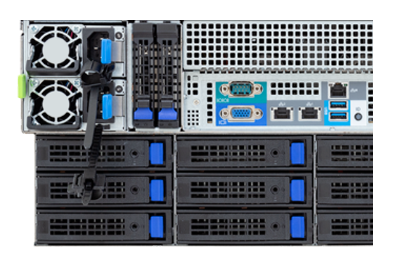

Gigabyte S453-Z30 front drives Gigabyte S453-Z30 rear drives

Gigabyte S453-Z30 Server - Specifications

Processor - 1 Socket

  • AMD EPYC 9004 Series Processors
  • AMD EPYC 9004 series processors with AMD 3D V-Cache Technology
  • Single processor, 5nm architecture
  • Up to 128-cores, 256 threads per processor
  • cTDP up to 300W
    • *cTDP supports up to 400W under limited thermal conditions.

    Chipset:

  • System on Chip

Motherboard

  • MZ33-AR0

Memory

    Memory Slots

  • 24x DDR5 DIMM slots
  • 12-Channel memory architecture

    • Memory Speed

  • Memory speed: Up to 4800 MHz (1DPC), 3600 MHz (2DPC)

    • DIMM Module Sizes

  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported

Drive Bays

    Front Side
  • 24 x 3.5"/2.5" SATA/SAS hot-swappable bays, connected to expander

    • Rear Side

  • 12 x 3.5"/2.5" SATA/SAS hot-swappable bays, connected to expander
  • 2 x 2.5" SATA/SAS bays for boot drives, from onboard connector
    • *Additional SAS card is required for SAS support on boot drives.

    1x M.2 slot:

  • M-Key
  • PCIe Gen4 x4
  • Supports 2280/22110 cards

LAN

  • Rear side: 2 x 10Gb/s BASE-T LAN ports (1 x Broadcom® BCM57416)
  • Supports NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x M.2 slots
  • 1 x TPM header

    • Front

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 1 x COM
  • 4 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Front side - CBPD4O0: SATA 6Gb/s or SAS 12Gb/s
  • Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
  • Rear side - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

  • 4x PCIe x 16 (Gen5 x16) low-profile slots

Chassis

    Enclosure

    Height: 177mm (6.96 in)

    Width: 482.6mm (19 in)

    Depth: 625mm (24.60 in)

Power Supply

  • 2 x 1600W 80 PLUS Titanium redundant power supply

System Fans

  • 4 x 80x80x38mm (16,300rpm)
  • 4 x 80x80x38mm (9,000rpm)

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte S453-Z30 Server - Documentation

Gigabyte S453-Z30 Server Data Sheet Gigabyte S453-Z30 Server User Manual Gigabyte Easy BIOS Refresh Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide
