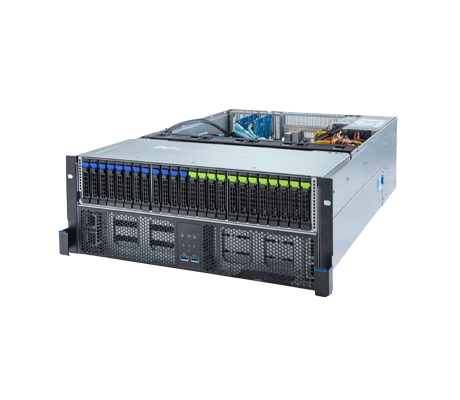

Additional InformationProviding compute on the Gigabyte S472-Z30 Storage Server is a single AMD EPYC 7003/7002-series processor. CPUs with a configurable thermal design power (TDP) threshold of up to 280W can be installed and offer 8-channel memory architecture. 16x DDR5 memory module slots can be outfitted with up to 2x DIMMs per Channel (2DPC). Supported memory includes Registered DIMMs (RDIMM) or Load Reduced DIMMs (LRDIMM).
Basic network communications are handled by 2x integrated 1Gb/s LAN ports, plus a management LAN port. 2x PCIe Gen4 PCIe slots on the system board can support up to 2x NVMe M.2 drives that can be used for additional storage or to boot the system. There are up to 6x PCIe slots with a mix of Gen4 and Gen3. Slots 4x and 6x are occupied for NVMe drives. An OCP 2.0 mezzanine with a PCIe Gen3 x16 connector provides additional options. Powering the system are dual redundant 1600W Platinum power supplies.
Explore available configurations for the Gigabyte S472-Z30 Storage Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- AMD EPYC 7003 Series Processors
- AMD EPYC 7002 Series Processors
- Single processor, cTDP up to 280W
- Motherboard: MZ32-AR1
- Chipset: System on Chip
- Socket: 1x LGA 4094, Socket SP3
- 16x DIMM slots
- Support DDR4 RDIMM/LRDIMM
- 8-Channel memory per processor
- Up to 3200/2933 MT/s*
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.

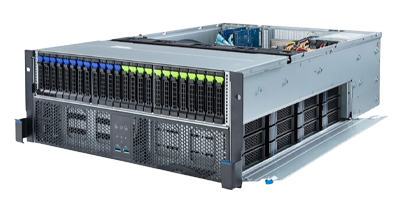

Right & Left hot-swap:
- 24 x 3.5"/2.5" SATA/SAS [1]
Front hot-swap:
- 4 x 2.5" Gen4 NVMe/SATA/SAS [2]
- 8 x 2.5" Gen4 NVMe
- 12 x 2.5" SATA/SAS [2]
Rear hot-swap:
- 2 x 2.5" SATA
Internal M.2:
- 2 x M.2 (2242/2260/2280), PCIe Gen4 x4
[1] Storage card is required to enable SATA and SAS drives.
- Broadcom SAS35x36R expander
- Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
[2] Storage card is required to enable SATA and SAS drives.
- Slot_6: LP x16 (Gen4 x16), occupied for NVMe
- Slot_5: LP x16 (Gen4 x8)
- Slot_4: LP x16 (Gen4 x16), occupied for NVMe
- Slot_3: LP x16 (Gen4 x16)
- Slot_2: LP x8 (Gen3 x0 or x8)
- Slot_1: LP x16 (Gen3 x16 or x8), shared with Slot_2
- 1 x OCP 2.0 mezzanine (Gen3 x16)(Type1, P1, P2, P3, P4)
- Supports NCSI function
Rear:
- 2 x 1Gb/s LAN (1 x Intel I350-AM2)
- Support NCSI function
- 1 x 10/100/1000 Mbps Management LAN
- 2 x USB 3.0 ports (Type-A)
- 1 x Power button with LED
- 1 x ID button with LED
- 1 x Reset button
- 2 x LAN activity LEDs
- 1 x Storage activity LED
- 1 x System status LED
- 3 x USB 3.0 ports (Type-A)
- 1 x VGA port
- 1 x Serial port
- 2 x RJ45 ports
- 1 x MLAN port
- 1 x ID button with LED
Speed and bandwidth:
Front - CBP20O7: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Rear - CBPD020: SATA 6Gb/s
Right - CBPD2C0: SATA 6Gb/s or SAS 12Gb/s
Left - CBPD2C1: SATA 6Gb/s or SAS 12Gb/s
- 1+1 1600W 80 PLUS Platinum redundant power supplies
- ASPEED AST2500 Baseboard Management Controller
- Gigabyte Management Console web interface
- 4U form factor
- 482 x 175 x 696.6 mm
- Net Weight: 28.6 kg
- Gross Weight: 51.5 kg
