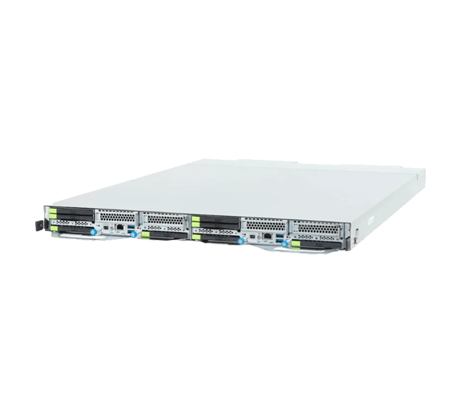

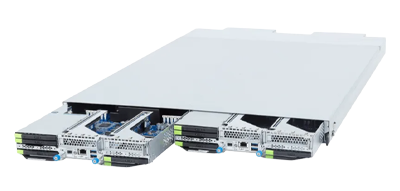

Gigabyte TO16-A82 Server

Constructed to fit an Open Rack v3 (ORV3) standard open-source data center rack, the Gigabyte TO16-A82 ORV3 Server connects to power at the back of the rack via a 48V DC or 54W DC power bus bar. This is a 1OU front-accessible 2-node server that offers a direct liquid cooling (DLC) solution with leak detection. Each node supports 2x intel Xeon 6 6900-series or Xeon 6900E+ CPUs.

Overview

Gigabyte TO16-A82 Server - System Overview

Additional Information

Each CPU delivers 12-channel memory architecture and 12x DDR5 memory module slots for up to 24 DIMM slots per node. Memory supported on the Gigabyte TO16-A82 Server includes Registered DIMMs (RDIMM) and Multiplexed Rank DIMMs or MRDIMMs. With RDIMMs installed memory speeds of up to 6400MT/s using Intel Xeon 6900-series processors are supported or up to 8800MT/s using MRDIMMs. Intel Xeon 6900E+ with efficiency cores (E-cores) enables memory speeds of up to 8000MT/s using RDIMMs. MRDIMMs are only supported using select CPUs and only with those that support performance cores (P-cores).

Storage on the front of the system includes 8x E3.S Gen5 NVMe bays divided between the 2x server nodes. There are also 2x low-profile PCIe Gen5 x16 PCIe slots per node for expansion. The system also includes a management LAN port for remote management of the system. The integrated ASPEED AST2600 microprocessor on the system board provides an IPMI and Redfish compatible baseboard management utility.

Available Configurations

Explore available configurations for the Gigabyte TO16-A82 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte TO16-A82 ORV3 Server TO16-A82-LA01

Specifications

Gigabyte TO16-A82 Server - Specifications

Processor

Intel Xeon 6+ Processors
- Intel Xeon 6900E+ Processors

Intel Xeon 6 Processors
- Intel Xeon 6900-Series Processors

Dual processors per node, TDP up to 500W

Motherboard: MA84-HD3
Socket: 4x LGA 7529, Socket BR
Chipset: System on Chip

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Memory

- 24 x DIMM slots per node
- Support DDR5 RDIMM/MRDIMM*
- 12-Channel memory per processor

Intel Xeon 6900E+:
-RDIMM: Up to 8000MT/s

Intel Xeon 6900-Series:
- RDIMM: Up to 6400MT/s
- MRDIMM: Up to 8800MT/s

*MRDIMMs are supported only on select Intel Xeon 6 processors with P-cores

Storage

Front hot-swap:
- 4x E3.S Gen5 NVMe per node
- 2x NVMe from CPU_0, 2 x NVMe from CPU_1

Expansion Slots

- 2x LP x16 (Gen5 x16) per node, from CPU_0

Front I/O

Per node:
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Mini-DP
- 1x MLAN port
- 1x Power button with LED
- 1x System status LED
- 1x ID LED

Cooling

- Connector Type: UQD06
- Blind mate: Not supported
- Hose length: Not included

- Fans: 4 x 40x40x56mm per node

Requires additional server-to-manifold UQD hoses.

Dimensions (WxHxD, mm)

- 1OU 2-Node
- 537 x 45.2 x 928.2

Documentation

Gigabyte TO16-A82 Server - Documentation

Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation & Features Guide Gigabyte GSM Server Installation & Configuration Guide Gigabyte Redfish API Reference User Guide Gigabyte Server Management Console User Guide Gigabyte TO16-A82 Server Data Sheet
