Gigabyte TO25-S10-AA01 Compute Node

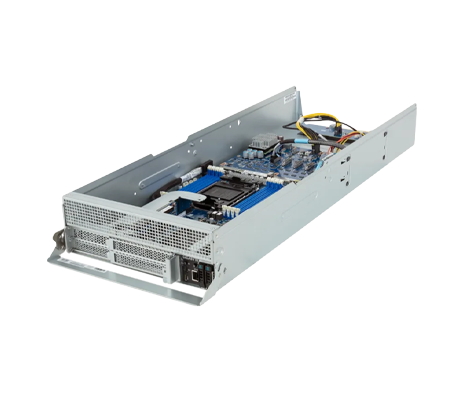

The Gigabyte TO25-S10-AA01 compute node is an ORv3 compliant system in a 2OU 2-node form factor designed for deployment in Open Compute Project racks. It supports a single 5th or 4th Generation Intel Xeon Scalable processor or Intel Xeon CPU Max Series with a TDP of up to 350W. Compatible with the TO25-BT0-AA01 node tray, up to two of these nodes can be installed per tray.

Overview

Gigabyte TO25-S10-AA01 Compute Node - System Overview

Additional Information

The TO25-S10-AA01 compute node features 1x LGA 4677 socket for 5th or 4th Gen Intel Xeon Scalable processors or Xeon CPU Max Series. It is equipped with 8x DDR5 RDIMM slots which can support up to 1TB of memory running at various speeds, depending on the processor installed. Memory speeds reach up to 5600 MT/s with 5th Gen Intel Xeon processors and up to 4800 MT/s with 4th Gen Intel Xeon or Xeon CPU Max Series processors. It includes 2x front hot-swap 9.5mm E1.S Gen4 NVMe bays for primary storage and 1x internal M.2 SATA slot for a 2242, 2260, 2280, or 22110 form factor card. Expansion is provided through riser cards offering 2x FHHL Gen5 x16 slots via the CRSH02D riser and 1x LP Gen5 x16 plus 1x LP Gen5 x8 via the CRSH02E riser.

The ASPEED AST2600 controller allows administrators to manage the system remotely using Gigabyte’s web-based management console. It includes helpful tools like remote screen control (HTML5 KVM), monitoring of temperatures and other sensors, power usage controls, event logging, and secure login options. For power, the system uses a 48V DC bus bar with support up to 1600W.

Available Configurations

Explore available configurations for the Gigabyte TO25-S10-AA01 Compute Node. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte TO25-S10 ORv3 Compute Node TO25-S10-AA01

Specifications

Gigabyte TO25-S10-AA01 Compute Node - Specifications

Processor

- 5th Generation Intel Xeon Scalable Processors
- 4th Generation Intel Xeon Scalable Processors
- Intel Xeon CPU Max Series
- Single processor, TDP up to 350W

Open Rack Version

- ORv3

Compatible Node Tray

- TO25-BT0-AA01

Memory

- 8x DIMM slots
- Support DDR5 RDIMM
- 8-Channel memory per processor

5th Gen Intel Xeon:
- Up to 5600MT/s

4th Gen Intel Xeon:
- Up to 4800MT/s

Intel Xeon Max Series:
- Up to 4800MT/s

LAN

Front:
- 1x 10/100/1000 Mbps Management LAN

Storage

Front hot-swap:
- 2 x 9.5mm E1.S Gen4 NVMe

Internal M.2 (CFPH010):
- 1x M.2 (2242/2260/2280/22110), SATA, from PCH

Expansion Slots

Riser Card CRSH02D:
- 2x FHHL x16 (Gen5 x16)

Riser Card CRSH02E:
- 1x LP x16 (Gen5 x16)
- 1x LP x16 (Gen5 x8)

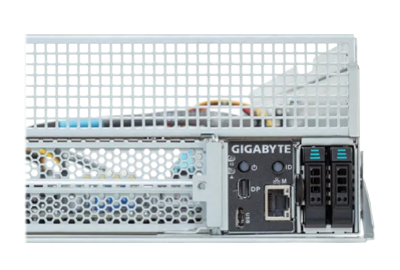

Front I/O

- 1x MLAN port
- 1x ID button with LED

I/O board - CFPH010:
- 1x USB 3.2 Gen1 port (Type-C)
- 1x Mini-DP
- 1x Power button with LED
- 1x System status LED
- 1x ID LED

Management

- ASPEED AST2600 Baseboard Management Controller
- Gigabyte Management Console web interface

OS Compatibility

OS Certifications:
- Windows Server 2022
- Windows Server 2025

No. of Bus Bars

- 1x 48V Bus Bar

Power Supply

- Supports up to 1600W

Dimensions (WxHxD, mm)

- 2OU 2-Node
- 262.7 x 90 x 740

Weight

- Net Weight: 13 kg
- Gross Weight: 15.2 kg
