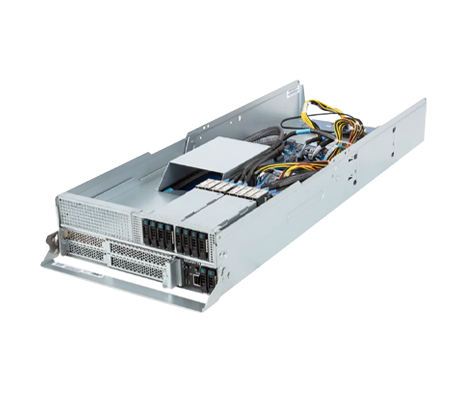

Gigabyte TO25-S11-AA01 Compute Node

The 10-bay Gigabyte TO25-S11-AA01 Compute Node is designed for high-density computing environments serving as a 2OU immersion-ready ORv3 platform. This system features OCP (Open Compute Project) Open Rack Standard specifications with the 2OU form factor and is designed for a 21” OCP rack. It is powered by a single-socket architecture and has a 2TB of memory capacity when all 8x DDR5 DIMM slots are populated.

Overview

Gigabyte TO25-S11-AA01 Compute Node - System Overview

Additional Information

Ten 9.5mm E1.S NVMe hot-swap bays provide primary storage capacity together with 1x internal M.2 slot that supports 2242/2260/2280/22110 cards using SATA interface. Centered on a single 5th or 4th Generation Intel Xeon Scalable processor or Intel Xeon CPU Max Series, the TO25-S11 Compute Node achieves strong performance with up to 64 cores and a TDP of up to 350W. Eight DDR5 RDIMM slots deliver up to 2TB of memory. 5th Gen Intel Xeon processors support up to 5600 MT/s, as opposed to 4800 MT/s for 4th Gen and Max series Intel Xeon processors.

Multiple PCIe Gen5 slots enhance GPU and I/O expansion including 2x FHHL x16 slots and 1x LP x8 slot. A single 1 Gb/s management LAN handles networking needs. Full optimization for single-phase immersion cooling environments ensures compatibility with the NVIDIA AI software stack. The immersion-ready node runs on a 48V DC bus bar power solution and includes ASPEED AST2600 BMC for remote management.

Available Configurations

Explore available configurations for the Gigabyte TO25-S11-AA01 Compute Node. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte TO25-S11 ORv3 Compute Node TO25-S11-AA01

Specifications

Gigabyte TO25-S11-AA01 Compute Node - Specifications

Processor

Single Processor, TDP up to 350W
- 5th Generation Intel Xeon Scalable CPUs
- 4th Generation Xeon Scalable CPUs
- Intel Xeon CPU Max Series

- Motherboard: MS13-HD0

Memory

- 8x DIMM slots
- Support DDR5 RDIMM
- 8-channel memory per processor

5th Gen Intel Xeon:
- Up to 5600 MT/s

4th Gen Intel Xeon:
- Up to 4800 MT/s

Intel Xeon Max Series:
- Up to 4800 MT/s

Storage

Front hot-swap:
- 10x 9.5mm E1.S Gen4 NVMe

Internal M.2 (CFPH010):
- 1x M.2 (2242/2260/2280/22110), SATA, from PCH

LAN

Front:
- 1x 10/100/1000 Mbps Management LAN

Expansion Slots

Riser Card CRSH02D:
- 2x FHHL x16 (Gen5 x16)

Riser Card CRSH02E:
- 1x LP x16 (Gen5 x16), occupied for E1.S
- 1x LP x16 (Gen5 x8)

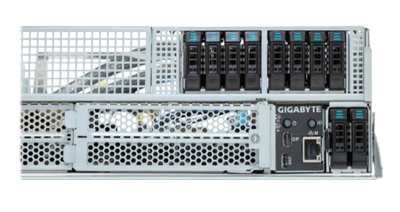

Front I/O

- 1x MLAN
- 1x ID button with LED

I/O board - CFPH010:
- 1x Usb 3.2 Gen1 port (Type-C)
- 1x Mini-DP
- 1x Power button with LED
- 1x System status LED
- 1x ID LED

Power Supply

- Supports up to 1600W

Management

- ASPEED AST2600 Baseboard Management Controller
- Gigabyte Management Console Web Interface

OS Compatibility

OS Certifications:
- Windows Server 2022
- Windows Server 2025

Dimensions (WxHxD, mm)

- 2OU 2-Node
- 262.7 x 90 x 740

- Open Rack Version (ORv3)

Weight

- Net Weight: 13kg
- Gross Weight: 15.2kg
