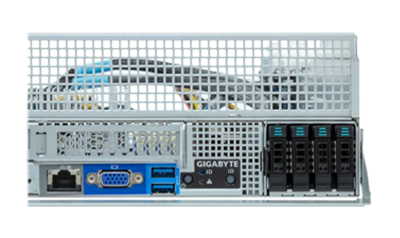

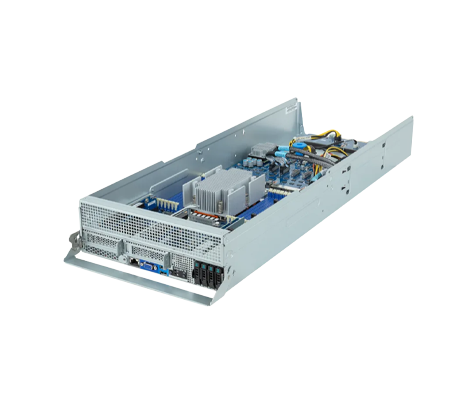

Additional InformationA single AMD EPYC 9005 or 9004 Series processor powers the 2OU TO25-Z10-AA01, with a maximum cTDP up to 300W. It supports 12-channel DDR5 memory through 12x RDIMM slots with different memory speeds depending on the CPU installed. With 9005 series processors, speeds reach up to 6400 MT/s as opposed to a maximum of 4800 MT/s with 9004 series processors. On the front panel, there are 4x 9.5mm E1.S Gen4 NVMe hot-swap bays, plus an optional internal M.2 PCIe Gen4 x4 slot for either a 2280 or 22110 card.
The system offers 2x low-profile PCIe Gen5 x16 slots via riser cards and 1x OCP NIC 3.0 PCIe Gen5 x16 slot, which can all be accessed through the front panel. System management uses the ASPEED AST2600 baseboard management controller with the Gigabyte Management Console. The node supports up to 1600W through the 48V DC bus bar solution running along the rear of the rack. It follows OCP Open Rack V3 specifications and is compatible with the Gigabyte TO25-BTO and TO25-BT1 tray chassis.
Explore available configurations for the Gigabyte TO25-Z10-AA01 Compute Node. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- AMD EPYC 9005 Series Processors
- AMD EPYC 9004 Series Processors
- Single processor, cTDP up to 300W
- Motherboard: MZ13-HD0
*cTDP supported up to 400W under limited thermal conditions.
- ORv3
- 12x DIMM slots
- DDR5 memory supported
- 12-Channel memory per processor
AMD EPYC 9005:
- RDIMM: Up to 6400 MT/s
AMD EPYC 9004:
- RDIMM: Up to 4800 MT/s
Front hot-swap:
- 4x 9.5mm E1.S Gen4 NVMe
Optional internal M.2 (CMTP192):
- 1x M.2 (2280/22110), PCIe Gen4 x4
Front:
- 1x 10/100/1000 Mbps Management LAN
Riser Card CRSH01Q:
- 1x LP x16 (Gen5 x16)
Riser Card CRSH01R:
- 1x LP x16 (Gen5 x16)
1x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x VGA port
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x System status LED
- 1x ID LED
- ASPEED AST2600 Baseboard Management Controller
- Gigabyte Management Console Web Interface
- Supports up to 1600W
- 1x 48V Bus Bar
- 2OU 2-Node
- 265.1 x 90.7 x 742.9
- Net Weight: 13kg
- Gross Weight: 15.2kg
