Gigabyte TO25-ZM0 Server

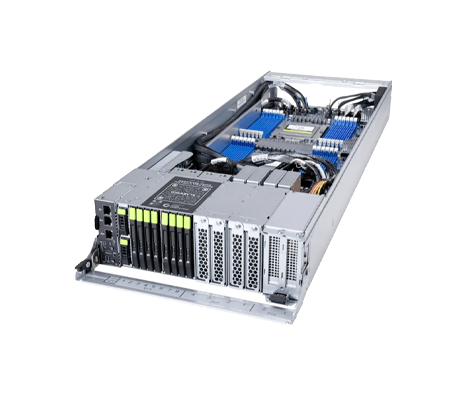

Offering dual AMD EPYC 9005-series processors, the Gigabyte TO25-ZM0-AA01 ORV3 compute node is designed for high-density Datacenter applications. Storage along the front of the chassis includes 8x E3.S Gen5 NVMe bays, plus 2x E1.S Gen3 NVMe drive bays. As an ORV3 server, it’s designed for Open Compute Project (OCP) racks with integrated power provided by a 48V to 54V DC bus bar power solution with a blind-connect.

Overview

Gigabyte TO25-ZM0 Server - System Overview

Additional Information

Supported CPUs are limited to a 400W thermal design power (TDP) threshold. With 24x memory module slots and 12-channel memory architecture, per processor, each memory module resides in its own memory channel for maximum performance at up to 6400MT/s. The 2OU Gigabyte TO25-ZM0-AA01 ORV3 compute node supports Registered DIMMs (RDIMM). For basic network communications, there are 2x 1Gb/s LAN ports plus a dedicated management LAN port. Those LAN ports can also provide a cross-node data link.

For expansion, the system includes 2x low-profile PCIe 5.0 x16 slots, plus 4x OCP NIC 3.0 SFF PCIe 5.0 slots with a x16 connector width. This node is hosted in the TO25-BT1-AA01 chassis, which can hold two of these nodes.

Available Configurations

Explore available configurations for the Gigabyte TO25-ZM0 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte TO25-ZM0 ORV3 Compute Node TO25-ZM0-AA01

Specifications

Gigabyte TO25-ZM0 Server - Specifications

Processor

- AMD EPYC 9005 Series Processors
- Dual processor, cTDP up to 400W
- Motherboard: MZM3-OP0

Note: If only 1 CPU is installed, some PCIe or memory functions might be available.

Memory

- 24x DIMM slots
- Support DDR5 RDIMM
- 12-Channel memory per processor
- Up to 6400 MT/s

Storage

Front hot-swap:
- 8 x E3.S Gen5 NVMe
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- 2 x E1.S Gen3 NVMe
- (PCIe Gen3 x4 shared, from SAS3808N)

LAN

Front (I/O board):
- 2x 1Gb/s LAN (1 x Intel I350-AM2)
- 1x 10/100/1000 Mb/s Management LAN

Rear:
- 2x 1 Gb/s LAN (1 x Intel I350-AM2) (Cross-node data link)

Expansion Slots

PCIe Cable x2:
- 1x LP x16 (Gen5 x16), from CPU_0
- 1x LP x16 (Gen5 x16), from CPU_1

OCP Module x4:
- 2x OCP NIC 3.0 SFF (Gen5 x16), from CPU_0
- OCP_1 supports NCSI function
- 2x OCP NIC 3.0 SFF (Gen5 x16), from CPU_1

Front I/O

I/O Board:
- 1 x USB 3.2 Gen1 port (Type-C)
- 1 x Micro USB port for BMC UART
- 1 x Mini-DP
- 2 x RJ45 ports
- 1 x MLAN port
- 1 x Power button with LED
- 1 x ID button with LED
- 1 x BMC reset button
- 1 x System status LED

Power Supply

- 48 V to 54 V DC bus bar power solution

Dimensions

- 2OU 2-Node
- 263 x 91.2 x 755 (WxHxD, mm)

Documentation

Gigabyte TO25-ZM0 Server - Documentation

Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation & Features Guide Gigabyte GSM Server Installation & Configuration Guide Gigabyte Redfish API Reference User Guide Gigabyte Server Management Console User Guide Gigabyte TO25-ZM0 Server Data Sheet Gigabyte TO25-ZM0 Server QVL Support List Gigabyte TO25-ZM0 Server User Manual
