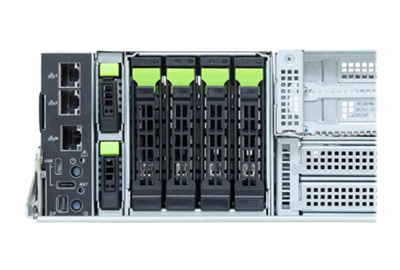

Additional InformationThis system is compatible with the Gigabyte TO25-BT1-AA01 node tray, which can support up to 2x of these server nodes. AMD EPYC 9005 and 9004 series processors provide 12-channel memory architecture. Up to 1.5TB of memory is provided when all 12x RDIMM slots are populated. When combined with AMD 9005 series processors, speeds reach up to 6400 MT/s as opposed to a maximum of 4800 MT/s with 9004 series processors. On the front panel, the TO25-ZU4-AA01 hosts 2x 9.5mm E1.S Gen5 NVMe hot-swap bays plus 4x 2.5" Gen5 NVMe/SATA/SAS4 hot-swap bays. Note that a storage card is required to support SATA and SAS drives.
The system offers 2x FHFL PCIe Gen5 x16 slots and 2x OCP NIC 3.0 PCIe Gen5 x16 slots, which can all be accessed through the front panel. System management is provided by the ASPEED AST2600 baseboard management controller paired with the Gigabyte Management Console. This web-based interface offers HTML5 KVM, real-time sensor monitoring for voltage, temperature, CPU status, sensor history data and more. The node supports a 48V to 54V DC bus bar power solution where power is supplied to each server node by a bus-bar system running along the rear of the rack.
Explore available configurations for the Gigabyte TO25-ZU4-AA01 Compute Node. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- AMD EPYC 9005 Series Processors
- AMD EPYC 9004 Series Processors
- Single processor, cTDP up to 500W
- Motherboard: MZU3-MG0
- TO25-BT1-AA01
- ORv3
- 12x DIMM slots
- Support DDR5 RDIMM
- 12-Channel memory per processor
AMD EPYC 9005:
- Up to 6400 MT/s
AMD EPYC 9004:
- Up to 4800 MT/s
Front hot-swap:
- 2x 9.5mm E1.S Gen5 NVMe
- 4x 2.5" Gen5 NVMe/SATA/SAS4
*Storage card is required to support SATA and SAS drives
Front (I/O board - COFPA00):
- 2x 10Gb/s LAN (1 x Intel X710-AT2)
- Support NCSI function
- 1x 10/100/1000 Mbps Management LAN
PCIe Cable x 2:
- 2x FHFL x16 (Gen5 x16)
- 2x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function
- 1x USB 3.2 Gen1 port (Type-C)
- 1x Micro USB port for BMC UART
- 1x Mini-DP
- 2x RJ45 ports
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x Reset button
- 1x System status LED
- ASPEED AST2600 Baseboard Management Controller
- Gigabyte Management Console Web Interface
- 2OU 2-node
- 258 x 86 x 771
- 48V to 54V DC bus bar power solution
