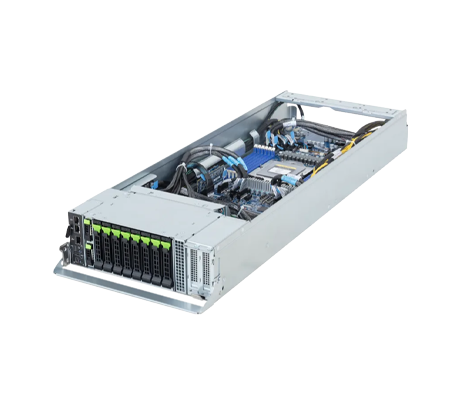

Gigabyte TO25-ZU5 Compute Node

Up to 2x Gigabyte TO25-ZU5-AA01 ORV3 Compute Nodes can be installed in the TO25-BT1-AA01 node tray. Each node offers a single AMD EPYC 9005 or 9004-series processors with a configurable thermal design power threshold of up to 500W with a 25-degree Celsius ambient temperature.

Overview

Gigabyte TO25-ZU5 Compute Node - System Overview

Additional Information

Offering an Open RackV3 specification, the Gigabyte TO25-ZU5-AA01 ORV3 Compute Node is designed for an OCP rack with integrated power from a 48V to 54V DC bus bar running along the rear of the rack. The node also has 8x hot-swap Gen5 NVMe/SATA/SAS-4 bays, plus 2x E1.S Gen5 NVMe hot-swap bays. If SAS drives are installed a storage controller is required. With 12-channel memory architecture, each node has 12x DDR5 registered DIMM slots.

Basic networking is provided by 2x 10Gb/s LAN ports. For expansion there are 2x low profile PCIe Gen5 x16 slots. ORV3 compliant solutions provide better thermal optimization along with lower power consumption and better power efficiency. Other benefits include easier maintenance from the cold aisle, and less downtime from component failure.

Available Configurations

Explore available configurations for the Gigabyte TO25-ZU5 Compute Node. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte TO25-ZU5 ORV3 Compute Node TO25-ZU5-AA01

Specifications

Gigabyte TO25-ZU5 Compute Node - Specifications

Processor

- AMD EPYC 9005 Series Processors
- AMD EPYC 9004 Series Processors
- Single Processor, cTDP up to 400W
- At 25°C ambient, cTDP up to 500W
- Motherboard: MZU3-MG0

Compatible Node Tray

- TO25-BT1-AA01

Memory

- 12x DIMM slots
- Support DDR5 RDIMM
- 12-Channel memory per processor

AMD EPYC 9005: Up to 6400 MT/s

AMD EPYC 9004: Up to 4800 MT/s

Storage

Front hot-swap:
- 2x 9.5mm E1.S Gen5 NVMe
- 8x 2.5" Gen5 NVMe/SATA/SAS4*

*Storage card is required to support SATA and SAS drives.

Expansion Slots

PCIe Cable x2:
- 2x LP x16 (Gen5 x16)

LAN

Front (I/O board- COFPA00):
- 2x 10Gb/s LAN (1 x Intel X710-AT2)
- Support NCSI function
- 1x 10/100/1000 Mbps Management LAN

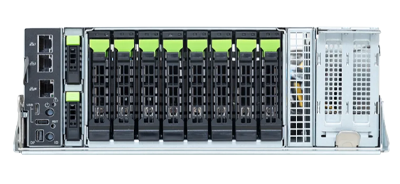

Front I/O

- 1 x USB 3.2 Gen1 port (Type-C)
- 1 x Micro USB port for BMC UART
- 1 x Mini-DP
- 2 x RJ45 ports
- 1 x MLAN port
- 1 x Power button with LED
- 1 x ID button with LED
- 1 x Reset button
- 1 x System status LED

Management

- ASPEED AST2600 Baseboard Management Controller
- Gigabyte Management Console web interface

Power Supply

- 48V to 54V DC bus bar power solution

Dimensions (WxHxD, mm)

- 2OU 2-node
- 258 x 86 x 771 mm
