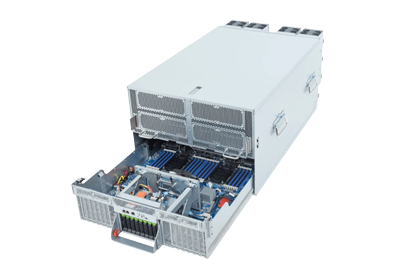

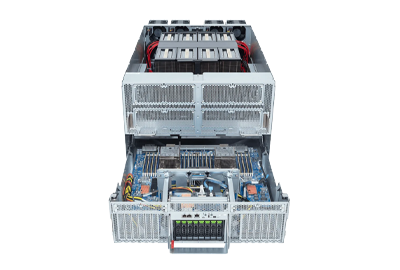

Additional InformationThe TO86-SD1-AA05 delivers 1.8 TB/s GPU-to-GPU bandwidth via NVLink and NVSwitch. The server utilizes a top-loading design for the 8x SXM GPUs, while the rest of the components reside on the motherboard accessed via a bottom pull-out tray. It is equipped with 32x DDR5 RDIMM slots and compatible with Multiplexed Rank DIMMs or MRDIMMs. Featuring 8-channel memory architecture per processor, the system can be outfitted with a maximum memory of up to 4TB. Memory speeds reach up to 6400 MT/s (RDIMM 1DPC), 5200 MT/s (RDIMM 2DPC), and up to 8000 MT/s with MRDIMM (1DPC on select processors). MRDIMMs are supported only on select Intel Xeon 6 processors with P-cores and only in a 1DPC configuration.
The server includes 8x 2.5" Gen5 NVMe hot-swap bays on the front panel and 1x internal M.2 (2280/22110) PCIe Gen5 x4 slot from CPU_1. It is optimized for air-cooled, high-density GPU deployments in ORv3 environments. This platform leverages advanced PCIe switching and riser configurations to maximize GPU performance and interconnect bandwidth. For super-fast network communications and RDMA applications, the system can support NVIDIA BlueField-3 DPUs and NVIDIA ConnectX-7 NICs. The system supports 12 PCIe x16 Gen5 slots.
8 x FHHL x16 (Gen5 x16), from PEX89104
4 x FHHL x16 (Gen5 x16), from PEX89048
Powered by the ASPEED AST2600 BMC, the TO86-SD1-AA05 offers comprehensive remote management through the Gigabyte Management Console. It supports HTML5 KVM remote control, real-time sensor monitoring, advanced power management, event logging, and flexible user authentication. The system employs a 48V DC bus bar architecture built to handle demanding GPU power requirements.
Explore available configurations for the Gigabyte TO86-SD1-AA05 GPU Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
Intel Xeon 6 Processors
- Intel Xeon 6700-Series Processors
- Intel Xeon 6500-Series Processors
- Dual Processors, TDP up to 350W
- 2x LGA 4710
- Socket E2
- System on Chip
*Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- 32 x DIMM slots
- Support DDR5 RDIMM/MRDIMM
- 8-Channel memory per processor
- RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
- MRDIMM: Up to 8000 MT/s
*MRDIMMs are supported only on select Intel Xeon 6 CPUs with P-cores and only in a 1DPC configuration.
Front hot-swap:
- 8x 2.5" Gen5 NVMe
- (NVMe from PEX89104)
Internal M.2:
- 1x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1
- NVIDIA HGX B200 with 8 x SXM GPUs
- 1.8 TB/s GPU-to-GPU bandwidth with NVIDIA NVLink and NVLink Switch
- Compatible with NVIDIA BlueField-3 DPUs and NVIDIA ConnectX-7 NICs
Front (I/O board):
- 2 x 10 Gb/s LAN (1 x Intel X710-AT2)
- Support NCSI function
- 1x 10/100/1000 Mb/s Management LAN
- 8 x FHHL x16 (Gen5 x16), from PEX89104
- 4 x FHHL x16 (Gen5 x16), from PEX89048
I/O board:
- 1 x USB 3.2 Gen1 port (Type-C)
- 1x Micro USB port for BMC UART
- 1x Mini-DP
- 2 x RJ45 ports
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x Reset button
- 1x System status LED
- ASPEED AST2600 Baseboard Management Controller
- Gigabyte Management Console web interface
- 8OU
- 537 x 380.5 x 853
