Additional InformationCompatible processors can have a thermal design power range of up to 350W. With 8-channel memory architecture, each processor supports 16x memory module slots for 2x DIMMs per Channel at full capacity. Memory supported on the Gigabyte XLS4-SX2 GPU Server includes liquid-cooled DDR5 Registered DIMMs (RDIMM) and Multiplexed Rank DIMMs (MRDIMM). RDIMMs will provide memory speeds of up to 8000MT/s, while MRDIMMs will deliver up to 12800MT/s. The liquid-cooled NVIDIA RTX PRO 6000 Blackwell Server Edition GPUs have a connected SuperNIC switch.
Chassis Configurations

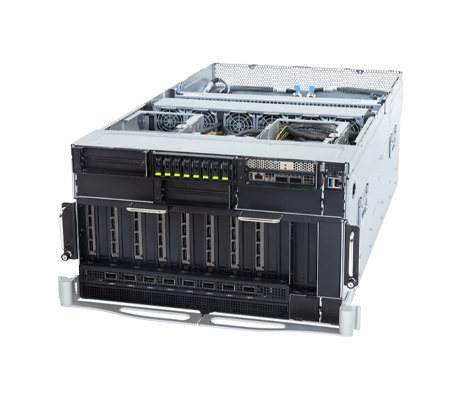

Gigabyte XLS4-SX2-LAS1 GPU Server
- CPU, GPU, and memory Direct Liquid Cooling (DLC)
8x Quad small form-factor pluggable ports from the ConnectX-8 SuperNIC switch board deliver data transmission speeds of up to 400Gb/s InfiniBand or Ethernet, for GPU networking. Providing options for expansion, the system has 2x full-height, full-length PCIe gen5 PCIe slots. For super-fast network connections, the system can be configured with an NVIDIA BlueField-3 DPU. 8x Hot-swap storage bays along the front of the chassis can be outfitted with E1.S Gen5 NVMe drives. There are also 2x PCIe Gen5 x4 slots on the system board for use with NVMe M.2 drive types that can be used to support the OS. Powering the system are 6x3200W 80 PLUS Titanium redundant power supply units (PSU).
Intel Xeon 6 Processors:
- Intel Xeon 6700-Series CPUs
- Intel Xeon 6500-Series CPUs
- Dual processors, TDP up to 350W
- Motherboard: MSX4-MG2
- 2x LGA 4710, Socket E2
- Chipset: System on Chip
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- 32 x DIMM slots
- Support DDR5 RDIMM/MRDIMM*
- 8-Channel memory per processor
- RDIMM: Up to 6400 MT/s (1DPC), 6000 MT/s (2DPC)
- MRDIMM: Up to 8000 MT/s
*MRDIMMs are supported only on select Intel Xeon 6 CPUs with P-cores and only in a 1DPC configuration.
Front (ConnectX-8 SuperNIC switch board):
- 8 x QSFP ports (400 Gb/s InfiniBand/Ethernet, for GPU networking)
Front (I/O board):
- 1x 10/100/1000 Mb/s Management LAN
Front hot-swap:
- 8x E1.S Gen5 NVMe
- 4x NVMe from CPU_0, 4 x NVMe from CPU_1
Internal M.2 (M.2 expansion card):
- 2x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0
ConnectX-8 SuperNIC switch board:
- 8x NVIDIA RTX PRO 6000 Blackwell Server Edition GPUs
PCIe Cable x 3:
- 1x NVIDIA BlueField-3 DPU, from CPU_1
- 1x FHFL x16 (Gen5 x16), from CPU_0
- 1x FHFL x16 (Gen5 x16), from CPU_1
ConnectX-8 SuperNIC switch board:
- 8x QSFP ports
I/O board:
- 1x USB 3.2 Gen1 port (Type-A)
- 1x Mini-DP
- 1x Debug port (Micro USB)
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x Reset button
- N/A
- 6x 3200 W 80 PLUS Titanium redundant power supplies*
*The system power supply requires C19 power cord
- 6U rackmount
- 438 x 264 x 805
- Net Weight: 108 kg
- Gross Weight: 117 kg
