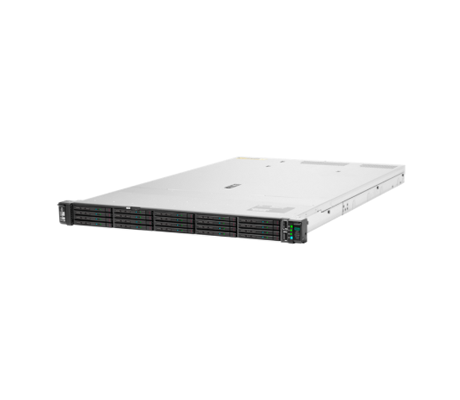

The HPE Alletra Storage Server 4110 is a compact, high-performance 1U platform built for demanding workloads such as machine learning and hyper-converged infrastructure. It features dual 4th or 5th generation Intel Xeon Scalable processors, each with up to 48 cores and a maximum thermal design power (TDP) of 350W. It supports up to 6TB of DDR5 memory operating at speeds up to 5600MT/s. Despite its small form factor, up to 20x front-accessible NVMe SSDs in either Enterprise & Data Center SSD Form Factor (EDSFF) or Small Form Factor (SFF) can be installed, offering over 300TB of raw storage capacity.
HPE Alletra Storage Server 4110 - System Overview
Additional Information
The HPE Alletra Storage Server 4110 supports up to 6TB of memory when all 24x DDR5 slots are filled with 256GB RDIMMs. It accommodates a single GPU or FPGA in a full-height, half-length expansion slot with a power consumption of under 75W. Compatible accelerators include the NVIDIA A2 16GB PCIe Non-CEC and the NVIDIA L4 24GB PCIe cards. The server features 2x full-height, half-length PCIe Gen5 slots accessible via risers, as well as 2x OCP 3.0 slots for flexible expansion options. Additionally, the server provides options for internal dual M.2 NVMe SSDs or direct-attached dual M.2 NVMe SSDs, further enhancing its flexibility, density, and performance.
The Alletra 4110 server is powered by dual HPE Flex Slot power supplies, each providing up to 2200W. For system management, HPE Integrated Lights-Out 6 (iLO6) software allows for secure configuration, monitoring, and updates both locally and remotely. HPE OneView offers an enhanced, comprehensive view of your entire infrastructure and provides advanced features to simplify IT operations from a single dashboard. The server includes Standard iLO and Standard OneView, which can be downloaded at no additional cost. Advanced versions of iLO and OneView are available with additional licensing.
HPE Alletra Storage Server 4110 - Specifications
Processor- Dual Socket
2x 4th or 5th generation Intel Xeon Scalable processors
Up to 48 cores per CPU
Memory
24x DIMM Slots
HPE DDR5 Smart Memory
Maximum Memory: Up to 6TB (24x 256GB RDIMM @4800MT/s)
Maximum Memory: Up to 3TB (24x 128GB RDIMM @5600MT/s)
Storage
20x E3.S 1T NVMe or;
20x SFF NVMe
Storage Controller
Optional Intel Virtual RAID on CPU (Intel VROC)
Network Controller
Up to 2x PCIe full-height half-length and 2x OCP 3.0 controllers, up to 200 Gb/s 1port (consume expansion slots)
Expansion Slots
Up to 2x full-height half-length PCIe Gen5 slots
2x OCP 3.0 slots
System Fan Features
7x hot-pluggable system fan modules with N+1 rotor redundancy
Power Supplies
2x HPE Flexible Slot (Flex Slot) Power Supplies of up to 2200W per Power Supply
