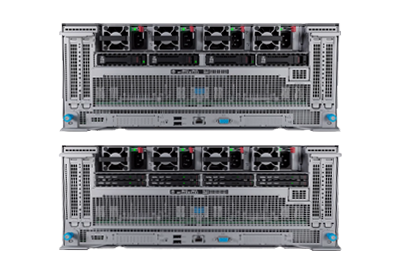

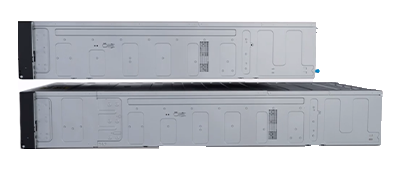

Engineered for high-density hybrid bulk storage, the HPE Alletra Storage Server 4140 delivers the latest technology in a compact 4U chassis. This system is available in two configurations: The base chassis and the expanded chassis. The base chassis supports up to 60x 3.5” drive bays, with an optional rear drive cage that accommodates up to 8x EDSFF or 4x NVMe 2.5” SSDs. The expanded chassis offers increased storage with support for up to 92x 3.5” drive bays. Similar to the base chassis, it also includes an optional rear drive cage for up to 8x EDSFF or 4x NVMe 2.5” SSDs.
HPE Alletra Storage Server 4140 - System Overview
Additional Information
Depending on the drives installed, the system can support up to 1,840TB of raw capacity using SAS or SATA storage devices. Compatible with dual 4th or 5th generation Intel Xeon Scalable processors supporting up to 32 cores each and a maximum TDP of 205W, the Alletra Storage Server 4140 can be tailored to meet diverse workload demands. With up to 12x DDR5 RDIMMs per processor, the system can support a total of 24x memory modules. It offers a maximum capacity of 1.5TB of memory operating at speeds up to 5200MT/s.
Up to 4x full-height half-length PCIe Gen5 slots and 2x OCP 3.0 slots offer opportunities for expansion, but only with dual processors installed. 4x HPE Flexible Slot (Flex Slot) PSUs are each capable of providing up to 2200W of power. Optional hardware configurations include mirrored dual M.2 NVMe SSDs or directly attached dual M.2 NVMe SSDs to boot the system and further enhance system flexibility and performance.
HPE Alletra Storage Server 4140 - Specifications
Processor- Dual Socket
2x 4th or 5th generation Intel Xeon Scalable processors
Up to 48 cores
Memory
24x DIMM Slots
12x DIMM slots per processor, 8x channels per processor, 2-2-1-1 deployment
HPE DDR5 Smart Memory
24 x 64 GB RDIMM @ 5200 or 4800 MT/s
Storage
Front Drive Bays
68x LFF SAS/SATA drives or;
92x LFF SAS/SATA drives
Rear Drive Bays
Optional 8x E3.S 1Y Gen5 NVMe or;
Optional 4x SFF Gen4 NVMe U.3 SSDs
Storage Controller
1x or 2x 32-port with 8GB cache (consume expansion slots) and optional Intel Virtual RAID on CPU (Intel VROC)
Network Controller
Up to 2x PCIe full-height half-length and 2x OCP 3.0 controllers, up to 100Gb/s 2-port (consume expansion slots)
Expansion Slots
Up to 4x full-height half-length PCIe Gen5 slots
2x OCP 3.0 slots
System Fan Features
6x hot-pluggable system quad-fan modules with N+1 rotor redundancy
Power Supplies
4x HPE Flexible Slot (Flex Slot) Power Supplies of up to 2200W per Power Supply
Operating System
Microsoft Windows Server 2019
Microsoft Windows Server 2022
Red Hat Enterprise Linux (RHEL) 8.6
Red Hat Enterprise Linux (RHEL) 9.0
SUSE Linux Enterprise Server (SLES) 15 SP4
VMware 7.0 U3
VMware 8.0
Canonical Ubuntu 20.04 and 22.04
Management
HPE iLO
HPE OneView
Dimensions- 4U Rack
Height x Width x Depth
68x LFF Standard Rack Depth
6.92 x 17.64 x 33.90 in (175.80 x 448.00 x 860.94 mm)
92x LFF Extended Rack Depth
6.92 x 17.64 x 42.40 in (175.80 x 448.00 x 1076.94 mm)
