HPE Alletra Storage Server 4140

Engineered for high-density hybrid bulk storage, the HPE Alletra Storage Server 4140 delivers the latest technology in a compact 4U chassis. This system is available in two configurations: The base chassis and the expanded chassis. The base chassis supports up to 60x 3.5” drive bays, with an optional rear drive cage that accommodates up to 8x EDSFF or 4x NVMe 2.5” SSDs. The expanded chassis offers increased storage with support for up to 92x 3.5” drive bays. Similar to the base chassis, it also includes an optional rear drive cage for up to 8x EDSFF or 4x NVMe 2.5” SSDs.

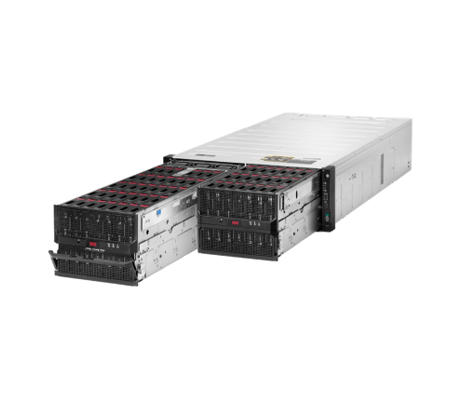

HPE Alletra Storage Server 4140 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

HPE Alletra Storage Server 4140 - System Overview

Additional Information

HPE Alletra Storage Server 4140 side view depths

Depending on the drives installed, the system can support up to 1,840TB of raw capacity using SAS or SATA storage devices. Compatible with dual 4th or 5th generation Intel Xeon Scalable processors supporting up to 32 cores each and a maximum TDP of 205W, the Alletra Storage Server 4140 can be tailored to meet diverse workload demands. With up to 12x DDR5 RDIMMs per processor, the system can support a total of 24x memory modules. It offers a maximum capacity of 1.5TB of memory operating at speeds up to 5200MT/s.

HPE Alletra Storage Server 4140 rear view options

Up to 4x full-height half-length PCIe Gen5 slots and 2x OCP 3.0 slots offer opportunities for expansion, but only with dual processors installed. 4x HPE Flexible Slot (Flex Slot) PSUs are each capable of providing up to 2200W of power. Optional hardware configurations include mirrored dual M.2 NVMe SSDs or directly attached dual M.2 NVMe SSDs to boot the system and further enhance system flexibility and performance.

HPE Alletra Storage Server 4140 - Specifications

Processor- Dual Socket

  • 2x 4th or 5th generation Intel Xeon Scalable processors
  • Up to 48 cores

Memory

  • 24x DIMM Slots
  • 12x DIMM slots per processor, 8x channels per processor, 2-2-1-1 deployment
  • HPE DDR5 Smart Memory
  • 24 x 64 GB RDIMM @ 5200 or 4800 MT/s

Storage

    Front Drive Bays

  • 68x LFF SAS/SATA drives or;
  • 92x LFF SAS/SATA drives

    • Rear Drive Bays

  • Optional 8x E3.S 1Y Gen5 NVMe or;
  • Optional 4x SFF Gen4 NVMe U.3 SSDs

Storage Controller

  • 1x or 2x 32-port with 8GB cache (consume expansion slots) and optional Intel Virtual RAID on CPU (Intel VROC)

Network Controller

  • Up to 2x PCIe full-height half-length and 2x OCP 3.0 controllers, up to 100Gb/s 2-port (consume expansion slots)

Expansion Slots

  • Up to 4x full-height half-length PCIe Gen5 slots
  • 2x OCP 3.0 slots

System Fan Features

  • 6x hot-pluggable system quad-fan modules with N+1 rotor redundancy

Power Supplies

  • 4x HPE Flexible Slot (Flex Slot) Power Supplies of up to 2200W per Power Supply

Operating System

  • Microsoft Windows Server 2019
  • Microsoft Windows Server 2022
  • Red Hat Enterprise Linux (RHEL) 8.6
  • Red Hat Enterprise Linux (RHEL) 9.0
  • SUSE Linux Enterprise Server (SLES) 15 SP4
  • VMware 7.0 U3
  • VMware 8.0
  • Canonical Ubuntu 20.04 and 22.04

Management

  • HPE iLO
  • HPE OneView

Dimensions- 4U Rack

    Height x Width x Depth
    68x LFF Standard Rack Depth
  • 6.92 x 17.64 x 33.90 in (175.80 x 448.00 x 860.94 mm)
    • 92x LFF Extended Rack Depth
  • 6.92 x 17.64 x 42.40 in (175.80 x 448.00 x 1076.94 mm)

    • Weight (approximate)
    68x LFF Standard Rack Depth
  • 259.11 lb (117.53 kg)
    • 92x LFF Extended Rack Depth
  • 325.42 lb (147.47 kg)
