Optimized for a range of environments where space and performance are key, the HPE ProLiant DL20 Gen11 server is a 1U, short-depth system ideal for remote or branch offices, as well as military, government, retail sectors, and more. This machine leverages a single Intel Xeon E-2400 series processor with up to 8 cores and a maximum TDP of 95W. It’s equipped to handle demanding workloads with up to 128 GB of DDR5 ECC UDIMM memory across 4x DIMMs, operating at 4800MT/s. Note that the system does not support non-ECC UDIMMs, RDIMMs, or LRDIMMs.

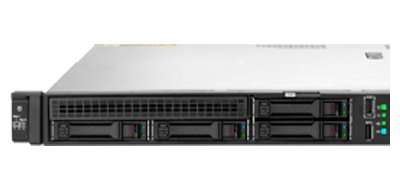

HPE ProLiant DL20 Gen11 - System Overview
Additional Information
There are 3x configuration models available for the ProLiant DL20 Gen11, with variations in front panel drive bays. One configuration supports 2x 3.5” non-hot plug drives, while the other two models support 2x 3.5” hot-plug drives or 4 + 2 hot-plug 2.5” drives. The system can support up to 92TB of storage with 4x SFF drives with additional optional 2x SFF drives installed. Additionally, an optional optical drive is available on the 4x SFF and 2x LFF configure-to-order platforms. The system comes with a virtual RAID on CPU or VROC storage controller offering SATA software RAID options of 0, 1, 5 or 10 but must be enabled in BIOS if desired. Performance Gen11 RAID controllers are also supported. There is an iLO/M.2 enablement kit for remote and out-of-band management of the system.
Standard features include HPE integrated Lights Out 6 (iLO 6) on system management memory. Using HPE iLO 6, Administrators can monitor the server, receive alerts and manage the system remotely using a standard browser or the mobile app. Administrators can choose between 290W non-redundant PSUs or 500W, 800W, or 1000W flex slot power supplies that offer redundancy with a second PSU. 4x 1GbE network ports on the rear of the chassis provide basic network communications. 1x PCIe Gen5 x16 slot with a full-height, half-length form factor and 1x OCP 3.0 slot provide additional options for expansion and network connectivity.
HPE ProLiant DL20 Gen11 - Specifications
Processor- Single Socket
Intel Xeon E-2400 series
4 to 8 core, depending on processor
Processor Cache: Up to 16 MB Intel Smart Cache, depending on processor
Processor Speed: 5.8 GHz, maximum depending on processor
Memory
4x DIMM Slots
HPE DDR5 Standard Memory
Maximum Memory: 128GB
Memory Protection Features: ECC
Storage
2x Non-hot plug LFF or;
2x Hot plug LFF or;
4+2 Hot plug SFF
Storage Controller
Intel VROC SATA (formerly known as Intel RSTe)
Network Controller
HPE embedded 1Gb 4-port BCM5720 Network Adapter
Expansion Slots
1x PCIe Gen5 x16 slot
1x OCP 3.0
System Fan Features
Includes 3 performance single rotor non-hot plug and non-redundant fans
Power Supplies
HPE 290W Non-redundant FIO Power Supply
HPE 500W Flex Slot Platinum Hot Plug Power Supply
HPE 800W Flex Slot Platinum Hot Plug Power Supply
HPE 1000W Flex Slot Titanium Hot Plug Power Supply
Operating System
Microsoft Windows Server
VMware ESXi
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Canonical Ubuntu
Infrastructure Management
HPE iLO 6
Dimensions- 1U Rack
SFF Drives (Height x Width x Depth)
4.32 x 43.46 x 37.84 cm
1.69 x 17.11 x 15.25in
LFF Drives (Height x Width x Depth)
4.32 x 43.46 x 38.22 cm
1.70 x 17.11 x 15.05 in
Weight
Non hot Plug 2 LFF fully loaded: Min 9 kg to Max 12 kg (19.84 to 26.46 lb)
Hot Plug 2LFF fully loaded: Min 9 kg to Max 12 kg (19.84 to 26.46 lb)
Hot Plug 4SFF fully loaded: Min 9 kg to Max 12 kg (19.84 to 26.46 lb)
