HPE ProLiant DL320 Gen11 Server

Featuring a 1U rack-mountable chassis, the HPE ProLiant DL320 Gen11 server is compatible with a single 4th Generation Intel Xeon Scalable processor. When fully configured, the maximum memory configuration is up to 2TB of DDR5 memory. The front of this system houses up to 4x LFF SAS/SATA drive bays or 8x SFF SAS/SATA/NVMe drive bays, plus 2x more for 10x with a drive cage in the Universal Media Bay. The rear of the HPE DL320 Gen11 server houses dual PCIe Gen5 expansion slot as well as an OCP 3.0 PCIe Gen5 mezzanine card slot.

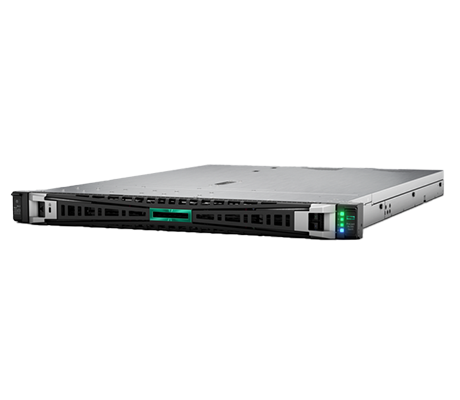

HPE ProLiant DL320 Gen11 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

HPE ProLiant DL320 Gen11 Server - System Overview

Performance

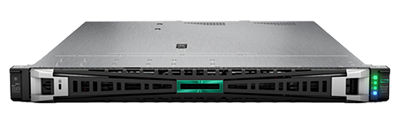

HPE ProLiant DL320 Gen11 front detail

Memory

Storage

Expansion

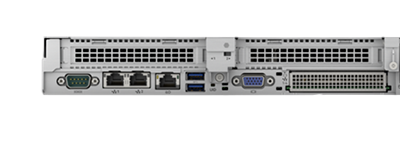

HPE DL320 Gen11 detail rear

Summary

HPE ProLiant DL320 Gen11 Server - Specifications

Processor - 1 Socket

  • 4th Generation Intel Xeon Scalable Processors

Memory

    Maximum Memory:

  • 2TB

    • Memory Slots:

  • 16 x DIMM slots

    • Memory Type:

  • HPE DDR5 SmartMemory

Drive Bays

  • Up to 4 x LFF SAS/SATA HDDs or SSDs
  • Up to 8+2 x SFF SAS/SATA HDDs or SATA/SAS/NVMe U.2 or U.3 SDDs
  • Optional embedded 2 M.2 Boot SSD

Interfaces

  • Serial (Optional, rear)
  • 1 x Display port (optional)
  • 1 x VGA Port (Rear)
  • 1Gb dedicated HPE iLO Remote Mgmt Port
  • 1 x Front iLO Service Port
  • 4 x USB (1x USB 3.2 Gen1 front, 2x USB 3.2 Gen1 rear, 1x USB 2.0 internal)
  • 1 x optional USB 2.0 front in 4LFF
  • 1 x optional USB 3.2 Gen1 front in 8SFF

Expansion Slots

  • 2 x PCIe Gen5
  • 1 x OCP 3.0 PCIe Gen5

Power Supply

  • 2 x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
  • 2 x HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
  • 2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
  • 2 x HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

System Fans

  • 5 + 2 x Standard Fans
  • 7 x Performance Fans

Dimensions

    8SFF Chassis:

  • 4.28 X 43.46 X 60.51 cm / 1.69 X 17.11 X 23.82 in

    • 4LFF Chassis:

  • 4.28 x 43.46 x 66.46 cm / 1.69 x 17.11 x 26.16 in

HPE ProLiant DL320 Gen11 Server - Documentation

HPE ProLiant DL320 Gen11 Server Data Sheet HPE ProLiant DL320 Gen11 Server Quickspecs
