HPE ProLiant DL345 Gen11 Server

The HPE ProLiant DL345 Gen11 is a 2U, 1 socket rack-mountable server for virtualized data-intense, large-capacity storage workloads. It is compatible with AMD EPYC 9004 Series processors with up to 96x physical cores and 192x virtual threads. Fully configured, the maximum memory capacity is up to 3TB of DDR5 memory. Depending on your needs, the HPE DL345 Gen11 server can house up to 20x LFF SAS/SATA drive bays or 34x SFF hybrid drive bays, using optional drive cages. Up to 6x full-height, full-length PCIe 5.0 expansion slots can be configured on the rear of the system, and support up to 4x SW or 2x DW GPUS.

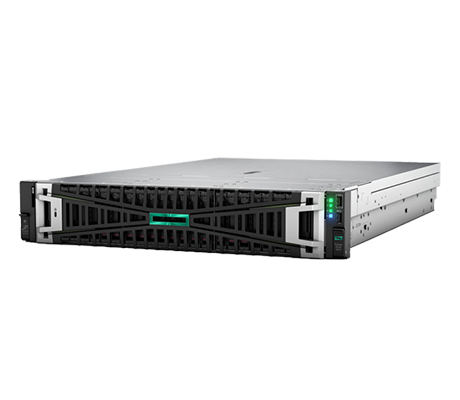

HPE ProLiant DL345-Gen11 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

HPE ProLiant DL345 Gen11 Server - System Overview

Performance

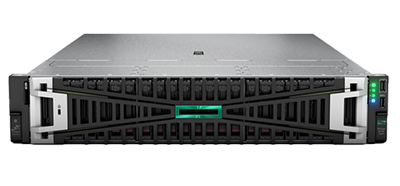

HPE DL345 Gen11 front detail

Memory

Storage

Expansion

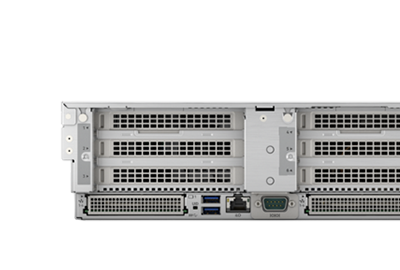

HPE ProLiant DL345 Gen11 detail top

Summary

HPE ProLiant DL345 Gen11 Server - Specifications

Processor - 1 Socket

  • 4th Generation AMD EPYC Processors

Memory

    Maximum Memory:

  • 3TB

    • Memory Slots:

  • 12 x DIMM slots

    • Memory Type:

  • HPE DDR5 SmartMemory

Drive Bays

  • 8 or 12 LFF SAS/SATA with 4 LFF mid drives and 4 LFF rear drives optional
  • 8 or 16 or 24 SFF SAS/SATA/NVMe with 8 SFF mid drives and 2 SFF rear drives optional.
  • 36 EDSFF NVMe[2]

Interfaces

  • Serial (Optional, rear)
  • 1 x VGA Port (Rear)
  • 1Gb dedicated HPE iLO Remote Mgmt Port
  • 1 x Front iLO Service Port
  • 5 x USB 3.2 Gen1 (1x front, 2x rear, 2x internal)

Expansion Slots

  • Up to 8x PCIe Gen5 full-height, full-length slots

Power Supply

  • 2 x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
  • 2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
  • 2 x HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit
  • 2 x HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

System Fans

  • 6 x Standard Fans

Dimensions

    SFF Chassis:

  • 8.75 x 44.8 x 64.6 cm / 3.44 x 17.64 x 25.45 in

    • LFF Chassis:

  • 8.75 x 44.8 x 66.3 cm / 3.44 x 17.64 x 26.11 in

HPE ProLiant DL345 Gen11 Server - Documentation

HPE ProLiant DL345 Gen11 Data Sheet HPE ProLiant DL345 Gen11 Quickspecs
