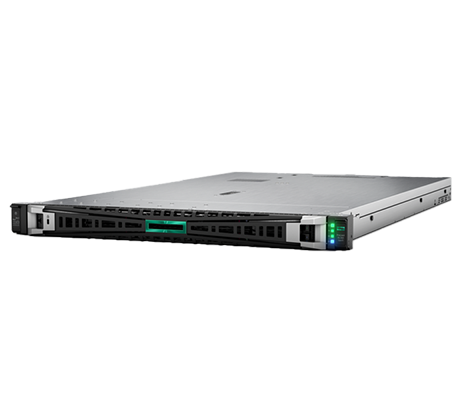

Compatible with 4th Generation Intel Xeon Scalable processors, the HPE ProLiant DL360 Gen11 Server is a 2 socket, rack-mountable system. Fully configured it supports up to 4TB of DDR5 memory with each socket in support of 8x DIMM slots. Up to 4x LFF SAS/SATA or 8x SFF SAS/SATA drive bays are accessible from the front of the system, with an option for two more on the SFF chassis. A single PCIe 5.0 full-height, full-length expansion slot as a well low-profile PCIe 5.0 expansion slot can be found on the rear of the HPE DL360 Gen11 server.
Overview
Specifications
Documentation
Overview
HPE ProLiant DL360 Gen11 Server - System Overview
Performance
Memory
Storage
Expansion
Summary
Specifications
HPE ProLiant DL360 Gen11 Server - Specifications
Processor - 2 Sockets
4th Generation Intel Xeon Scalable Processors
Memory
Maximum Memory:
4TB
Memory Slots:
16 x DIMM slots
Memory Type:
HPE DDR5 SmartMemory
Drive Bays
Up to 4 LFF SAS/SATA HDDs or SSDs
Up to 8 + 2 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.3 SDDs
Up to 2x RAID 1 NVMe M.2 Boot device (Internal modular or external accessible from rear wall).
Interfaces
Serial (Optional, rear)
1 x Display Port (Front)
1 x VGA port (Rear)
1Gb Dedicated HPE iLO Remote Management Network Port
1 x Front iLO Service Port
1 x USB 3.2 Gen1 + iLO service port
Rear: 2 USB 3.2 Gen1
Internal: 1 USB 3.2 Gen1 + 1 USB 2.0
Optional: 1 Front USB 2.0
Expansion Slots
Up to 3x PCIe Gen5 slots
Up to 2x OCP PCIe Gen5 slots
Power Supply
2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
2 x HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
2 x HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
System Fans
5 x Standard Fans, additional 2x standard fans for 2nd processor
