HPE ProLiant DL360 Gen11 Server - System Overview

Performance

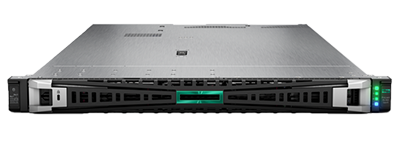

HPE ProLiant DL360 Gen11 front detail

Memory

Storage

Expansion

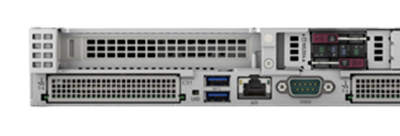

HPE DL360 Gen11 detail rear

Summary

HPE ProLiant DL360 Gen11 Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processors

Memory

    Maximum Memory:

  • 4TB
  • Memory Slots:

  • 16 x DIMM slots
  • Memory Type:

  • HPE DDR5 SmartMemory

Drive Bays

  • Up to 4 LFF SAS/SATA HDDs or SSDs
  • Up to 8 + 2 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.3 SDDs
  • Up to 2x RAID 1 NVMe M.2 Boot device (Internal modular or external accessible from rear wall).

Interfaces

  • Serial (Optional, rear)
  • 1 x Display Port (Front)
  • 1 x VGA port (Rear)
  • 1Gb Dedicated HPE iLO Remote Management Network Port
  • 1 x Front iLO Service Port
  • 1 x USB 3.2 Gen1 + iLO service port
  • Rear: 2 USB 3.2 Gen1
  • Internal: 1 USB 3.2 Gen1 + 1 USB 2.0
  • Optional: 1 Front USB 2.0

Expansion Slots

  • Up to 3x PCIe Gen5 slots
  • Up to 2x OCP PCIe Gen5 slots

Power Supply

  • 2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
  • 2 x HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
  • 2 x HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

System Fans

  • 5 x Standard Fans, additional 2x standard fans for 2nd processor

Dimensions

  • 4.29 X 44.89 X 64.94 cm / 1.69 X 17.67 X 25.57 in

HPE ProLiant DL360 Gen11 Server - Documentation
