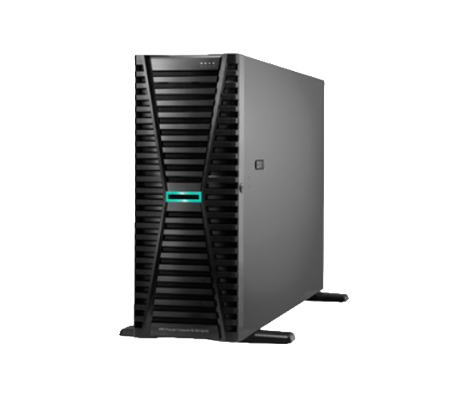

Additional InformationAt its core, the HPE ProLiant ML350 Gen12 server supports 32x DIMM slots, with 16x DIMM slots per processor, 8x channels per processor, and 2x DIMMs per channel. Maximum memory capacity reaches 8TB using 32x 256GB RDIMMs at 5200 MT/s in a 2 DIMM per Channel (2DPC) configuration with Intel Xeon 6700 or 6500 Series P-core processors. Memory bandwidth supports speeds up to 6400 MT/s under optimal conditions.

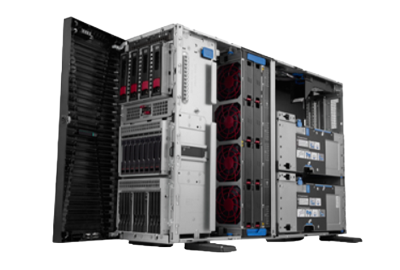

Storage is flexible with up to 3x front drive cages that can be mixed. Options include 4x LFF dual-mode SAS/SATA cages for a maximum of 12x LFF drives, 8x SFF tri-mode SAS/SATA/NVMe cages for a maximum of 24x SFF drives, NVMe x4 cages, and a single 12x EDSFF cage. Management is based on HPE iLO 7 with Intelligent Provisioning as standard, with optional iLO Advanced, HPE OneView, and HPE Compute Ops Management. Silicon Root of Trust security is included.
Expansion provides up to 10x PCIe Gen5 slots plus 2x OCP 3.0 slots. Higher-numbered slots require the second processor. Up to 4x double-wide or 8x single-wide GPUs can be installed with the following compatible NVIDIA GPUs:
- NVIDIA L40 48GB supporting up to 4x cards
- NVIDIA L40S 48GB supporting up to 2x cards
- NVIDIA L4 24GB supporting up to 4x cards
- NVIDIA RTX A1000 8GB supporting up to 8x cards
- NVIDIA RTX PRO 4500 Blackwell Server Edition 32GB supporting up to 4x cards
- 1x or 2x processors
- Intel Xeon 6700 and 6500 series with P-cores
- 8 to 86 P-cores, depending on processor
- NVIDIA L40 48GB PCIe GPU
- NVIDIA L40S 48GB PCIe GPU
- NVIDIA RTX PRO 4500 Blackwell Server Edition 32GB PCIe GPU
- NVIDIA RTX A1000 8GB PCIe GPU
- NVIDIA L4 24GB PCIe GPU
- 32x DIMM slots
- 8TB with 256GB DDR5 Smart Memory
- Advanced ECC Memory Online Spare Mode Memory Lock Step Mode
Primary Riser:
- 4x slots with PCIe Gen5 x8
Secondary Riser:
- 4x PCIe Gen5 x8
- 2x PCIe Gen5 x16
Tertiary Riser:
- 2x PCIe Gen5 x8
- Up to 12x LFF SAS/SATA drives or 24x SFF SAS/SATA/NVMe drives or 12x EDSFF NVMe SSD drives, depending on model.
- Optical Drive available as an option (DVD-ROM or DVD-RW) with additional cable kit.
- HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
- HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
- HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit
- HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
- HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit
Tower:
- 46.2 (H) x 71.2 (D) x 17.4 (W) cm.
- 18.2 (H) x 28 (D) x 6.85 (W) in.
Rack – System only:
- 17.4 (H/4U) x 64.8 (D) x 44.5 (W) cm.
- 6.85 (H) x 25.51 (D) x 17.52 (W) in
Tower-to-Rack Conversion Kit (1U):
- 4.445 (H/1U) x 69.2 (D/without CMA. Depth with CMA: 83.5) x 45.2 (W) cm.
- 1.75 (H/1U) x 27.24 (D/without CMA. Depth with CMA: 32.87) x 17.795 (W) in.
- 23.96 kg (52.82 lb.) SFF Minimum
- 42.28 kg (93.21 lb.) SFF Maximum
- 24.41 kg (53.81 lb.) LFF Minimum
- 45.13 kg (99.50 lb.) LFF Maximum
