HPE ProLiant RL300 Gen11 Server

Scaling up to 128 cores in a single-socket, the HPE ProLiant RL300 Gen11 server gives cloud-native providers the ability to maximize income and space, all in a 1U configuration. The system is outfitted with a single Ampere Altra or Ampere Altra Max processor with 80 to 128 cores, and 16x DDR4 memory module slots. With all 16x memory module slots outfitted with 256GB LRDIMM modules, the system can provide up to 4TB of memory running at speeds of up to 3200MT/s.
HPE ProLiant RL300 Gen11 Server side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

HPE ProLiant RL300 Gen11 Server - System Overview

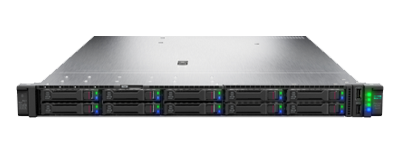

HPE ProLiant RL300 Gen11 front of system

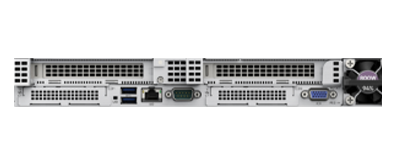

This platform is best suited for cloud service providers, digital service providers, and digital-first businesses running scale-out, cloud-native workloads and providing online services like IaaS, PaaS, and SaaS, as well as media streaming, social platforms, e-commerce, and financial services. Powered by an HPE 800W Flex Slot Titanium hot-plug low halogen power supply kit, the ProLiant RL300 Gen11 offers several storage options. The Ampere-based system supports 10x 2.5” NVMe SSDs or 8x 2.5” NVMe SSDs on the front panel, depending on the configuration. In addition, the system offers the option of installing 2x M.2 NVMe SSDs to boot the operating system. Under the hood, users will also find dual OCP 3.0 PCIe Gen4 slots, plus 4x PCIe x16 Gen4 expansion slots hosted in 2x risers. Storage controllers are not supported. HPE RL300 Gen11 rear of system

HPE ProLiant RL300 Gen11 Server - Specifications

Processor - 1 Socket

  • Ampere Altra and Ampere Altra Max Processors
  • 80 to 128 cores
  • 64 KB L1 I-cache, 64 KB L1 D-cache per core, 1 MB L2 cache per core
  • 3.0 GHz

Memory

    Maximum Memory:

  • 4TB with 256GB DDR4

    • Memory Slots:

  • 16 x DIMM slots

    • Memory Type:

  • DDR4 ECC protected memory, depending on model

Drive Bays

  • 10x SFF NVMe SSDs or 8x SFF NVMe SSDs or 2x M.2 NVMe SSDs optional, depending on model

Network Controller

  • 2 OCP 3.0 PCIe Gen4 slots available

Storage Controller

  • Not supported

Expansion Slots

  • 4x PCIe Gen4, for detailed descriptions refer to the QuickSpecs

Power Supply

  • HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

HPE ProLiant RL300 Gen11 Server - Documentation

HPE ProLiant RL300 Gen11 Server Data Sheet HPE ProLiant RL300 Gen11 Server Quickspecs
