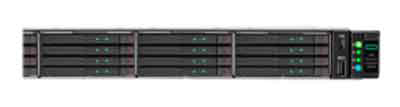

Additional InformationThis system supports 24x RDIMM slots divided between the two processors, which feature 12-channel memory architecture. Memory speeds of up to 6400MT/s using standard DIMMS, or up to 8800MT/s using MRDIMMs also known as Multiplexed Rank DIMMs. When all slots are filled with 128GB DDR5 modules, up to 3TB of memory is supported. The front of the compact HPE ProLiant XD230 chassis accommodates either 10x SFF NVMe or 20x EDSFF drive bays, depending on the configuration. Additional boot options include an optional M.2 NVMe SSD or the HPE NS204i-u Gen11 NVMe hot plug boot optimized storage device.

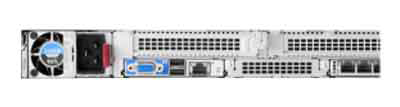

Expansion capabilities vary by cooling configuration. With CLC, the system supports up to 2x full-height, half-length (FHHL) or 3x low-profile (LP) PCIe 5.0 x16 slots. The DLC configuration supports up to 1x LP and one FHHL, or 2x LP PCIe 5.0 x16 slots. Both configurations include support for 2x OCP 3.0 slots. At the rear, the XD230 supports up to 2x redundant 2400W or 3200W power supplies, delivering a combined output of up to 6400W. For remote management and security, HPE Integrated Lights-Out 7 (iLO 7) provides a modern GUI, Redfish API support, and enhanced security features for enterprise-grade operations.
- 2x Intel Xeon 6 processors (6900 P-Series)
- 72 to 128 cores
- TDP at up to 500W
Maximum Memory:
- 3TB (with 128GB DDR5)
Memory Slots:
- 24x DIMM slots
Memory Type:
- RDIMM slots per node with up to 6400MT/s memory speed, or MRDIMM slots per node with up to 8800MT/s memory speed
- 10x SFF NVMe or 20x EDSFF
- CLC configuration: 2x FHHL or 3x LP PCIe 5.0 x16 slots + 2x OCP 3.0
- DLC configuration: “1x LP + 1x FHHL” or 2x LP PCIe 5.0 x16 slots + 2x OCP 3.0
- HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit
- HPE 3200W M-CRPS Titanium Hot Plug Power Supply Kit
- Air-cooled with closed-loop liquid cooling or direct liquid cooled
H x W x D:
- 1.69in (4.3cm) x 17.11in (43.46cm) x 30.04in (86.47cm)
Net Weight:
- 51.41lbs (23.32kg)
