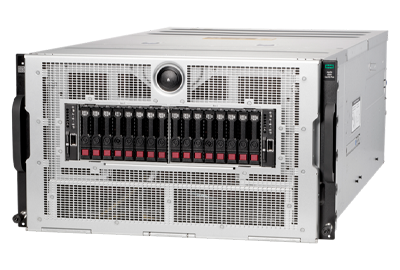

Housed in an HPE Apollo 6500 chassis, the HPE ProLiant XL675d Gen10 Plus GPU Server is a 6U exascale-capable system designed to paired with either AMD’s Infinity Fabric or NVIDIA’s NVLink technologies with PCIe or SXM4 form factors. Either 8x NVIDIA HGX A100 80GB GPUs or 16x AMD Instinct GPUs with 8 to 10 double-wide or 16x single-wide GPUs can be supported by the system with dual processors installed. This ProLiant XL675d Gen10 Plus server can tackle AI, Machine Learning, Deep Learning, and other complex high-performance computing tasks with ease.
HPE ProLiant XL675d Gen10 Plus GPU Server - System Overview
Additional Information

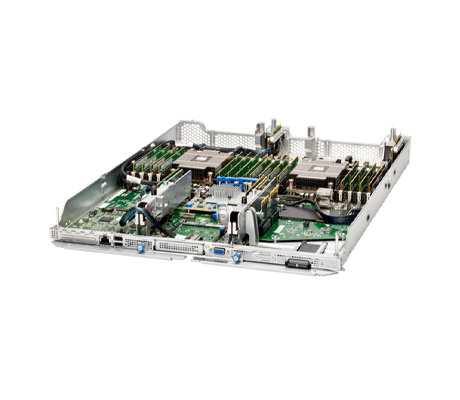

The HPE XL675d Gen10 Plus GPU Server supports a single or dual AMD EPYC 7003 Series processor with up to 64 cores each and a TDP of up to 280W. When all 32x slots are filled with Registered 128GB memory modules, it can support up to 4TB of memory. The memory module slots, CPUs, and 4x NVMe SlimSAS connectors—each with an x8 connector width that can support 2x NVMe drives—are all supported by the compute unit. The mid plane assembly located in the chassis just behind the bank of 15x fans connects the compute unit and the GPU tray to one another.
In each of the two drive cages, there can be 8x 2.5-inch SAS, SATA, or NVMe drives, for a total of 16x drives bays on the front of the HPE Apollo 6500 Gen10 plus chassis. The embedded controller, which can accommodate up to 8x SATA drives or 7x NVMe drives, also affects how the front 2.5-inch drive bays are configured. The NVMe U.3 premium backplane is required for support of NVMe drives. A standard backplane is the option used in the other SAS or SATA configurations. For the primary and secondary risers, the server features 4x x16 PCIe 4.0 low-profile slots; for the tertiary riser, it has 2x x16 full-height half-length PCIe 4.0 slots. The other slots in the tertiary riser can be used for HPE Smart controllers or a boot device to preserve the upfront storage. Direct Liquid Cooling (DLC) is optional on this platform for increased efficiency and power density.
Also supported in the Apollo 6500 Gen10 Plus chassis, is the half-width, single-socket HPE ProLiant XL645d Gen10 Plus server. Two of the HPE XL645d server nodes can be installed with each assigned 8x of the upfront storage bays. 2x separate GPU trays are used with this compute unit, each offering half of that supported by the XL675d compute unit.
HPE ProLiant XL675d Gen10 Plus GPU Server - Specifications
Processors
Up to 2x AMD EPYC 7002/7003 Series
Up to 64 cores
Up to 280W
Memory
4TB max, depending on server
32x DIMM slots
Supports up to 3200 MT/s
Expansion Slots
4x16 PCIe Gen4 slots for balanced fabric
2x16 PCIe Gen4 expansion slots
Modular Smart Array
Supported Chassis
HPE Apollo 6500 Gen10 Plus Configure-to-order Chassis
GPU Trays Supported
HPE ProLiant XL675d Gen10 Plus (1x full width)
NVIDIA HGX A100 8-GPU or
AMD Instinct with 8 to 10 double-wide or 16 single-wide PCIe accelerators
Management Features
HPE iLO 5
HPE OneView
HPE Performance Cluster Manager (HPCM)
Network
Choice of HPE high-speed Ethernet, InfiniBand, or HPE Slingshot
Dimensions & Weight
17.72 x 25.59 x 3.94 in
23.228 lb
Supported Server Nodes
HPE Apollo 6500 Gen10 Plus Chassis- Specifications
HPE ProLiant XL645d Gen10 Plus Configure-to-order Server
HPE ProLiant XL675d Gen10 Plus Configure-to-order Server
GPU Trays Supported
HPE ProLiant XL675d Gen10 Plus (1x full width)
NVIDIA HGX A100 8-GPU or
AMD Instinct with 8 to 10 double-wide or 16 single-wide PCIe accelerators
HPE ProLiant XL645d Gen10 Plus (2x half width)
NVIDIA HGX A100 4-GPU or
AMD Instinct with 4 double-wide PCIe or 8 single-wide PCIe accelerators
Storage
Up to 16x 2.5" SFF drives
Front-accessible storage devices
SAS/SATA solid-state drives (SSDs) with up to four NVMe drives
Dimensions
6U form factor
10.43 x 17.28 x 33.46 in
Power Supplies
Modular accelerator platinum hot plug N power supply kit
1x HPE 3000 W 12v 200-277 V ac Platinum Hot Plug Power Supply
2x HPE 3000 W 54 V Output 200-277 V ac Platinum Hot Plug Power Supply
*Single kit supports N+0 Power Redundancy. Two kits support N+N Power Redundancy for Modular GPU such as HGX A100.
PCIe accelerator platinum hot plug N power supply kit
2x HPE 3000 W 12v 200-277 V ac Platinum hot plug power supply
*Single kit supports N+0 Power Redundancy. Two kits support N+N Power Redundancy for all supported PCIe GPUs.
