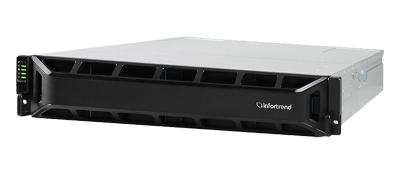

Infortrend EonStor GS 1012 Gen3 Storage

Designed for small to medium-sized businesses, the Infortrend EonStor GS 1012 G3 offers Scale-out high availability, unified storage for enterprise business applications. Scale up is achieved via daisy-chaining together a number of expansion enclosures offering various capacities to achieve target business needs for block-level and file-level data. The maximum number of drives supported in a scale-up capacity is up to 448 drives or up to 1792 via scale-out with other appliances, per cluster.

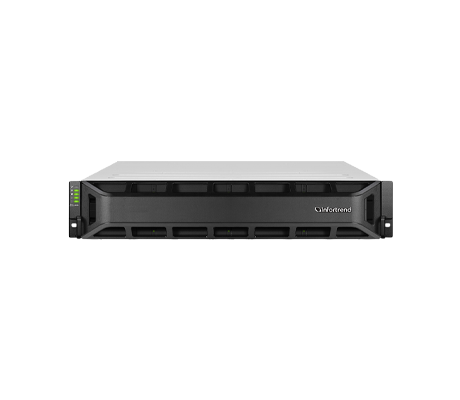

Infortrend GS 1012 Gen3 front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

GS 1012

Gen3

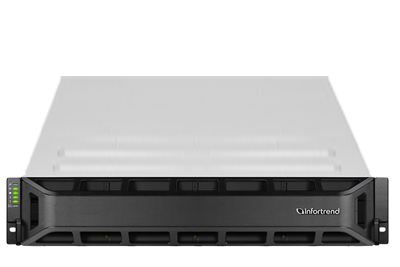

12x SAS or NLSAS

GS 1012

Gen3

16x SAS or NLSAS

GS 1012

Gen3

24x SAS or NLSAS

Infortrend EonStor GS 1012 Gen3 Storage - System Overview

Additional Information

Infortrend GS 1012 Gen3 side view

The Infortrend EonStor GS 1012 G3 can be outfitted with a single controller or dual controllers for redundancy. A system with a single controller can easily be upgraded for redundancy with the addition of another controller. For a single controller, the system supports a super capacitor with flash module to ensure data integrity in the event of a power failure. Powered by a single Intel Pentium 2 CPU, a single controller can support 8GB to 64GB of DDR4 memory, while dual controllers will deliver 16GB to 128GB of memory. Remote Direct Memory Access is supported on configurations with at least 24GB of memory, per controller. Part of the Infortrend GS 1000 G3 line of appliances, there are 3x basic systems offering 12x, 16x, or 24x SAS, NLSAS HDD, SATA SSD, SATA HDD, and U.2 NVMe SSDs for models that support U.2 SSDs for cache.

INFORTREND EONSTOR GS 1000 G3 MODELS

Infortrend EonStor GS 1012 G3Infortrend EonStor GS 1016 G3Infortrend EonStor GS 1024 G3Infortrend EonStor GS 1012 Gen3 Storage rear view

Host servers are connected to the storage appliances via the host boards and onboard host ports supported in the controllers. Host boards supported in the controllers are variable, offering a number of options for ports and link width depending on your network configuration and business needs. Host boards include Fiber Channel, SFP, SFP+, GbE, and SAS options. Onboard host ports include 2x 12Gb/s SAS ports, which can be augmented via the addition of host boards. The system can support a maximum of 30 logical drives and a maximum logical drive capacity of up to 512TB. There are a number of RAID optional available for performance or data resiliency. Power is provided by dual redundant 460W 80 PLUS Bronze PSUs or for EU countries dual redundant 800W 80 PLUS Titanium.

Management of the system is via web-based EonOne software. Default software features address both block and file level storage needs and include scale-out, snapshots, and local and remote data replication. Optional features require an additional license and include automated storage tiering, advanced scale-out, advanced snapshot, and advanced local and remote replication.

Infortrend EonStor GS 1012 Gen3 Storage - Specifications

Processor - 1 Socket

  • Intel Pentium 2-Core
  • Up to 4x threads

Controller

  • Dual redundant
  • Single Upgradable to dual redundant

Cache Backup Technology

  • Super Capacitor + flash module

Cache Memory

    Single Controller:

  • Default DDR4 8GB, up to 64GB

    • Redundant Controller:

  • Default DDR4 16GB, up to 128GB

Supported Drives

  • 2.5" SAS SSD
  • 2.5" 12Gb/s SAS 10,000 RPM HDD
  • 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
  • 2.5" U.2 NVMe SSD (for U.2 SSD cache models; must be purchased from Infortrend)
  • 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD (for single-controller models only

Max. Drive Number

    Via Expansion Enclosures, per Appliance:

  • 448

    • Via Scale-out with Other Series of Appliances, per Cluster:

  • 1792

Max. SSD Cache Pool (Block Level)

  • 2TB

JBOD Expansion Enclosures

  • JB 3012A
    • 2U, 12-Bay, 12Gb/s SAS
  • JB 3016A
    • 3U, 16-Bay, 12Gb/s SAS
  • JB 3024BA
    • 2U, 24-Bay, 12Gb/s SAS
  • JB 3025BA
    • 2U, 25-Bay, 12Gb/s SAS
  • JB 3060L
    • 4U, 60-Bay, 12Gb/s SAS
  • JB 3090
    • 4U, 90-bay, 12Gb/s SAS
  • JB 4090
    • 4U, 90-bay, 24Gb/s SAS

Host Board Slots

    Single Controller:

  • 1x Slot

    • Redundant Controller:

  • 2x Slots

Host Board Options

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 32Gb/s FC x 4
  • 1GbE (RJ45) x 4
  • 10GbE (SFP+) x 2
  • 25GbE (SFP28) x 2, RDMA
  • 12Gb/s SAS x 2

    • *Host boards are optional

Chassis

    2U Enclosure

    Height: 88mm

    Width: 449mm

    Depth: 500mm

Power Supply

  • 2 x 460W redundant hot-swap 80 PLUS Bronze

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)
  • SMI-S standard interface for hypervisor management applications

Infortrend EonStor GS 1012 Gen3 Storage - Documentation

Infortrend EonStor GS 1012 Gen3 Storage Data Sheet Infortrend EonStor GS 1012 Gen3 Front and Back View Infortrend EonStor GS 1012 Gen3 Storage Unpacking List Infortrend EonStor GS 1012 Gen3 Storage Quick Installation Guide Infortrend Expansion Enclosure/JBOD Data Sheet Infortrend Expansion Guide Infortrend EonStor Command Line Interface
