Infortrend EonStor GS 1016 Gen2 Storage

Designed to integrate hybrid environments with enterprise business applications, the Infortrend EonStor GS 1016 Gen 2 Storage appliance is housed in a 3U chassis. There are two configuration options available for this system, both of which have 16x drive bays. The first option, the EonStor GS 1016S2C, houses a single controller which can be upgraded to dual redundant controllers. The second option is called the EonStor GS 1016R2C and it has dual controllers in a redundant configuration. Each controller supports a single Intel Atom 4-core processor. On the front of the server, there are 16x 3.5-inch SAS/SATA drive bays, which will also accept 2.5-inch drives.

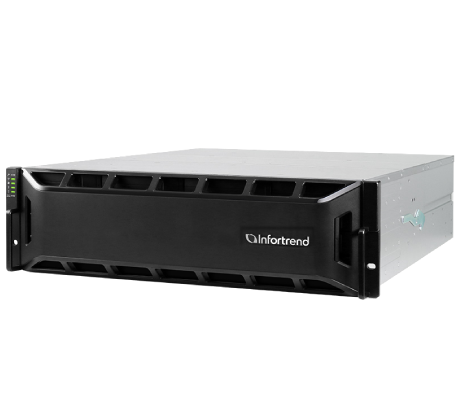

Infortrend GS 1016 Gen2 front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

GS 1016 Gen2 Storage

GS 1016S2C

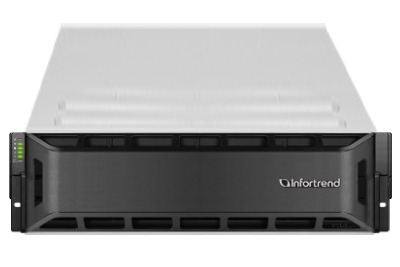

Single upgradable to dual redundant controllers

GS 1016 Gen2 Storage

GS 1016R2C

Dual redundant controllers

Infortrend EonStor GS 1016 Gen2 Storage - System Overview

Additional Information

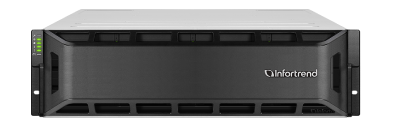

Infortrend GS 1016 Gen2 front view

With two different configurations for the Infortrend GS 1016 Gen2 Storage system, either the EonStor GS 1016S2C with a single controller or the EonStor GS 1016R2C with dual controllers, businesses have options. The single Intel Atom with 4x physical cores and 4x virtual threads supports a minimum of 8GB of cache memory and a maximum of 16GB. The dual controller option has a minimum of 16GB of cache memory and a maximum of 32GB. A maximum thermal design point of 38W is supported by either the dual or single controller option. 16x 3.5-inch drive bays are compatible with 2.5-inch SAS or SATA SSDs or HDDS. Cache backup support is provided by a super capacitor with flash module. U.2 NVMe SSDs can also be installed but additional parts may be required.

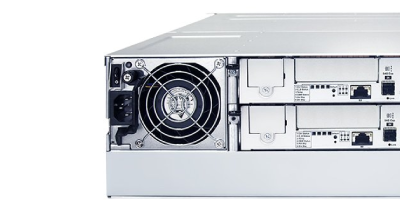

Infortrend EonStor GS 1016 Gen2 Storage rear view

The rear of the server houses a single Ethernet management port along with a SAS expansion port. 4x host ports are also available which have the option to be configured with 4x 16BG/s or 1GbE ports or 2x 32GB/s, 10GbE, or 12Gb/s SAS ports. A maximum of 448 drives are supported by this system via expansion enclosures. Via scale-out using other Infortrend Series appliances, per cluster, the maximum number of drives supported can increase to 3136 drives, maximum. A full range of RAID options are supported. This system is powered by dual 460W 80 Plus bronze rated power supplies which are configured with redundancy in mind.

Infortrend EonStor GS 1016 Gen2 Storage - Specifications

Processor - 1 Socket

  • Intel Atom 4-Core
  • Up to 4x cores
  • Up to 4x threads
  • TDP up to 38W

    • Socket:

  • 1 x FCBGA-2106

Cache Memory

    Single Controller:

  • 8GB of DDR3 memory upgradeable to 16GB

    • Dual Controller:

  • 16GB of DDR3 memory upgradeable to 32GB

Drive Bays

    Front Bays:

  • 16 x 3.5-inch drive bays

    • Expansion Enclosure:

  • 448 x Drive Bays

    • Compatible Drives:

  • 2.5" SAS SSD
  • 2.5" 12Gb/s SAS 10,000 RPM HDD
  • 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
  • 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD (for single-controller models only)
  • 2.5" U.2 NVMe SSD (for U.2 SSD cache models; must be purchased from Infortrend)

RAID Options

  • RAID 0, RAID 1, RAID 3, RAID 5/5F, RAID 6/6F, RAID 10, RAID 30, RAID 50, RAID 60

External Ports

    RJ45 Ports:

  • 8 x Onboard 1GbE Ports

    • SAS Ports:

  • 2 x Onboard SAS Expansion Ports

    • Host Board Slots:

  • 2 x Host Board Slots

    • Host board options:

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 1GbE (RJ-45) x 4
  • 10GbE (SFP+) x 2
  • 12Gb/s SAS x 2

Chassis

    Enclosure

    Height: 130mm

    Width: 449mm

    Depth: 500mm

Power Supply

  • 2 x 460W 80 PLUS Bronze

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)
  • SMI-S standard interface for hypervisor management applications

Operating System and Hypervisors

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • MacOS X
  • VMware
  • Citrix XenServer
  • OpenStack Cinder

Infortrend EonStor GS 1016 Gen2 Storage - Documentation

Infortrend EonStor GS 1016 Gen2 Storage Data Sheet Infortrend Expansion Enclososure Guide Infortrend EonStor GS 1016 Gen2 Front and Back View Infortrend EonStor GS Compatibility Guide Infortrend GS Host Board and Memory Guide
