The Infortrend EonStor 1000 G3 family delivers 3x different storage appliances including a 12-bay, 16-bay, and 24-bay chassis option. With 16x high-capacity SAS HDD storage bays, the Infortrend EonStor GS 1016 G3 can be outfitted with either a single controller or dual controllers for redundancy. The controllers have a 2-core Pentium processor and 8GB to 64GB of DDR4 memory with a single controller or double that amount with dual controllers for 16GB up to 128GBGB of memory.
GS 1012
Gen3
GS 1012
Gen3
GS 1012
Gen3

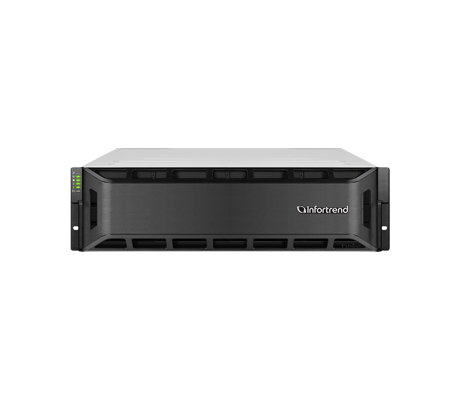

Infortrend EonStor GS 1016 Gen3 Storage - System Overview
Additional Information
A supercapacitor with flash memory module is standard on this system providing a failsafe in the event of a power failure. Drive types supported include SAS SSDs, SAS HDDs, SATA SSD and HDDs, plus optional U.2 NVMe SSDs as an optional superfast cache. With additional expansion enclosures attached, it can be outfitted with up to 448 drives or via scale-out with other Infortrend-series appliances, up to 1792 drives per cluster, maximum. General block-level cache support is listed at 2TB. Along with the rest of the GS 1000 G3 lineup, this platform has 2x 12Gb/s SAS expansion ports and additional options for Host Boards supported in the controller.
INFORTREND EONSTOR GS 1000 G3 MODELS
Infortrend EonStor GS 1012 G3
2U, 12x SAS or NLSAS, single or redundant controllers

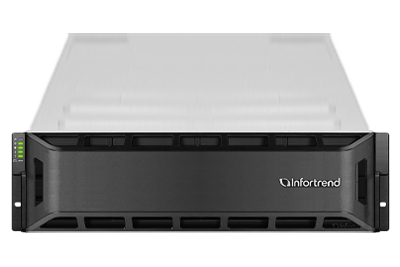

Infortrend EonStor GS 1016 G3
3U, 16x SAS or NLSAS, single or redundant controllers
Infortrend EonStor GS 1024 G3
4U, 24x SAS or NLSAS, single or redundant controllers
At least 24GB of memory is required, per controller, for enabling Remote Direct Memory Access (RDMA). A number of different host Boards are supported offering support for Fiber Channel, SAS, RJ45, SFP+, and SFP28 for RDMA applications. There are several just a Bunch of Disks (JBOD) expansion enclosures that can be attached to this system for scale-out. Additional expansion enclosures are daisy-chained to the GS unit and are automatically recognized by the EonOne software. EonOne software features and intuitive browser-based user interface and provides for scale-out, snapshots, and local and remote data replication. Optional advanced features are available with an additional license.
Get a quote for Infortrend EonStor GS 1016 Gen3 Storage
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
