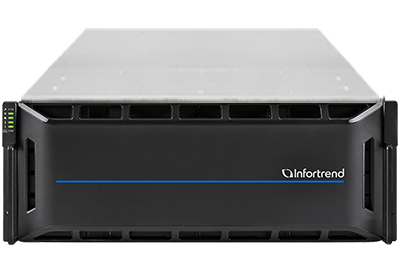

Part of the EonStor GS 1000 Gen2 line of storage enclosures, the Infortrend EonStor GS 1024 Gen2 Storage system is a 4U chassis that houses 24x 3.5-inch drive bays. Two configuration options are available for this system. The first option, called the 1024S2C, offers. a single controller unit which can be upgraded to house 2 controllers in a redundant configuration. The second option, called the 1024R2C, holds dual redundant controllers. A single Intel Atom 4-core processor can be installed per controller. 24x 3.5-inch SAS/SATA drive bays on the front of the system, are also compatible with 2.5-inch drives.
GS 1024 Gen2 Storage
GS 1024S2C
GS 1024 Gen2 Storage
GS 1024R2C
Infortrend EonStor GS 1024 Gen2 Storage - System Overview
Additional Information
Designed to integrate hybrid environments with enterprise business applications, the 2 configuration options supported by the Infortrend GS 1024 Gen2 Storage appliance, are differentiated by either a single controller or dual redundant controllers. The GS 1024R2C, has dual redundant controllers, while the GS 1024S2C offers a single controller. Outfitted with a single Intel Atom 4-core processor with a maximum of 4x virtual threads, single controller chassis have a default cache memory of 8GB which can be upgraded to 16GB. A maximum thermal design point of 38W is supported by both the single or dual controller options. The dual controller option has a default cache memory option of 16GB that can be upgraded to 32GB. In the event of a power failure, a super capacitor with flash module provides a means to store any active data on the memory modules in local storage. 24x 3.5-inch SAS/SATA drive bays provide the primary storage.
On the rear of the server, a single Ethernet management port is housed along with a SAS expansion port. Host ports available on the rear can be configured with 4x 16GB/s fiber Channel (FC) 4x 1GbE RJ45 ports or dual port 32GB/s FC, 10GbE SFP+, or 12Gb/s SAS ports. An additional host board option for Remote Direct Memory Access (RDMA) includes dual 100GbE ports, however, this configuration will require at least 24GB of memory per controller. 448x drives are supported on this system via an expansion enclosure. Additionally, utilizing a scale-out configuration with other Infortrend Series appliances, per cluster, the maximum number of drives can increase to 3136 drives. A full range of RAID options are supported. This system is powered by dual 460W 80 Plus bronze rated power supplies configured with redundancy in mind.
Get a quote for Infortrend EonStor GS 1024 Gen2 Storage
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
