Infortrend EonStor GS 1024 Gen3 Storage

Designed for small to medium-sized businesses and outfitted with 24x drive bays, the Infortrend GS 1024 G3 can be augmented with 15x mixed expansion enclosures for up to 448 drives. Via scale-out with other Infortrend appliances, it can support up to 1792 drives per cluster, maximum. Expansion enclosures are attached to either 1x controller or 2x controllers for redundancy. Another one of the performance features on this system is GPUDirect, which bypasses the CPU and system memory to directly address the host system GPU for maximum efficiency and low latency.

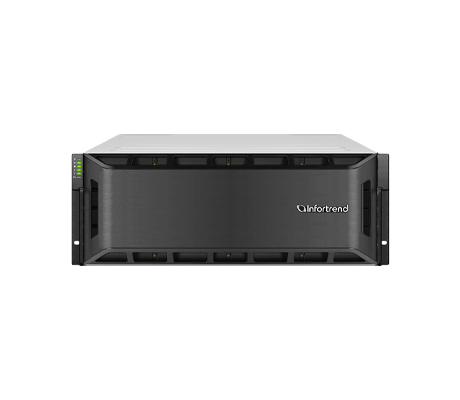

Infortrend GS 1024 Gen3 front view
Intel Partner Gold

Infortrend GS 1012 Gen3

Gen3

12x SAS or NLSAS

Infortrend GS 1016 Gen3

Gen3

16x SAS or NLSAS

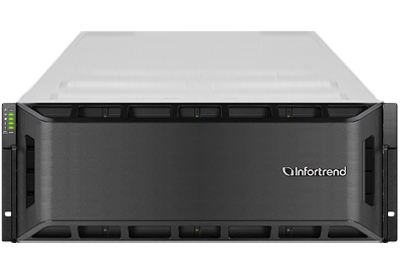

Infortrend GS 1024 Gen3

Gen3

24x SAS or NLSAS

Infortrend EonStor GS 1024 Gen3 Storage - System Overview

Additional Information

Infortrend GS 1024 Gen3 side view

The controllers feature an Intel Pentium processor with 2x cores. With a single controller the system can be outfitted with 8GB to 64GB of DDR4 memory. With dual controllers, from 16GB to 128GB or DDR4 memory. Standard on the 4U Infortrend GS 1024 G3 is a supercapacitor with flash model for cache backup technology in the event of a power failure. Each controller has 2x Host Board slots that can be outfitted with a number of Host Boards supporting different port connections and link throughput. Supported optional host boards include fiber channel, RJ45, SFP+, SFP28 for RDMA and SAS at 12Gb/s.

INFORTREND EONSTOR GS 1000 G3 MODELS

Infortrend EonStor GS 1012 G3
  • 2U, 12x SAS or NLSAS, single or redundant controllers

Infortrend EonStor GS 1024 Gen3 Storage rear view Infortrend EonStor GS 1024 G3 Infortrend EonStor GS 1016 G3
  • 3U, 16x SAS or NLSAS, single or redundant controllers

  • 4U, 24x SAS or NLSAS, single or redundant controllers

Offering a modular, redundant, and hot-swapable design, the GS 1000 G3 family of appliances offer easy support and expansion with high availability. Using Infortrend’s EonOne web-based software utility, it’s easy to manage clusters of servers, monitor performance, capacity usage, and configure systems. Depending on the system configuration, faults are automatically detected and addressed ensuring maximum up-time.

Infortrend EonStor GS 1024 Gen3 Storage - Specifications

Processor - 1 Socket

  • Intel Pentium 2-Core
  • Up to 4x threads

Controller

  • Dual redundant
  • Single Upgradable to dual redundant

Cache Backup Technology

  • Super Capacitor + flash module

Cache Memory

Single Controller:

  • Default DDR4 8GB, up to 64GB

Redundant Controller:

  • Default DDR4 16GB, up to 128GB

Supported Drives

  • 2.5" SAS SSD
  • 2.5" 12Gb/s SAS 10,000 RPM HDD
  • 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
  • 2.5" U.2 NVMe SSD (for U.2 SSD cache models; must be purchased from Infortrend)
  • 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD (for single-controller models only

Max. Drive Number

Via Expansion Enclosures, per Appliance:

  • 448

Via Scale-out with Other Series of Appliances, per Cluster:

  • 1792

Max. SSD Cache Pool (Block Level)

  • 2TB

JBOD Expansion Enclosures

  • JB 3012A
    • 2U, 12-Bay, 12Gb/s SAS
  • JB 3016A
    • 3U, 16-Bay, 12Gb/s SAS
  • JB 3024BA
    • 2U, 24-Bay, 12Gb/s SAS
  • JB 3025BA
    • 2U, 25-Bay, 12Gb/s SAS
  • JB 3060L
    • 4U, 60-Bay, 12Gb/s SAS
  • JB 3090
    • 4U, 90-bay, 12Gb/s SAS
  • JB 4090
    • 4U, 90-bay, 24Gb/s SAS

Host Board Slots

Single Controller:

  • 1x Slot

Redundant Controller:

  • 2x Slots

Host Board Options

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 32Gb/s FC x 4
  • 1GbE (RJ45) x 4
  • 10GbE (SFP+) x 2
  • 25GbE (SFP28) x 2, RDMA
  • 12Gb/s SAS x 2

  • *Host boards are optional

Chassis

  • 3U Enclosure
  • Height: 174.4mm
  • Width: 449mm
  • Depth: 500mm

Power Supply

  • 2 x 460W redundant hot-swap 80 PLUS Bronze

Efficiency

  • Block level: Offline compression, offline deduplication
  • File level: Inline compression, offline deduplication

Data Services

Default software features include:

  • Thin provisioning (block level)
  • Scale-out (file level): 1 appliance per cluster
  • Scale-out (block level): 4 appliances per cluster
  • Snapshot (volume-based): 64 per source volume, 128 per system
  • Local replication: 4 per source volume, 16 per system
  • Remote replication (file level): support Rsync with 128-bit SSH encryption

Optional software features require additional license:

  • HA Service (block level, file level)
  • SSD cache (block level, file level)
  • Automated storage tiering: 4 tiers per pool
  • Advanced scale-out (file level): 4 appliances per cluster
  • Advanced snapshot (folder-based): 1024 per folder (supported on Btrfs file system only)
  • Advanced snapshot (volume-based): 256 per source volume, 4096 per system
  • Advanced local replication: 8 per source volume, 256 per system
  • Advanced remote replication (block level): 8 per source volume, 64 per system

Supported Protocols

  • File level: CIFS/SMB (version 2.0/3.0), NFS (version 2/3/4), AFP (version 3.1.12), FTP/FXP (vsftp 2.3.4), WebDAV (httpd package 2.4.6)
  • Block level: FC, iSCSI, SAS, NVMe/TCP, NVMe/RDMA
  • Object level: RESTful API (Amazon S3-compatible API)
  • GPUDirect Storage (GDS): Supported on NVMe-oF (Block) and NFS over RDMA (File) environments for direct GPU memory access.

  • Scale-out requires NFS version 4 or above.
  • NVMe/RDMA is supported only on host channels with RDMA functionality.

Cloud Gateway

EonCloud Gateway supports integration with the following cloud providers:

  • Amazon S3
  • Baidu Cloud
  • Yandex
  • Microsoft Azure
  • Tencent Cloud
  • hiCloud
  • Alibaba Cloud

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)
  • SMI-S standard interface for hypervisor management applications

Infortrend EonStor GS 1024 Gen3 Storage - Documentation

Infortrend EonStor GS 1024 Gen3 Storage Data Sheet Infortrend EonStor GS 1024 Gen3 Front and Back View Infortrend EonStor GS 1024 Gen3 Storage Unpacking List Infortrend EonStor GS 1024 Gen3 Storage Quick Installation Guide Infortrend Expansion Enclosure/JBOD Data Sheet Infortrend Expansion Guide Infortrend EonStor Command Line Interface
