Infortrend EonStor GS 2024 Storage

Infortrend's EonStor GS 2024 Gen1 storage, which is part of the GS 2000 series, offers a cost-effective solution for NAS and SAN integration into a single HDD-based cohesive storage system. It offers 24x 3.5-inch drive bays that can accommodate SAS or SATA HDD or SSD in a 4U chassis. There are 4x configurations for this model, leveraging basic and high-performance options with single or dual controllers. The basic chassis features a single Intel Pentium 2-core processor, as opposed to the 4-core Intel Pentium supported on the high-performance chassis.

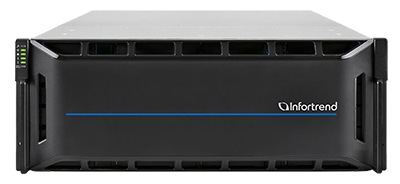

Infortrend GS 2024 front view
Intel Partner Gold

Infortrend GS 2024 Storage

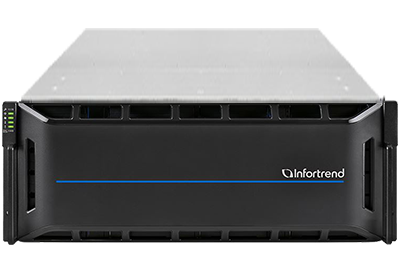

GS 2024RCF

Dual redundant controllers

Infortrend GS 2024 Storage

GS 2024SCF

Single upgradable to dual redundant controllers

Infortrend GS 2024 Storage

GS 2024RTCF

Dual high performance redundant controllers

Infortrend GS 2024 Storage

GS 2024STCF

Single high performance upgradable to dual redundant controllers

Infortrend EonStor GS 2024 Storage - System Overview

Additional Information

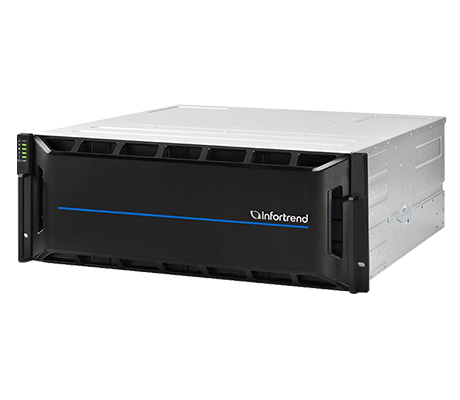

Infortrend GS 2024 front view

Another one of the performance features on this system is GPUDirect, which bypasses the CPU and system memory to directly address the host system GPU for maximum efficiency and low latency. Depending on the configuration, the system provides a maximum throughput of 6 Gbps for SATA or 12 Gbps for SAS. This appliance supports block level storage technologies including, SAS, iSCSI, and FC. A single controller may handle 8GB to 64GB of DDR4 cache memory, while two redundant controllers can support 16GB to 128GB of cache memory. The 4U EonStor GS 2016 storage is intended for use in common business applications but also delivers enterprise-grade features like a flash module-equipped super capacitor for cache backup in the event of a power outage. Outfitted with controllers for standard applications or performance, the CPUs, memory capacities, and network interface cards will vary.

Standard

EonStor GS 2024RCF
  • Dual redundant controllers, Intel Pentium 2-core CPUs
EonStor GS 2024SCF
  • Single controller, Intel Pentium 2-core CPU

High-Performance

EonStor GS 2024RTCF
  • Dual redundant high-performance controllers, Intel Pentium 4-core CPU, high IOPS
EonStor GS 2024STCF
  • Single high-performance controller, Intel Pentium 4-core CPU, high IOPS

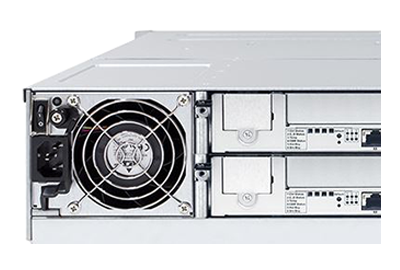

Infortrend EonStor GS 2024 Storage rear view

Powered by dual redundant 460W 80 PLUS Bronze power supplies, the EonStor GS 2024 aims to reduce hardware footprint by supporting up to 896 drives when connected to JBOD expansion enclosures. When additional Infortrend series appliances are utilized, per cluster for scale-out, the maximum number of drives that can be accessed is up to 3584 drives. Optional host board cards provide additional network connection options depending on your business needs. Among the supported operating systems are Windows Server, Citrix XenServer, OpenStack Cinder, and macOS X. Infortrend’s EonOne software management suite allows for autonomous management of the storage appliances from a single web-based user interface. It can be used for status, to allocate resources and offers and intuitive user interface with automation features to help reduce Administrator oversight and ensure a balanced allocation of resources.

Infortrend EonStor GS 2024 Storage - Specifications

Processor - 1 Socket

  • Intel Pentium 2-Core
  • Intel Pentium 4-Core
  • Up to 4x cores
  • Up to 4x threads
  • TDP up to 68W

Cache Memory

Single Controller:

  • Default DDR4 8GB, up to 64GB

Dual Controller:

  • Default DDR4 16GB, up to 128GB

Drive Bays

Front Bays:

  • 24 x 2.5-inch or 3.5-inch drive bays

Max Drive Number:

  • Per Appliance: 896 (via expansion enclosures)
  • Per Cluster: 3584 (via scale-out with other hseries of appliances)

Compatible Drives:

  • 2.5" SAS SSD
  • 2.5" 12Gb/s SAS 10,000 RPM HDD
  • 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
  • 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD (for single-controller models only)
  • 2.5" U.2 NVMe SSD (for U.2 SSD cache models; must be purchased from Infortrend)

RAID Options

  • RAID 0
  • RAID 1
  • RAID 3
  • RAID 5/5F
  • RAID 6/6F
  • RAID 10
  • RAID 30
  • RAID 50
  • RAID 60

Expansion Enclosures (JBODs)

  • JB 3012A
  • JB 3016A
  • JB 3024BA
  • JB 3025BA
  • JB 3060L
  • JB 3090

Host Board Options

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 32Gb/s FC x 4
  • 1GbE (RJ45) x 4
  • 10GbE (RJ45+) x 2
  • 25GbE (SFP28) x 2
  • 12Gb/s SAS x 2

Chassis

  • Enclosure
  • Height: 174.4mm
  • Width: 449mm
  • Depth: 500mm
  • Weight: 42.28 lbs (19.18 kg)

Power Supply

  • 2 x 460W 80 PLUS Bronze

Efficiency

  • Block level: Offline compression, offline deduplication
  • File level: Inline compression, offline deduplication

Data Services

Default software features include:

  • Thin provisioning (block level)
  • Scale-out (file level): 1 appliance per cluster
  • Scale-out (block level): 4 appliances per cluster
  • Snapshot (volume-based): 64 per source volume, 128 per system
  • Local replication: 4 per source volume, 16 per system
  • Remote replication (file level): support Rsync with 128-bit SSH encryption

Optional software features require additional license:

  • HA Service (block level, file level)
  • SSD cache (block level, file level)
  • Automated storage tiering: 4 tiers per pool
  • Advanced scale-out (file level): 4 appliances per cluster
  • Advanced snapshot (folder-based): 1024 per folder (supported on Btrfs file system only)
  • Advanced snapshot (volume-based): 256 per source volume, 4096 per system
  • Advanced local replication: 8 per source volume, 256 per system
  • Advanced remote replication (block level): 8 per source volume, 64 per system

Supported Protocols

  • File level: CIFS/SMB (version 2.0/3.0), NFS (version 2/3/4), AFP (version 3.1.12), FTP/FXP (vsftp 2.3.4), WebDAV (httpd package 2.4.6)
  • Block level: FC, iSCSI, SAS, NVMe/TCP, NVMe/RDMA
  • Object level: RESTful API (Amazon S3-compatible API)
  • GPUDirect Storage (GDS): Supported on NVMe-oF (Block) and NFS over RDMA (File) environments for direct GPU memory access.

  • Scale-out requires NFS version 4 or above.
  • NVMe/RDMA is supported only on host channels with RDMA functionality.

Cloud Gateway

EonCloud Gateway supports integration with the following cloud providers:

  • Amazon S3
  • Baidu Cloud
  • Yandex
  • Microsoft Azure
  • Tencent Cloud
  • hiCloud
  • Alibaba Cloud

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)
  • SMI-S standard interface for hypervisor management applications

Operating System and Hypervisors

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • MacOS X
  • VMware
  • Citrix XenServer
  • OpenStack Cinder

Infortrend EonStor GS 2024 Storage - Documentation

Infortrend EonStor GS 2024 Storage Data Sheet Infortrend Expansion Enclosure Guide Infortrend EonStor GS 2024 Front and Back View Infortrend EonStor GS Compatibility Guide Infortrend GS Host Board and Memory Guide
