Infortrend EonStor GS 3016 Gen3 Storage

At 3U, the Infortrend EonStor GS 3016 G3 Storage appliance has 16x 2.5-inch storage bays on the front. It supports SAS HDD storage and can deliver 12Gb/s write in throughput to support high-performance workloads. The system is available with single or dual controllers outfitted with Intel Xeon-D CPUs, with a wide range of optional connections. Another one of the performance features on this system is GPUDirect, which bypasses the CPU and system memory to directly address the host system GPU for maximum efficiency and low latency.

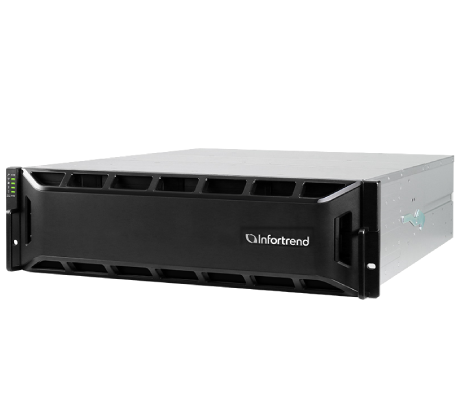

Infortrend GS 3016 Gen3 front view
Intel Partner Gold

Infortrend GS 3016 Gen3 Storage

GS 3016S3

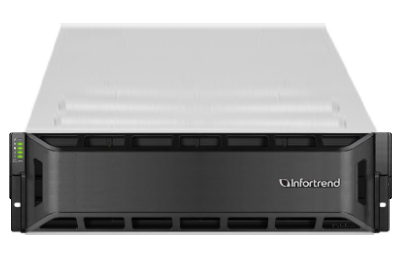

Single upgradable to dual redundant controllers

Infortrend GS 3016 Gen3 Gen2 Storage

GS 3016R3

Dual redundant controllers

Infortrend EonStor GS 3016 Gen3 Storage - System Overview

Additional Information

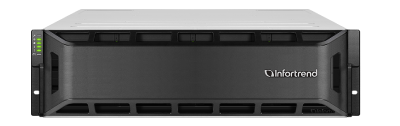

Infortrend GS 3016 Gen3 front view

Scale-up and scale-out JBOD expansion chassis enable storage capacities of up to 70PB. Maximum drives supported via expansion enclosures is up to 896 drives. Supported drive types include SAS SSDs, NL-SAS, SATA for capacity, and U.2 NVMe SSDs for cache. Per cluster via scale-out with other series appliances it can support up to 3,584 drives. The Infortrend EonStor GS 3016 G3 Storage appliance supports a supercapacitor and flash module to hep store and recover active data in the event of a power loss. With a number of RAID options to choose from, ensures EonStor GS will protect your data in the event of a drive failure. Dual redundant controllers on the EonStor GS 3016R3 storage system also provide a measure of safety and high-availability. The EonStor GS 3016S3 storage system has only a single controller but can easily be updated with a second controller.

Infortrend EonStor GS 3016R3 Gen3

  • Dual Redundant Controllers

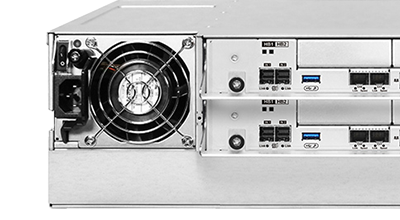

Infortrend EonStor GS 3016 Gen3 Storage rear view

Infortrend EonStor GS 3016S3 Gen3

  • Single Controller

Infortrend provides the web-based EonOne management software to manage one-to-many storage appliances. In addition to helping manage the system, it can also help allocate resources and features a Storage Resource Management utility analyzes history records and resource usage. Auto-balancing of storage resources is supported and helps Administrators by removing the burden of manual planning and configuration.

Infortrend EonStor GS 3016 Gen3 Storage - Specifications

Processor - 1 Socket

  • Intel Xeon D 4-Core
  • Up to 4x cores
  • Up to 8x threads
  • TDP up to 35W

Socket:

  • 1 x FCBGA-1667

Cache Memory

Single Controller:

  • Default DDR4 8GB, up to 192GB

Dual Controller:

  • Default DDR4 16GB, up to 384GB

Drive Bays

Front Bays:

  • 16 x 3.5-inch drive bays


Expansion Enclosure:

  • 896 x Drive Bays


Compatible Drives:

  • 2.5" SAS SSD
  • 2.5" 12Gb/s SAS 10,000 RPM HDD
  • 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
  • 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD (for single-controller models only)
  • 2.5" U.2 NVMe SSD (for U.2 SSD cache models; must be purchased from Infortrend)

RAID Options

  • RAID 0
  • RAID 1
  • RAID 3
  • RAID 5/5F
  • RAID 6/6F
  • RAID 10
  • RAID 30
  • RAID 50
  • RAID 60

External Ports

SFP28 Ports:

  • 4 x Onboard 25GbE Ports (SFP28)


SAS Ports:

  • 4 x Onboard SAS Expansion Ports


Host Board Slots:

  • 4 x Host Board Slots


Host board options:

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 32Gb/s FC x 4
  • 10GbE (SFP+) x 2
  • 25GbE (SFP28) x 2
  • 25GbE (SFP28) x 4
  • 12Gb/s SAS x 2

Chassis

  • Enclosure
  • Height: 130mm
  • Width: 449mm
  • Depth: 509.8mm

Power Supply

  • 2 x 530W (80 PLUS Bronze)

Efficiency

  • Block level: Offline compression, offline deduplication
  • File level: Inline compression, offline deduplication

Data Services

Default software features include:

  • Thin provisioning (block level)
  • Scale-out (file level): 1 appliance per cluster
  • Scale-out (block level): 4 appliances per cluster
  • Snapshot (volume-based): 64 per source volume, 128 per system
  • Local replication: 4 per source volume, 16 per system
  • Remote replication (file level): support Rsync with 128-bit SSH encryption

Optional software features require additional license:

  • HA Service (block level, file level)
  • SSD cache (block level, file level)
  • Automated storage tiering: 4 tiers per pool
  • Advanced scale-out (file level): 4 appliances per cluster
  • Advanced snapshot (folder-based): 1024 per folder (supported on Btrfs file system only)
  • Advanced snapshot (volume-based): 256 per source volume, 4096 per system
  • Advanced local replication: 8 per source volume, 256 per system
  • Advanced remote replication (block level): 8 per source volume, 64 per system

Supported Protocols

  • File level: CIFS/SMB (version 2.0/3.0), NFS (version 2/3/4), AFP (version 3.1.12), FTP/FXP (vsftp 2.3.4), WebDAV (httpd package 2.4.6)
  • Block level: FC, iSCSI, SAS, NVMe/TCP, NVMe/RDMA
  • Object level: RESTful API (Amazon S3-compatible API)
  • GPUDirect Storage (GDS): Supported on NVMe-oF (Block) and NFS over RDMA (File) environments for direct GPU memory access.

  • Scale-out requires NFS version 4 or above.
  • NVMe/RDMA is supported only on host channels with RDMA functionality.

Cloud Gateway

EonCloud Gateway supports integration with the following cloud providers:

  • Amazon S3
  • Baidu Cloud
  • Yandex
  • Microsoft Azure
  • Tencent Cloud
  • hiCloud
  • Alibaba Cloud

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)
  • SMI-S standard interface for hypervisor management applications

Operating System and Hypervisors

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • MacOS X
  • VMware
  • Citrix XenServer
  • OpenStack Cinder
