Infortrend EonStor GS 3024U Storage

With compatibility for 2.5" U.2 NVMe drives, the 2U Infortrend EonStor GS 3024U storage is a 24-bay chassis that features dual controllers each outfitted with Intel Xeon D processors with up to 4x cores and 16GB to 128GB of DDR4 memory. This hybrid flash platform delivers high performance in both file and block environments, while keeping costs down and offering SSD optimization techniques and data protections to safeguard data. Another one of the performance features on this system is GPUDirect, which bypasses the CPU and system memory to directly address the host system GPU for maximum efficiency and low latency.

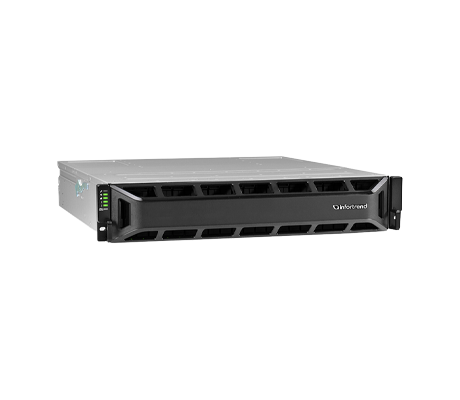

Infortrend GS 3024U front view
Intel Partner Gold

Infortrend EonStor GS 3024U Storage - System Overview

Additional Information

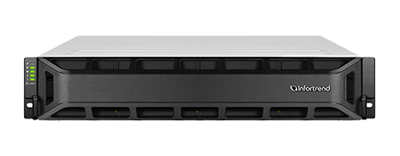

Infortrend GS 3024U front view

The EonStor GS 3024U storage can handle up to 896 drives with up to 15x mixed expansion enclosures or 3584 drives with scale-out with other Series of appliances per cluster. Dual redundant 530W 80 PLUS power supplies are mounted on the rear. Each controller has 2x optional host board slots for expansion, a mini-USB connector, and an Ethernet management port. For increased productivity, users can increase storage and service efficiency using EonOne, Infortrend’s web-based administration software package. The intuitive interface allows IT administrators to manage several appliances or a cluster, monitor capacity utilization and performance, and complete system configurations from a single, central interface.

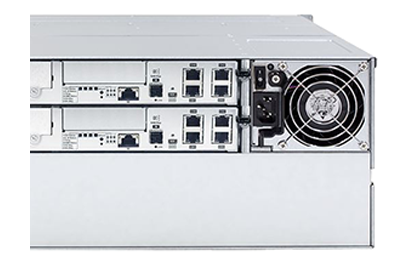

Infortrend EonStor GS 3024U Storage rear view

Standard

EonStor GS 3024UR
  • NVMe storage, Dual redundant controllers, Intel Xeon D 4-core CPUs

A variety of operating systems are available, including MacOS X, VMware, Red Hat Enterprise Linux, and SUSE Linux. A number of Cloud Services are also supported. The GS 3024U also offers near-zero RTO (recovery time objective) and zero RPO (recovery point objective) HA (high-availability) services for continuous availability. This solution ensures that complete and identical copies of the data are stored and prevents service disruptions caused by unplanned or planned events. Auto-failback, a feature of block-level HA services, allows a storage device to resume operations without requiring a human switch.

Infortrend EonStor GS 3024U Storage - Specifications

Processor - 1 Socket

  • Intel Xeon D 4-core CPU
  • TDP up to 45W

Cache Memory

  • Default DDR4 16GB, up to 128GB

Drive Bays

Front Bays:

  • 24 x 2.5-inch U.2 NVMe SSD

Max Drive Number:

  • Per Appliance: 896 (via expansion enclosures)
  • Per Cluster: 3584 (via scale-out with other hseries of appliances)

RAID Options

  • RAID 0
  • RAID 1
  • RAID 3
  • RAID 5/5F
  • RAID 6/6F
  • RAID 10
  • RAID 30
  • RAID 50
  • RAID 60

Expansion Enclosures (JBODs)

  • JB 3012A
  • JB 3016A
  • JB 3024BA
  • JB 3025BA
  • JB 3060L
  • JB 3090

Host Board Options

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 32Gb/s FC x 4
  • 10GbE (RJ45+) x 2
  • 25GbE (SFP28) x 2
  • 25GbE (SFP28) x 4
  • 12Gb/s SAS x 2

Chassis

  • Enclosure
  • Height: 88mm
  • Width: 449mm
  • Depth: 500mm
  • Weigth: 58.42 (26.5kg)

Power Supply

  • 2 x 530W 80 PLUS Bronze

Efficiency

  • Block level: Offline compression, offline deduplication
  • File level: Inline compression, offline deduplication

Data Services

Default software features include:

  • Thin provisioning (block level)
  • Scale-out (file level): 1 appliance per cluster
  • Scale-out (block level): 4 appliances per cluster
  • Snapshot (volume-based): 64 per source volume, 128 per system
  • Local replication: 4 per source volume, 16 per system
  • Remote replication (file level): support Rsync with 128-bit SSH encryption

Optional software features require additional license:

  • HA Service (block level, file level)
  • SSD cache (block level, file level)
  • Automated storage tiering: 4 tiers per pool
  • Advanced scale-out (file level): 4 appliances per cluster
  • Advanced snapshot (folder-based): 1024 per folder (supported on Btrfs file system only)
  • Advanced snapshot (volume-based): 256 per source volume, 4096 per system
  • Advanced local replication: 8 per source volume, 256 per system
  • Advanced remote replication (block level): 8 per source volume, 64 per system

Supported Protocols

  • File level: CIFS/SMB (version 2.0/3.0), NFS (version 2/3/4), AFP (version 3.1.12), FTP/FXP (vsftp 2.3.4), WebDAV (httpd package 2.4.6)
  • Block level: FC, iSCSI, SAS, NVMe/TCP, NVMe/RDMA
  • Object level: RESTful API (Amazon S3-compatible API)
  • GPUDirect Storage (GDS): Supported on NVMe-oF (Block) and NFS over RDMA (File) environments for direct GPU memory access.

  • Scale-out requires NFS version 4 or above.
  • NVMe/RDMA is supported only on host channels with RDMA functionality.

Cloud Gateway

EonCloud Gateway supports integration with the following cloud providers:

  • Amazon S3
  • Baidu Cloud
  • Yandex
  • Microsoft Azure
  • Tencent Cloud
  • hiCloud
  • Alibaba Cloud

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)
  • SMI-S standard interface for hypervisor management applications

Operating System and Hypervisors

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • MacOS X
  • VMware
  • Citrix XenServer
  • OpenStack Cinder

Infortrend EonStor GS 3024U Storage - Documentation

Infortrend EonStor GS 3024U Storage Data Sheet Infortrend Expansion Enclosure Guide Infortrend EonStor GS 3024U Front and Back View Infortrend EonStor GS Compatibility Guide Infortrend GS Host Board and Memory Guide
