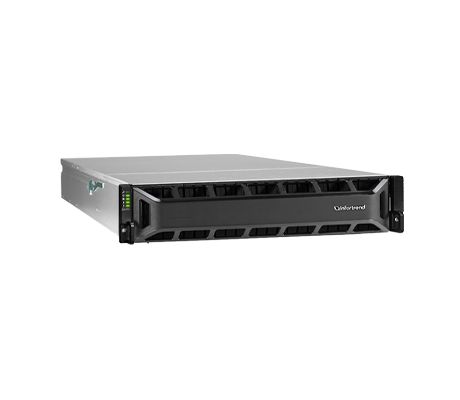

The 2U Infortrend EonStor GS 3025 Gen2 storage appliance is part of the EonStor GS 3000B family and offers single or dual controllers. It is designed for high availability SAS as a unified storage solution and hybrid environments running SAN, NAS, and cloud integration. It provides performance and high-capacity for budget conscious applications and general storage needs.
Infortrend EonStor GS 3025 Gen2 Storage - System Overview
Additional Information
Controllers supported on the Infortrend EonStor GS 3025 Gen2 feature an intel Xeon D processor with 4x cores and a default memory compliment of 8GB DDR4 cache memory that can be boosted to 256GB. With dual controllers, those numbers are doubled to 16GB of cache memory by default, which can be boosted to 512GB between the 2x controllers. The platform delivers 25x 2.5” storage bays but storage capacity can be easily expanded. Connected to Just a Bunch of Disks (JBOD) expansion enclosures, each GS unit can scale-up to accommodate up to 896 drives, maximum. When connected with up to 4x other Series appliances, the system can scale-out to support up to 3584 drives, per cluster.
Infortrend EonStor GS 3025R2B Gen2, 2x controllers easily for redundancy

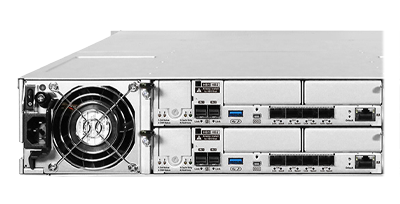

Each controller delivers 2x SAS expansion slots for daisy-chaining JBOD expansion enclosures, 4x host port connectors and a single RJ45 management port. Up to 2x additional optional host boards can be installed in each controller to linearly increase storage capacity. For managing the system, Infortrend provides EonOne, an intuitive web-based utility to help monitor, manage and allocate resources. Using Infortrends RAID technology, users can ensure data protection in the event of a power failure. Snapshot enables scheduled, automated backups of local resources and includes a rollback feature to the previous version if needed. EonStor GS can also be used as a backup platform for all of your data and can operate automatically on a schedule for the least impact on users and network assets.
Get a quote for Infortrend EonStor GS 3025 Gen2 Storage
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
