Infortrend EonStor GS 3040 Gen3 Storage

The Infortrend EonStor GS 3040 Gen3 Storage appliance features 1x or 2x, redundant controllers. It is designed for SAN and NAS environments. Configuration options include the GS 3040ST3 with a single controller and the GS 3040ST3C also with a single controller but a U.2 SSD Cache. There are also the GS 3040RT3 with dual, redundant controllers and the GS 3040RT3C with dual, redundant controllers and the addition of a U.2 SSD cache. A single Intel Xeon D 4-core processor is available on each controller, which offers a default memory capacity of 12GB of DDR4 memory that can be increased to 192GB.

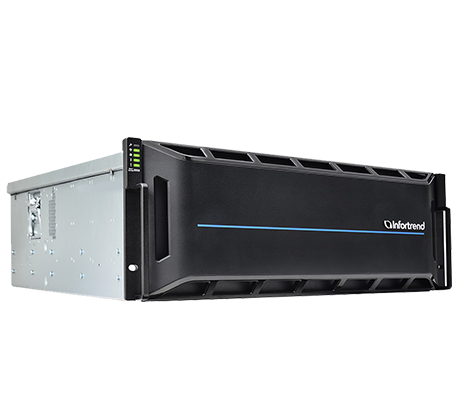

Infortrend GS 3040 Gen3 side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

GS 3040 Gen3 Storage

GS 3040ST3

Single upgradable to dual redundant controllers

GS 3040 Gen3 Storage

GS 3040ST3C

Single upgradable to dual redundant controllers with U.2 SSD Cache

GS 3040 Gen3 Storage

GS 3040RT3

Dual redundant controllers

GS 3040 Gen3 Storage

GS 3040RT3C

Dual redundant controllers with U.2 SSD Cache

Infortrend EonStor GS 3040 Gen3 Storage - System Overview

Additional Information

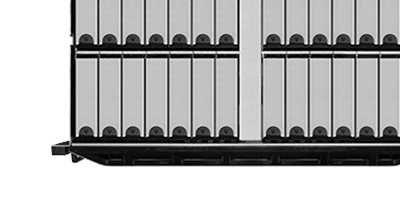

Infortrend GS 3040 Gen3 top detail view

Housing 40x 3.5-inch drive bays accessible from the top of the chassis, the Infortrend GS 3040 Gen3 Storage appliance supports both 3.5-inch and 2.5-inch SAS and SATA drives. The ST3C and RT3C configurations also support U.2 NVMe SSDs. Using expansion enclosures, up to 896x drives are supported. 3584x drives can be supported per cluster via scale-out. A single Intel Xeon D processor with up to 4x physical cores provides compute for each controller. Memory capacity ranges between the default of 12GB of DDR4 memory and 192GB of DDR4 memory. On the rear of each controller, there are dual SAS expansion ports as well as a dedicated LAN management port. 2x host board slots are also available for optional NICs. These slots are compatible with SFP+, RJ-45 ports, Fiber Channel (FC), and SAS options, granting access to varying speeds and port configurations based on your needs. Four different platforms are available on this storage device.

Infortrend EonStor GS 4040RT3 Gen3

  • Dual Redundant Controllers

Infortrend EonStor GS 4040ST3 Gen3

  • Single Controller

Infortrend EonStor GS 4040RT3C Gen3

  • Dual Redundant Controllers with U.2 SSD Cache

Infortrend EonStor GS 4040ST3C Gen3

  • Single Controller with U.2 SSD Cache

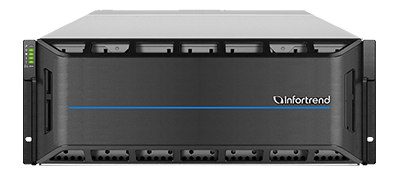

Infortrend EonStor GS 3040 Gen3 Storage front view

A single controller configured system can be easily upgraded to house a second, redundant controller. SAS, SATA, and U.2 NVMe drives are supported. Daisy-chaining this system with other JBOD enclosures offer up to 896x drive bays. A full range of RAID options grant data security and redundancy in the case of a failure. System management is achieved via the Infortrend EonOne web-based management software which grants access to various management tools. Dual 1200W 80 PLUS Platinum power supplies power this system.

Infortrend EonStor GS 3040 Gen3 Storage - Specifications

System Controllers

    GS 4040ST3 Gen3:
    • Single Controller
    GS 4040RT3 Gen3:
    • Dual Redundant Controllers
    GS 4040ST3C Gen3:
    • Dual Redundant Controllers with U.2 SSD Cache
    GS 4040RT3C Gen3:
    • Dual Redundant Controllers with U.2 SSD Cache

Per Controller

    Processor:
    • Intel Xeon D 4-Core
    • Up to 8x threads
    • TDP up to 70W
    Cache Memory:
    • Default DDR4 12GB, up to 192GB
    Ports:
    • 2 x Optional Host Board Slots
    • 2 x SAS Expansion Ports
    • 1 x USB 3.0 Port (for service only)
    • Ethernet Management Port
    • Mini USB connector

Host board Options

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 32Gb/s FC x 4
  • 10GbE (SFP+) x 2
  • 25GbE (SFP28) x 2
  • 25GbE (SFP28) x 4
  • 100GbE (QSFP28) x 1, RDMA
  • 100GbE (QSFP28) x 2, RDMA
  • 12Gb/s SAS x 2

Drive Bays

    Front Bays:
    • 40 x 3.5-inch drive bays
    Max Drive Number:
    • Per Appliance: 896 (via expansion enclosures)
    • Per Cluster: 3584 (via scale-out with other series of appliances)
    Compatible Drives:
    • 2.5" SAS SSD
    • 2.5" 12Gb/s SAS 10,000 RPM HDD
    • 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
    • 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD (for single-controller models only)
    • 2.5" U.2 NVMe SSD (for U.2 SSD cache models; must be purchased from Infortrend)

RAID Options

  • RAID 0
  • RAID 1
  • RAID 3
  • RAID 5/5F
  • RAID 6/6F
  • RAID 10
  • RAID 30
  • RAID 50
  • RAID 60

Expansion Enclosures (JBODS)

  • JB 3012A
  • JB 3016A
  • JB 3060L
  • JB 3090

Chassis

    4U Enclosure

    Height: 176mm

    Width: 443.2mm

    Depth: 735.8mm

Power Supply

  • 2 x 1200W (80 PLUS Platinum)

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)
  • SMI-S standard interface for hypervisor management applications

Operating System and Hypervisors

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • MacOS X
  • VMware
  • Citrix XenServer
  • OpenStack Cinder
