Infortrend EonStor GS 3060 Gen3 Storage

Designed for NAS and SAN environments, the Infortrend EonStor GS 3060 Gen3 Storage appliance is housed in a 4U chassis. Accessible from the top of the system, 60x 3.5-inch drive bays can be populated with both 3.5-inch and 2.5-inch SATA/SAS drives. This appliance has four different configurations. The GS 3060ST3 houses a single compute controller, while the GS 3060ST3C also has a single controller with U.2 SSD cache. Other options include the GS 3060RT3, which houses dual redundant controllers, while the GS 3060RT3C houses dual controllers too, with U.2 SSD cache. Each controller supports a single Intel Xeon D processor with 4x cores.

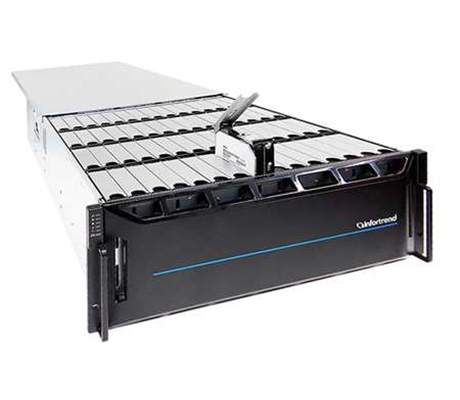

Infortrend GS 3060 Gen3 side view
Intel Partner Gold

Infortrend GS 3060 Gen3 Storage

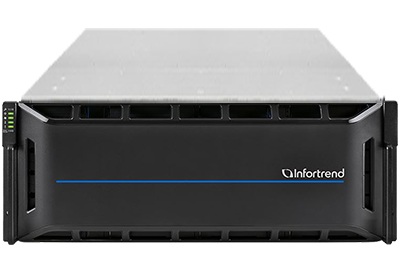

GS 3060S3

Single upgradable to dual redundant controllers

Infortrend GS 3060 Gen3 Storage

GS 3060S3C

Single upgradable to dual redundant controllers with U.2 SSD Cache

Infortrend GS 3060 Gen3 Gen2 Storage

GS 3060R3

Dual redundant controllers

Infortrend GS 3060 Gen3 Gen2 Storage

GS 3060R3C

Dual redundant controllers with U.2 SSD Cache

Infortrend EonStor GS 3060 Gen3 Storage - System Overview

Additional Information

Infortrend GS 3060 Gen3 top detail view

The ST3C and RT3C configuration options also support U.2 NVMe drives. Additional expansion enclosures increase the drive capacity to 896x. Using scale-out, up to 3584x drives can be supported per cluster. In addition to the single CPU, each controller has a default cache memory capacity of 8GB of DDR4 memory that can be increased to 192GB. Each controller also houses dual SAS expansion ports as well as a dedicated LAN management port on the rear. 2x host board slots are also available for the installation of optional NICs. The optional host boards are compatible with SFP+, RJ-45 ports, SAS, and Fiber Channel (FC) options. With one 100GbE (QSFP28) RDMA network interface controller (NIC) installed in 2x host boards will provide a maximum throughput of 100Gb/s. For RDMA applications at least 24GB is required per controller. Varying speeds and port configurations are available to choose from depending on your needs.

Infortrend EonStor GS 3060R3 Gen3

  • Dual Redundant Controllers

Infortrend EonStor GS 3060S3 Gen3

  • Single Controller

Infortrend EonStor GS 3060R3C Gen3

  • Dual Redundant Controllers with U.2 SSD Cache

Infortrend EonStor GS 3060S3C Gen3

  • Single Controller with U.2 SSD Cache

Infortrend EonStor GS 3060 Gen3 Storage front view

Another one of the performance features on this system is GPUDirect, which bypasses the CPU and system memory to directly address the host system GPU for maximum efficiency and low latency. Upgrading a system with a single controller to house a second, redundant controller is a simple process. Daisy-chaining the Infortrend GS 3060 Gen3 Storage appliance with other JBOD enclosures offers up to 896x drive bays. Data redundancy and security is available through a full range of RAID options, protecting your data from potential failures. The Infortrend EonOne web-based management software grants access to various management tools. Dual 1200W 80W PLUS Platinum power supplies power this system.

Infortrend EonStor GS 3060 Gen3 Storage - Specifications

System Controllers

GS 3060S3 Gen3:

  • Single Controller

GS 3060R3 Gen3:

  • Dual Redundant Controllers

GS 3060R3C Gen3:

  • Dual Redundant Controllers with U.2 SSD Cache

GS 3060S3C Gen3:

  • Dual Redundant Controllers with U.2 SSD Cache

Per Controller

Processor:

  • Intel Xeon D 4-Core
  • Up to 8x threads
  • TDP up to 70W

Cache Memory:

  • Default DDR4 12GB, up to 192GB

Ports:

  • 2 x Optional Host Board Slots
  • 2 x SAS Expansion Ports
  • 1 x USB 3.0 Port (for service only)
  • Ethernet Management Port
  • Mini USB connector

Host board Options

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 32Gb/s FC x 4
  • 10GbE (SFP+) x 2
  • 25GbE (SFP28) x 2
  • 25GbE (SFP28) x 4
  • 100GbE (QSFP28) x 1, RDMA
  • 100GbE (QSFP28) x 2, RDMA
  • 12Gb/s SAS x 2

Drive Bays

Top Loaded Bays:

  • 60 x 3.5-inch drive bays

Max Drive Number:

  • Per Appliance: 896 (via expansion enclosures)
  • Per Cluster: 3584 (via scale-out with other series of appliances)

Compatible Drives:

  • 2.5" SAS SSD
  • 2.5" 12Gb/s SAS 10,000 RPM HDD
  • 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
  • 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD (for single-controller models only)
  • 2.5" U.2 NVMe SSD (for U.2 SSD cache models; must be purchased from Infortrend)

RAID Options

  • RAID 0
  • RAID 1
  • RAID 3
  • RAID 5/5F
  • RAID 6/6F
  • RAID 10
  • RAID 30
  • RAID 50
  • RAID 60

Expansion Enclosures (JBODS)

  • JB 3012A
  • JB 3016A
  • JB 3060L
  • JB 3090

Chassis

  • 4U Enclosure
  • Height: 176mm
  • Width: 443.2mm
  • Depth: 849.8mm

Power Supply

  • 2 x 1200W (80 PLUS Platinum)

Efficiency

  • Block level: Offline compression, offline deduplication
  • File level: Inline compression, offline deduplication

Data Services

Default software features include:

  • Thin provisioning (block level)
  • Scale-out (file level): 1 appliance per cluster
  • Scale-out (block level): 4 appliances per cluster
  • Snapshot (volume-based): 64 per source volume, 128 per system
  • Local replication: 4 per source volume, 16 per system
  • Remote replication (file level): support Rsync with 128-bit SSH encryption

Optional software features require additional license:

  • HA Service (block level, file level)
  • SSD cache (block level, file level)
  • Automated storage tiering: 4 tiers per pool
  • Advanced scale-out (file level): 4 appliances per cluster
  • Advanced snapshot (folder-based): 1024 per folder (supported on Btrfs file system only)
  • Advanced snapshot (volume-based): 256 per source volume, 4096 per system
  • Advanced local replication: 8 per source volume, 256 per system
  • Advanced remote replication (block level): 8 per source volume, 64 per system

Supported Protocols

  • File level: CIFS/SMB (version 2.0/3.0), NFS (version 2/3/4), AFP (version 3.1.12), FTP/FXP (vsftp 2.3.4), WebDAV (httpd package 2.4.6)
  • Block level: FC, iSCSI, SAS, NVMe/TCP, NVMe/RDMA
  • Object level: RESTful API (Amazon S3-compatible API)
  • GPUDirect Storage (GDS): Supported on NVMe-oF (Block) and NFS over RDMA (File) environments for direct GPU memory access.

  • Scale-out requires NFS version 4 or above.
  • NVMe/RDMA is supported only on host channels with RDMA functionality.

Cloud Gateway

EonCloud Gateway supports integration with the following cloud providers:

  • Amazon S3
  • Baidu Cloud
  • Yandex
  • Microsoft Azure
  • Tencent Cloud
  • hiCloud
  • Alibaba Cloud

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)
  • SMI-S standard interface for hypervisor management applications

Operating System and Hypervisors

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • MacOS X
  • VMware
  • Citrix XenServer
  • OpenStack Cinder
