Infortrend EonStor GS 4024 Gen3 Storage

The 4U Infortrend EonStor GS 4024 Gen3 Storage appliance delivers great performance with read speeds of 16GB/s and write speeds of 12GB/s. Ideal for SAN and NAS environments; this system comes in two configurations. The EonStor GS 4024S3 houses a single controller, which can be upgraded to house dual redundant controllers. The EonStor GS 4024R3 houses 2x redundant controllers. Each controller supports a single Intel Xeon D 6-core processor and between 8GB and 192GB of cache memory.

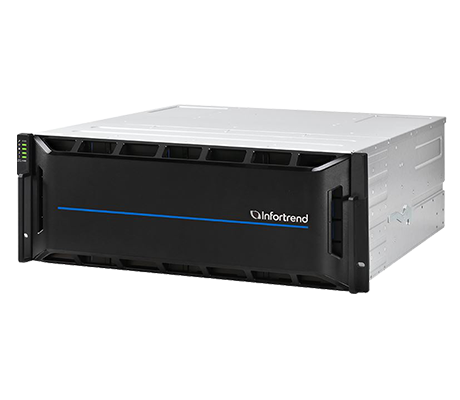

Infortrend GS 4024 Gen3 side view
Intel Partner Gold

Infortrend GS 4024 Gen3 Storage

GS 4024S3

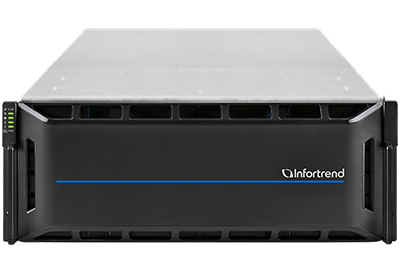

Single upgradable to dual redundant controllers

Infortrend GS 4024 Gen3 Gen2 Storage

GS 4024R3

Dual redundant controllers

Infortrend EonStor GS 4024 Gen3 Storage - System Overview

Additional Information

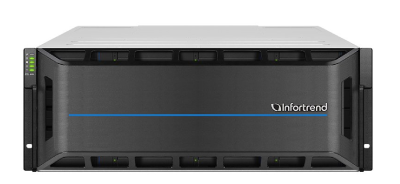

Infortrend GS 4024 Gen3 front view

Another one of the performance features on this system is GPUDirect, which bypasses the CPU and system memory to directly address the host system GPU for maximum efficiency and low latency. On the front of Infortrend GS 4024 Gen3 storage device, there are 24x 3.5-inch drive bays which are compatible with 2.5-inch drive form factors as well. A single controller supports an Intel Xeon D 6-core processor, up to 192GB of cache memory, 2x SAS expansion ports, a dedicated management port, and dual host board slots for optional NICs. Available options include Fiber Channel (FC), SFP+, RJ-45 ports and SAS options. There are 2 base configuration options for this system.

Infortrend EonStor GS 4024R3 Gen3

  • Dual Redundant Controllers

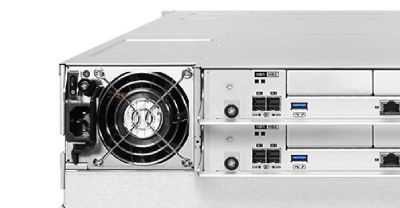

Infortrend EonStor GS 4024 Gen3 Storage rear view

Infortrend EonStor GS 4024S3 Gen3

  • Single Controller

Daisy-chaining this platform with other JBOD expansion enclosures will enable a scale-up of up to 896x drives via an expansion enclosure. Via scale-out per cluster with other series appliances it can provide a maximum of up to 3584x drives. SAS, SATA, and U.2 NVMe drives are supported on this system with a full range of RAID options. Infortrend’s EonOne web-based management suite is available. Dual 530W 80 Plus power supplies power this system.

Infortrend EonStor GS 4024 Gen3 Storage - Specifications

System Controllers

GS 4024S3 Gen3:

  • Single Controller

GS 4024R3 Gen3:

  • Dual Redundant Controllers

Per Controller

Processor:

  • Intel Xeon D 6-Core
  • Up to 12x threads
  • TDP up to 70W

Cache Memory:

  • Default DDR4 8GB, up to 192GB

Ports:

  • 2 x Optional Host Board Slots
  • 2 x SAS Expansion Ports
  • 1 x USB 3.0 Port (for service only)
  • Ethernet Management Port
  • Mini USB connector

Host board Options

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 32Gb/s FC x 4
  • 10GbE (SFP+) x 2
  • 25GbE (SFP28) x 2
  • 25GbE (SFP28) x 4
  • 100GbE (QSFP28) x 1, RDMA
  • 100GbE (QSFP28) x 2, RDMA
  • 12Gb/s SAS x 2

Drive Bays

Front Bays:

  • 24 x 3.5-inch drive bays

Max Drive Number:

  • Per Appliance: 896 (via expansion enclosures)
  • Per Cluster: 3584 (via scale-out with other series of appliances)

Compatible Drives:

  • 2.5" SAS SSD
  • 2.5" 12Gb/s SAS 10,000 RPM HDD
  • 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
  • 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD (for single-controller models only)
  • 2.5" U.2 NVMe SSD (for U.2 SSD cache models; must be purchased from Infortrend)

RAID Options

  • RAID 0
  • RAID 1
  • RAID 3
  • RAID 5/5F
  • RAID 6/6F
  • RAID 10
  • RAID 30
  • RAID 50
  • RAID 60

Expansion Enclosures (JBODS)

  • JB 3012A
  • JB 3016A
  • JB 3060L
  • JB 3090

Chassis

  • 4U Enclosure
  • Height: 174.6mm
  • Width: 449mm
  • Depth: 509.8mm

Power Supply

  • 2 x 530W (80 PLUS Bronze)

Efficiency

  • Block level: Offline compression, offline deduplication
  • File level: Inline compression, offline deduplication

Data Services

Default software features include:

  • Thin provisioning (block level)
  • Scale-out (file level): 1 appliance per cluster
  • Scale-out (block level): 4 appliances per cluster
  • Snapshot (volume-based): 64 per source volume, 128 per system
  • Local replication: 4 per source volume, 16 per system
  • Remote replication (file level): support Rsync with 128-bit SSH encryption

Optional software features require additional license:

  • HA Service (block level, file level)
  • SSD cache (block level, file level)
  • Automated storage tiering: 4 tiers per pool
  • Advanced scale-out (file level): 4 appliances per cluster
  • Advanced snapshot (folder-based): 1024 per folder (supported on Btrfs file system only)
  • Advanced snapshot (volume-based): 256 per source volume, 4096 per system
  • Advanced local replication: 8 per source volume, 256 per system
  • Advanced remote replication (block level): 8 per source volume, 64 per system

Supported Protocols

  • File level: CIFS/SMB (version 2.0/3.0), NFS (version 2/3/4), AFP (version 3.1.12), FTP/FXP (vsftp 2.3.4), WebDAV (httpd package 2.4.6)
  • Block level: FC, iSCSI, SAS, NVMe/TCP, NVMe/RDMA
  • Object level: RESTful API (Amazon S3-compatible API)
  • GPUDirect Storage (GDS): Supported on NVMe-oF (Block) and NFS over RDMA (File) environments for direct GPU memory access.

  • Scale-out requires NFS version 4 or above.
  • NVMe/RDMA is supported only on host channels with RDMA functionality.

Cloud Gateway

EonCloud Gateway supports integration with the following cloud providers:

  • Amazon S3
  • Baidu Cloud
  • Yandex
  • Microsoft Azure
  • Tencent Cloud
  • hiCloud
  • Alibaba Cloud

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)
  • SMI-S standard interface for hypervisor management applications

Operating System and Hypervisors

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • MacOS X
  • VMware
  • Citrix XenServer
  • OpenStack Cinder
