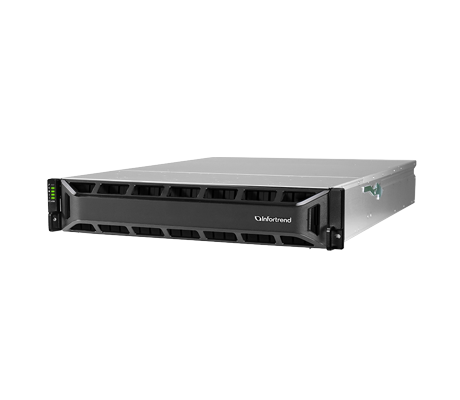

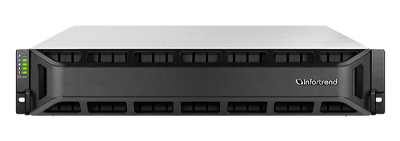

Designed for demanding workloads in SAN/NAS environments, the Infortrend EonStor GS 4025 Gen2 Storage appliance can handle large amounts of I/O and file transfers. Behind the optional front panel there are 25x 2.5-inch SAS or SATA HDDs/SSDs, which can be scaled up and expanded when connected to JBOD expansion enclosures. A total of 448 drives are supported with within 15x mixed expansion enclosures, with dual redundant SAS expansion boards up to 896 drive maximum are supported. The system can also scale-out to up to 3584 drives with over 70PB of storage capacity, per cluster.
Infortrend EonStor GS 4025 Gen2 Storage - System Overview
Additional Information

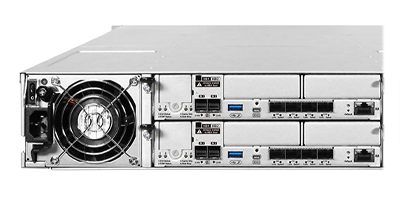

The Infortrend GS 4025 Gen2 is part of the GS 4000B Gen2 family of storage appliances and supports either a single controller or dual redundant controllers. A single Intel Xeon D 8-core processor installed each controller. By default, the system provides 8GB of cache memory, which can be expanded to 256GB of DDR4 cache memory when configured with a single controller. In a dual-controller setup, cache memory expands from a default of 16GB with the option to add up to 512GB. With dual controllers, it features up to 4x optional host board slots, accessible from the rear of the chassis. The dual-controller configuration ensures continuous operation if one controller fails, leaving the other to automatically take over within seconds to prevent system downtime. The appliance can achieve throughput speeds of up to 11GB/s for read operations and 8GB/s for write operations.
GS 4025S2B 25x storage bays, single controller upgradable to 2x controllers, 2x host boards
The Infortrend GS 4025 Gen2 is powered by EonOne, Infortrend’s web-based management suite, allowing users to monitor clusters, manage multiple appliances, track system performance, and configure settings. The 25-bay system supports a wide array of operating systems including Windows Server, OpenStack Cinder, macOS X, and Sun Solaris, making it ideal for diverse IT environments. For enhanced reliability and continuous uptime, the GS 4025B Gen2 comes equipped with dual redundant 530W 80 PLUS Bronze-certified power supplies.
Get a quote for Infortrend EonStor GS 4025 Gen2 Storage
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
