Infortrend EonStor GS 4090 Gen3 Storage

The Infortrend EonStor GS 4090 Gen3 Storage has 4x configuration options, a standard version with SAS/SATA HDDs and a performance option with U.2 NVMe SSDs. Both offer single or dual redundant controllers depending on your choice. These controllers support 6-core Intel Xeon D processors, with single controllers delivering 16GB up to 192GB DDR4 of cache memory, and 32GB up to 384GB DDR4 of cache memory with dual controllers. Under the 4U hood, it houses 90x 3.5” drive bays for SAS and SATA HDDs, meanwhile the 2x performance configurations, the EonStor GS 4090R3C and GS 4090S3C, support U.2 NVMe SSDs.

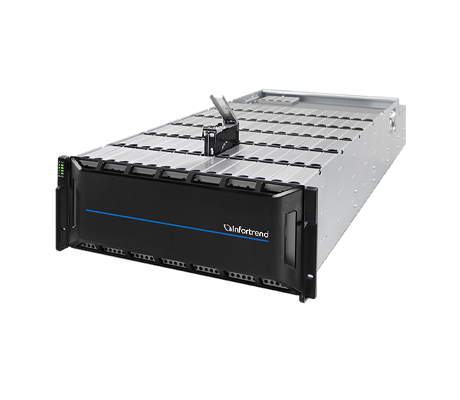

Infortrend GS 4090 Gen3 front view
Intel Partner Gold

Infortrend EonStor GS 4090 Gen3 Storage - System Overview

Additional Information

Infortrend GS 4090 front view Infortrend EonStor GS 4090 Storage rear view

It’s important to note that the performance models support U.2 SSDs with an additional 4x drive bays grouped together near the back of the system, for a total of 94x drive trays. The cloud-integrated unified EonStor GS 4090 Gen3 storage supports NAS, SAN, object protocol, and cloud gateway. This storage can take on complex data by scaling up with JBOD expansion system for up to 896 drives. If they are scaled out with other series appliances, per cluster, a maximum of 3584 drives can be accommodated. A single controller features 2x host board slots for optional I/O, plus 2x 12Gb/s SAS ports, 1x Ethernet management port, a single mini-USB connector, and 1x super capacitor with flash module in case of a power outage. If an element fails, emails or the Simple Network Management Protocol (SNMP) can be used to send notifications. Another one of the performance features on this system is GPUDirect, which bypasses the CPU and system memory to directly address the host system GPU for maximum efficiency and low latency.

Infortrend’s EonOne software suite can manage the system, and operating systems like Windows Server, OpenStack Cinder, Citrix XenServer, and macOS X are also supported. The system is powered by two redundant 1600W 80 PLUS Titanium power supply units.

Standard Configuration – SAS/SATA HDDs
  • GS 4090S3 - Single upgradable to dual redundant controllers, SATA/SAS, Gen3
  • GS 4090R3 - Dual redundant controllers, SATA/SAS, Gen3

Performance Configuration – U.2 NVMe SSDs
  • GS 4090S3C - Single upgradable to dual redundant controllers, NVMe, Gen3
  • GS 4090R3C - Dual redundant controllers, NVMe, Gen3

Infortrend EonStor GS 4090 Gen3 Storage - Specifications

System Controllers

Standard Configuration – SAS/SATA HDDs

  • GS 4090S3 - Single upgradable to dual redundant controllers, SATA/SAS, Gen3
  • GS 4090R3 - Dual redundant controllers, SATA/SAS, Gen3

Performance Configuration – U.2 NVMe SSDs

  • GS 4090S3C - Single upgradable to dual redundant controllers, NVMe, Gen3
  • GS 4090R3C - Dual redundant controllers, NVMe, Gen3

Per Controller

Processor:

  • Intel Xeon D 6-Core
  • TDP up to 75W

Cache Memory:

  • Default 16GB to 192GB of DDR4

Ports:

  • 2 x Optional Host Board Slots
  • 2 x SAS Expansion Ports
  • 1 x USB 3.0 Port (for service only)
  • Ethernet Management Port
  • Mini USB connector

Host Board Options

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 32Gb/s FC x 4
  • 10GbE (SFP+) x 2
  • 25GbE (SFP28) x 2
  • 25GbE (SFP28) x 4
  • 100GbE (QSFP28) x 1, RDMA
  • 100GbE (QSFP28) x 2, RDMA
  • 12Gb/s SAS x 2

Drive Bays

Front Bays:

  • 90 x 2.5-inch drive bays
  • 4x optional 2.5-inch drive bays

Drive Types:

  • Standard: SAS/SATA HDD
  • Performance: NVME U.2

Max Drive Number:

  • Per Appliance: 896 (via expansion enclosures)
  • Per Cluster: 3584 (via scale-out with other series of appliances)

RAID Options

  • RAID 0
  • RAID 1
  • RAID 3
  • RAID 5/5F
  • RAID 6/6F
  • RAID 10
  • RAID 30
  • RAID 50
  • RAID 60

Expansion Enclosures (JBODs)

  • JB 3012A
  • JB 3016A
  • JB 3060L
  • JB 3090

Chassis

  • Enclosure
  • Height: 176mm
  • Width: 435mm
  • Depth: 1088.8mm

Power Supply

  • 2 x 1600W 80 PLUS Titanium

Efficiency

  • Block level: Offline compression, offline deduplication
  • File level: Inline compression, offline deduplication

Data Services

Default software features include:

  • Thin provisioning (block level)
  • Scale-out (file level): 1 appliance per cluster
  • Scale-out (block level): 4 appliances per cluster
  • Snapshot (volume-based): 64 per source volume, 128 per system
  • Local replication: 4 per source volume, 16 per system
  • Remote replication (file level): support Rsync with 128-bit SSH encryption

Optional software features require additional license:

  • HA Service (block level, file level)
  • SSD cache (block level, file level)
  • Automated storage tiering: 4 tiers per pool
  • Advanced scale-out (file level): 4 appliances per cluster
  • Advanced snapshot (folder-based): 1024 per folder (supported on Btrfs file system only)
  • Advanced snapshot (volume-based): 256 per source volume, 4096 per system
  • Advanced local replication: 8 per source volume, 256 per system
  • Advanced remote replication (block level): 8 per source volume, 64 per system

Supported Protocols

  • File level: CIFS/SMB (version 2.0/3.0), NFS (version 2/3/4), AFP (version 3.1.12), FTP/FXP (vsftp 2.3.4), WebDAV (httpd package 2.4.6)
  • Block level: FC, iSCSI, SAS, NVMe/TCP, NVMe/RDMA
  • Object level: RESTful API (Amazon S3-compatible API)
  • GPUDirect Storage (GDS): Supported on NVMe-oF (Block) and NFS over RDMA (File) environments for direct GPU memory access.

  • Scale-out requires NFS version 4 or above.
  • NVMe/RDMA is supported only on host channels with RDMA functionality.

Cloud Gateway

EonCloud Gateway supports integration with the following cloud providers:

  • Amazon S3
  • Baidu Cloud
  • Yandex
  • Microsoft Azure
  • Tencent Cloud
  • hiCloud
  • Alibaba Cloud

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)
  • SMI-S standard interface for hypervisor management applications

Operating System and Hypervisors

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • MacOS X
  • VMware
  • Citrix XenServer
  • OpenStack Cinder
