Infortrend EonStor GS 5090 Gen3 Storage

Delivering a SAS 24G expansion interface, the Infortrend EonStor GS 5090 Gen3 Storage is powered by a 12-core Intel Xeon Scalable processor. There are 4x configuration options for this system including those with SAS/SATA HDDs and U.2 NVMe SSDs for high-performance cache. All support a dual redundant or single upgradeable to dual redundant controller, and super capacitor with flash module cache backup technology for performance-hungry applications.

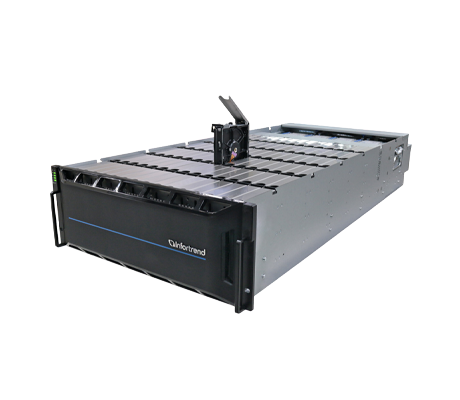

Infortrend EonStor GS 5090 Gen3 side view
Intel Partner Gold

Infortrend EonStor GS 5090 Gen3 Storage - System Overview

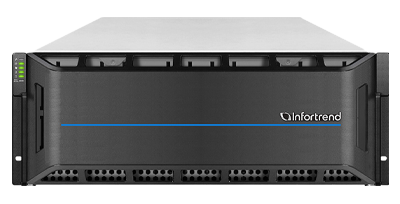

Infortrend GS 5090 Gen3 front viewAdditional Information

A single controller on the Infortrend GS5090 Gen3 Storage supports up to 512GB with up to 64GB DDR5 of cache memory, and up to 1024GB with up to 128GB DDR5 of cache memory with dual controllers. Under the hood, the 4U storage houses 90x 2.5-inch SSDs or 3.5-inch HDDs. It can accommodate up to 896 drive bays per appliance with 15x mixed expansion enclosures, and up to 3,584 drive bays per

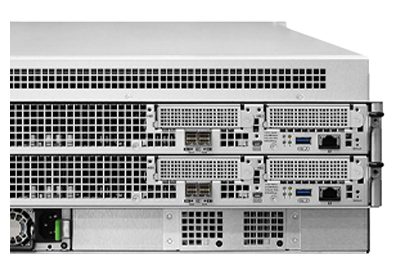

cluster via scale-out with other series of appliances. Used for scale-out high availability unified storage for enterprises, the platform provides massive sequential throughput of up to 45GB/s read and 20GB/s write per appliance, and more than 70PB in a single GS cluster. Host ports range from 12GB/s to 200GbE x 1, RDMA network interfaces. All models in the GS 5000 family are 4U.Infortrend GS 5090 Gen3 close up rear view

Infortrend GS 5090 Gen3 Models

• GS 5090R – 90x storage bays, Intel Xeon Scalable 12-core CPU, 4x host boards
• GS 5090S – 90x storage bays, Intel Xeon Scalable 12-core CPU, 2x host boards
• GS 5090 RC – 94x storage bays (4x for U.2 SSDs), Intel Xeon Scalable 12-core CPU, 4x host boards
• GS 5090 SC – 94x storage bays (4x for U.2 SSDs), Intel Xeon Scalable 12-core CPU, 2x host boards

The 90-bay system can be managed by Infortrend’s EonOne software suite, meanwhile operating systems like Windows Server, OpenStack Cinder, MacOS X, and Sun Solaris are also supported. This machine is powered by dual redundant 2700W 80 PLUS Titanium power supply units.

Infortrend EonStor GS 5090 Gen3 Storage - Specifications

Processor

  • Intel Xeon Scalable 12-Core

Controller

  • Dual redundant or single upgradable to dual redundant

Cache Backup Technology

  • Super capacitor + flash module

Cache Memory

Single Controller

  • Default DDR5 64GB, up to 512GB

Redundant Controller

  • Default DDR5 128GB, up to 1024GB

Drive Bays

Interior Bays:

  • 90x bays
  • 2.5" SAS SSD
  • 2.5" 12Gb/s SAS 10,000 RPM HDD
  • 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
  • 2.5" U.2 NVMe SSD (for U.2 SSD cache models)
  • 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD (for single-controller models only)

Max Drive Number:

  • Per Appliance: 896 (via expansion enclosures)
  • Per Cluster: 3584 (via scale-out with other series of appliances)

Max. SSD Cache Pool (Block Level)

  • 4TB

Host Board Slots

  • 4x host board slots

Host Board Options

  • 32Gb/s FC x 4
  • 25GbE (SFP28) x 2, RDMA
  • 25GbE (SFP28) x 4, RDMA
  • 100GbE (QSFP28) x 1, RDMA
  • 100GbE (QSFP56) x 2, RDMA
  • 200GbE (QSFP56) x 1, RDMA
  • 12Gb/s SAS x 2

Expansion Enclosures (JBODs)

  • JB 3012A, JB 3016A, JB 3024BA, JB 3025BA, JB 3060L, JB 3090, JB 4090

Dimensions (W x H x D)

Without Chassis Ears and Protrusions

  • 435 x 175.8 x 1063 mm

Power Supply

  • 2700W x2 (80 PLUS Titanium)

RAID Options

  • RAID 0
  • RAID 1
  • RAID 3
  • RAID 5/5F
  • RAID 6/6F
  • RAID 10
  • RAID 30
  • RAID 50
  • RAID 60

Efficiency

  • Block level: Offline compression, offline deduplication
  • File level: Inline compression, offline deduplication

Data Services

Default software features include:

  • Thin provisioning (block level)
  • Scale-out (file level): 1 appliance per cluster
  • Scale-out (block level): 4 appliances per cluster
  • Snapshot (volume-based): 64 per source volume, 128 per system
  • Local replication: 4 per source volume, 16 per system
  • Remote replication (file level): support Rsync with 128-bit SSH encryption

Optional software features require additional license:

  • HA Service (block level, file level)
  • SSD cache (block level, file level)
  • Automated storage tiering: 4 tiers per pool
  • Advanced scale-out (file level): 4 appliances per cluster
  • Advanced snapshot (folder-based): 1024 per folder (supported on Btrfs file system only)
  • Advanced snapshot (volume-based): 256 per source volume, 4096 per system
  • Advanced local replication: 8 per source volume, 256 per system
  • Advanced remote replication (block level): 8 per source volume, 64 per system

Supported Protocols

  • File level: CIFS/SMB (version 2.0/3.0), NFS (version 2/3/4), AFP (version 3.1.12), FTP/FXP (vsftp 2.3.4), WebDAV (httpd package 2.4.6)
  • Block level: FC, iSCSI, SAS, NVMe/TCP, NVMe/RDMA
  • Object level: RESTful API (Amazon S3-compatible API)
  • GPUDirect Storage (GDS): Supported on NVMe-oF (Block) and NFS over RDMA (File) environments for direct GPU memory access.

* Scale-out requires NFS version 4 or above.

* NVMe/RDMA is supported only on host channels with RDMA functionality.

Cloud Services

EonCloud Gateway supports integration with the following cloud providers:

  • Amazon S3
  • Baidu Cloud
  • Yandex
  • Microsoft Azure
  • Tencent Cloud
  • hiCloud
  • Alibaba Cloud

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffi c control)
  • SMI-S standard interface for hypervisor management applications
  • Command-line interface (CLI)

Operating System

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • MacOS X
  • VMware
  • Citrix XenServer
  • OpenStack Cinder
