Infortrend EonStor GSe 1012 Gen2 Storage

Additional Information

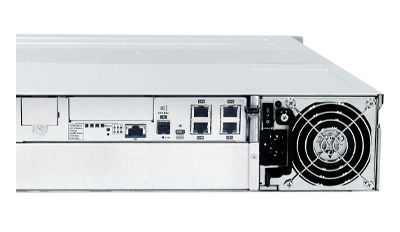

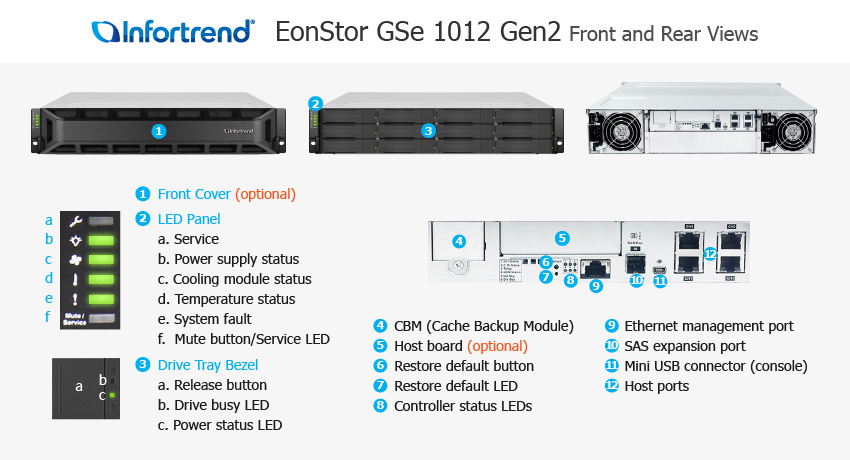

The single controller on the Infortrend EonStor GSe 1012 Gen2 that has a SAS expansion port for attaching additional GSe units, 4x RJ45 host ports and a single Ethernet management port. It can be outfitted with a single host board, which would add more host and expansion ports of various connection speeds and form factors. Host board connection options include Fiber Channel, RJ45, SFP+ and 2x more 12Gb/s SAS ports for connecting expansion enclosures. With additional expansion enclosures, the system can scale-up to 448 drives. Via scale-out by connecting other Infortrend-series appliances, it can provide up to 3,136 drives per cluster.

INFORTREND EONSTOR GSE 1000 GEN2 MODELS

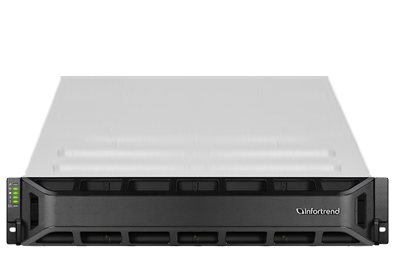

• 2U, 12x 3.5-inch Bays, Single Controller

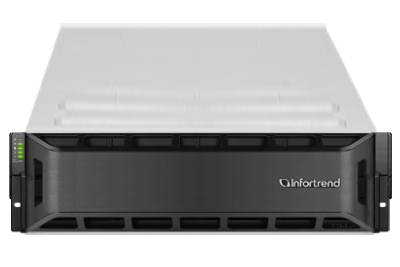

• 3U, 16x 3.5-inch Bays, Single Controller

With Block Level storage, the system can provide offline compression and deduplication, and for File Level, inline compression and offline deduplication—all designed to increase efficiency. To manage the system Infortrend offers EonOne. With EonOne multiple appliances and clusters can easily be monitored for performance and capacity usage, plus providing complete system configurations all from a single user interface.
