Infortrend EonStor GSe 1016 Gen2 Storage

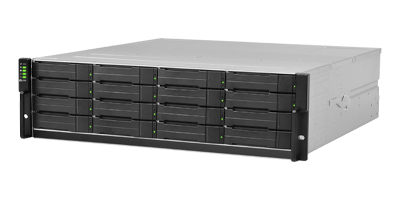

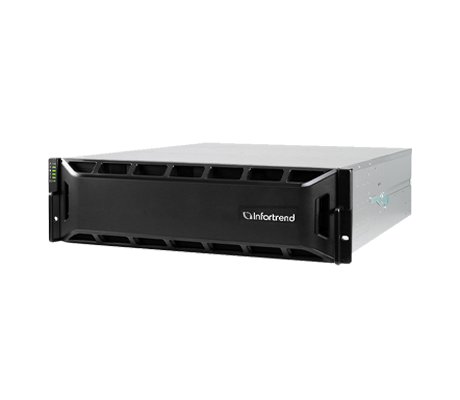

Offering entry-level storage capabilities, the Infortrend EonStor GSe 1016 Gen2 offers a 3U chassis with a single controller. This system allows SMBs and SMEs to integrate and expand their local SAN or NAS storage into cloud services in a simple, cost-effective manner. Featuring 16x 3.5-inch storage bays compatible with SAS and SATA storage devices, with additional expansion enclosures the system can scale-up to 448 drives, per appliance.

Overview

Infortrend EonStor GSe 1016 Gen2 Storage - System Overview

Additional Information

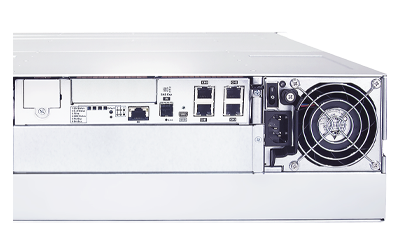

Through scale-out expansion with other Infortrend storage appliances, the Infortrend GSe 1000 Gen2 Appliances can provide up to 3,136 drives, per cluster. The single controller features a 4-core Intel Atom processor with 8GB of DDR3 cache memory by default that can be expanded to up to 16GB. Additionally, the system has 0.6TB of SSD cache to ensure no data is lost in the event of a power failure. The controller offers 4x 1GbE RJ45 ports for host connections plus a single 12Gb/s for connecting additional expansion enclosures. As an option, a host board can be installed offering more connections for both host and expansion enclosures.

INFORTREND EONSTOR GSE 1000 GEN2 MODELS

Infortrend EonStor GSe 1012 Gen2

2U, 12x 3.5-inch Bays, Single Controller

Infortrend EonStor GSe 1016 Gen2

3U, 16x 3.5-inch Bays, Single Controller

Offering easy integration with existing LDAP directory services and Microsoft Active Directory (AD) enables Administrators to easily configure shared folder access by user account through ACL. Management of the system is through Infortrend’s EonOne web-based management software tool, which can help with productivity, configuration, and capacity usage, all from a centralized user interface. There is a full range of RAID options for performance and resilience to choose from with several storage protocols supported.

Specifications

Infortrend EonStor GSe 1016 Gen2 Storage - Specifications

Processor - 1 Socket

Intel Atom 4-Core

Cache Memory

Default DDR3 8GB, up to 16GB

Drive Bays

16 x 3.5-inch drive bays

Expansion Enclosure:

448 x Drive Bays

Compatible Drives:

2.5" SAS SSD
2.5" 12Gb/s SAS 10,000 RPM HDD
3.5" 12Gb/s NL-SAS 7,200 RPM HDD
2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD
2.5" U.2 NVMe SSD (for U.2 SSD cache models; must be purchased from Infortrend)

RAID Options

RAID 0, RAID 1, RAID 3, RAID 5/5F, RAID 6/6F, RAID 10, RAID 30, RAID 50, RAID 60

Max. SSD Cache Pool (Block Level)

0.6TB

Onboard 1GbE Ports (RJ45)

Max. Host Board Slots

Host Board Options

16Gb/s FC x 4
32Gb/s FC x 2
1GbE (RJ45) x 4
10GbE (SFP+) x 2
12Gb/s SAS x 2

Expansion Enclosures (JBODs)

JB 3012A, JB 3016A, JB 3024BA, JB 3025BA, JB 3060L, JB 3090

Chassis

Height: 130mm

Width: 449mm

Depth: 500mm

Power Supply

460W x 2 (80 PLUS Bronze)

Management

Web-based EonOne management software
User account management
Group management
Folder management - folder access control
Quota management
Folder encryption with AES
Integration with Microsoft Active Directory (AD) and Linux LDAP
Storage Resource Management to analyze history of resource usage
Multi-factor authentication login mechanism
File-level QoS (network traffic control)

Operating Systems

Microsoft Windows Server
Red Hat Enterprise Linux
SUSE Linux Enterprise
Sun Solaris
MacOS X
VMware
Citrix XenServer
OpenStack Cinder

Documentation

Infortrend EonStor GSe 1016 Gen2 Storage - Documentation

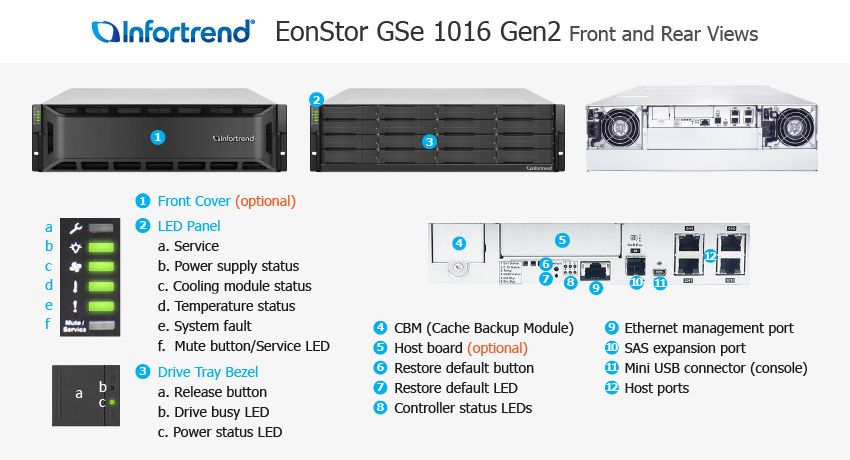

Infortrend EonStor GSe 1016 Gen2 Storage Data Sheet Infortrend EonStor GSe 1016 Gen2 Storage Front and Back View Infortrend EonStor GSe 1016 Gen2 Storage Unpacking List Infortrend EonStor GSe 1000 Gen2 Series Hardware Manual Infortrend EonStor GSe 1000 Gen2 Series Quick Installation Guide Infortrend Expansion Enclosure Guide Infortrend EonStor Command Line Interface Infortrend EonView User Manual
