Infortrend EonStor GSe 3012 Gen3 Storage

Offering unified storage to small and medium-sized businesses, the 12-bay Infortrend EonStor GSe 3012 Gen3 offers performance and easy scalability. It has 12x drive bays and a single controller with 2x slots for optional host boards. Scale-up through the addition of other Infortrend enclosures can provide a maximum of 896 drives within 15x mixed expansion enclosures. through scale-out with other Infortrend-series appliances, this platform can scale to 3584 drives, per cluster.

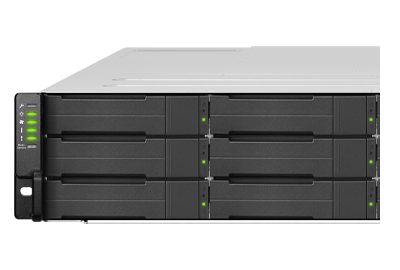

Infortrend GSe 3012 Gen3 front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

GSe 3012

Gen3

2U, 12-bay, single controller

GSe 3012

Gen3

3U, 16-bay, single controller

GSe 3012

Gen3

4U, 24-bay, single controller

GSe 3012

Gen3

4U, 40-bay, single controller

GSe 3012

Gen3

4U, 60-bay, single controller

GSe 3012

Gen3

4U, 90-bay, single controller

Infortrend EonStor GSe 3012 Gen3 Storage - System Overview

Additional Information

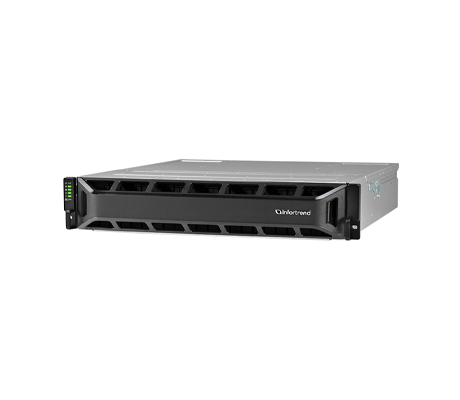

Infortrend GSe 3012 Gen3 front view

The controller on the Infortrend EonStor GSe 3012 Gen3 storage appliance has a single Intel Xeon D processor with 4x cores, 4x onboard 1GbE ports for network communications and a single SAS expansion port. 8GB of DDR4 cache memory can be updated to support up to 192GB of memory. Drive types supported include, SAS, NL-SAS, SATA SSDs, SATA HDDs, and NVMe U.2 for SSD cache. The system also features a maximum of 4TB of SSD cache for block-level storage applications. Offering the ability to expand local SAN and NAS storage into cloud services, this appliance is powered by dual 530W or 800W 80 PLUS Bronze PSUs.

INFORTREND EONSTOR GSE 3000 GEN3 MODELS

Infortrend EonStor GSe 3012 Gen3
  • 2U, 12-bay, single controller
Infortrend EonStor GSe 3016 Gen3
  • 3U, 16-bay, single controller
Infortrend EonStor GSe 3024 Gen3
  • 4U, 24-bay, single controller
Infortrend EonStor GSe 3040 Gen3
  • 4U, 40-bay, single controller
Infortrend EonStor GSe 3060 Gen3
  • 4U, 60-bay, single controller
Infortrend EonStor GSe 3090 Gen3
  • 4U, 90-bay, single controller

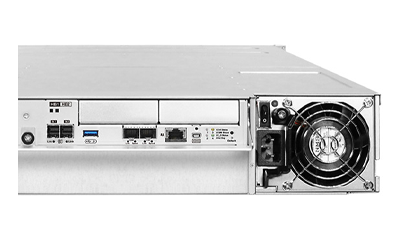

Infortrend EonStor GSe 3012 Gen3 Storage rear view

To prevent data loss in the event of a power failure, the system is equipped with a cache backup module (CBM), which includes a supercapacitor and flash module. To minimize risk from unexpected occurrences, the GSe system supports several backup options including, Intelligent Drive Recovery (IDR), snapshot, local/remote replication, and file-level sync. There are also several RAID options to choose from depending on your storage needs for resilience and performance. A number of private and public cloud services are supported including Amazon 53 and Microsoft Azure. Using Infortrend’s management software suite EonOne, Administrators have access to an intuitive web-based application to easily manage clusters and multiple appliances, monitor performance and capacity usage, with complete system configurations.

Infortrend EonStor GSe 3012 Gen3 Storage - Specifications

Processor - 1 Socket

  • Intel Xeon D 4-Core

Cache Memory

    Single Controller:

  • Default DDR4 8GB, up to 192GB

Drive Bays

    Front Bays:

  • 12 x 3.5-inch drive bays

    • Via Expansion Enclosures, per Appliance:

  • 896 x Drives

    • Via Scale-Out, per Cluster:

  • 3584 x Drives

    • Compatible Drives:

  • 2.5" SAS SSD
  • 2.5" 12Gb/s SAS 10,000 RPM HDD
  • 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
  • 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD
  • 2.5" U.2 NVMe SSD (for U.2 SSD cache models)

RAID Options

  • RAID 0, RAID 1, RAID 3, RAID 5/5F, RAID 6/6F, RAID 10, RAID 30, RAID 50, RAID 60

Max. SSD Cache Pool (Block Level)

  • 4TB

Onboard 25GbE Ports (SFP28)

  • 2

Max. Host Board Slots

  • 2

Host Board Options

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 32Gb/s FC x 4
  • 10GbE (SFP+) x 2
  • 12Gb/s SAS x 2
  • 25GbE (SFP28) x 2, RDMA
  • 25GbE (SFP28) x 4, RDMA
  • 100GbE (QSFP28) x 1, RDMA
  • 100GbE (QSFP56) x 2, RDMA

Expansion Enclosures (JBODs)

  • JB 3012A, JB 3016A, JB 3024BA, JB 3025BA, JB 3060L, JB 3090

Chassis

    2U Enclosure

    Height: 88mm

    Width: 449mm

    Depth: 509.8mm

Power Supply

  • 530W x 2 (80 PLUS Bronze)

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)

Operating Systems

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • MacOS X
  • VMware
  • Citrix XenServer
  • OpenStack Cinder

Infortrend EonStor GSe 3012 Gen3 Storage - Documentation

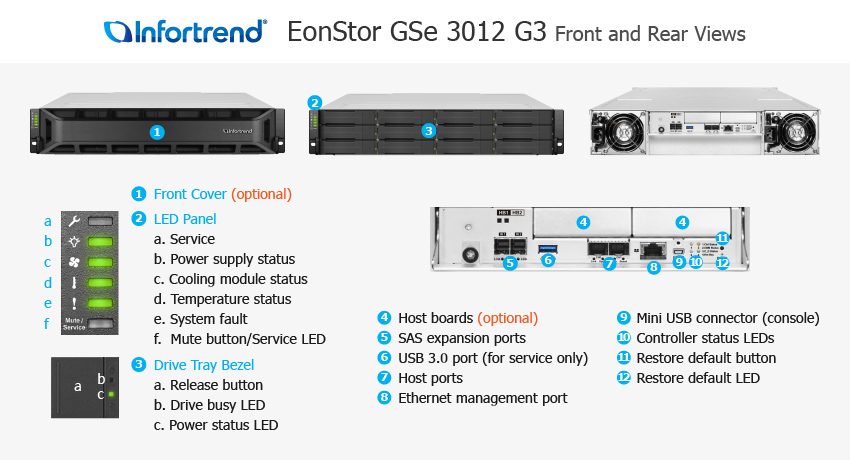

Infortrend EonStor GSe 3012 Gen3 Storage Data Sheet Infortrend EonStor GSe 3012 Gen3 Storage Front and Back View Infortrend EonStor GSe 3012 Gen3 Storage Unpacking List Infortrend EonStor GSe 3012 Gen3 Series Hardware Manual Infortrend EonStor GSe 3000 Gen3 Series Quick Installation Guide Infortrend Expansion Enclosure Guide Infortrend EonStor Command Line Interface Infortrend EonView User Manual
