Infortrend EonStor GSe 3016 Gen3 Storage

Outfitted with 16x storage bays and the ability to scale up to 896 drives, the Infortrend EonStor GSe 3016 Gen3 storage appliance is designed to meet the needs of small to medium-sized businesses. It offers a single controller to manage the system and the additional expansion enclosures to expand capacity. Drive-types supported includes SAS SSDS, NL-SAS, SAS HDDs, SATA SSDs, SATA HDDs, and U.2 NVMe SSDs.

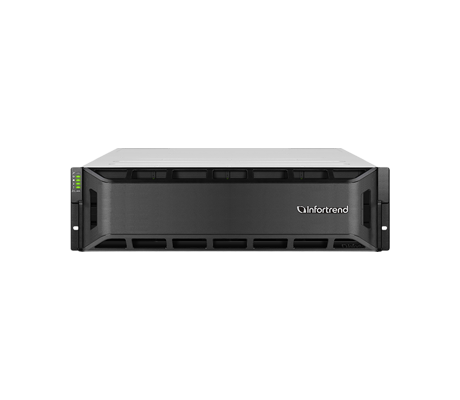

Infortrend GSe 3016 Gen3 front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

GSe 3012

Gen3

2U, 12-bay, single controller

GSe 3012

Gen3

3U, 16-bay, single controller

GSe 3012

Gen3

4U, 24-bay, single controller

GSe 3012

Gen3

4U, 40-bay, single controller

GSe 3012

Gen3

4U, 60-bay, single controller

GSe 3012

Gen3

4U, 90-bay, single controller

Infortrend EonStor GSe 3016 Gen3 Storage - System Overview

Additional Information

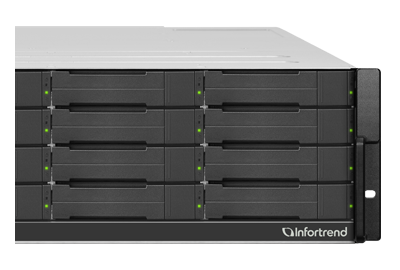

Infortrend GSe 3016 Gen3 front view

The Infortrend EonStor GSe 3016 Gen3 Storage Appliance supports hybrid storage with SSD cache and automated storage tiering. Offering the ability to integrate NAS and SAN into a unified storage solution, this system can support file-level protocols including CIFS, NFS, AFP, and FTP, as well as block-level protocols, such as Fiber Channel iSCSI, and SAS. With support for Hybrid storage and auto-tiering, the Infortrend GSe 3016 Gen3 can support a performance storage layer with high-performance I/O and SSDs for frequently accessed information, and large capacity HDDs for massive data archives that may be less frequently accessed.

INFORTREND EONSTOR GSE 3000 GEN3 MODELS

Infortrend EonStor GSe 3012 Gen3
  • 2U, 12-bay, single controller
Infortrend EonStor GSe 3016 Gen3
  • 3U, 16-bay, single controller
Infortrend EonStor GSe 3024 Gen3
  • 4U, 24-bay, single controller
Infortrend EonStor GSe 3040 Gen3
  • 4U, 40-bay, single controller
Infortrend EonStor GSe 3060 Gen3
  • 4U, 60-bay, single controller
Infortrend EonStor GSe 3090 Gen3
  • 4U, 90-bay, single controller

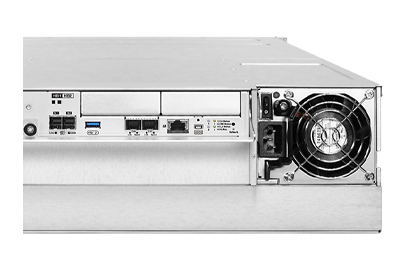

Infortrend EonStor GSe 3016 Gen3 Storage rear view

The storage controller has a single Intel Xeon D processor with 4-cores and supports a default cache memory allocation of 8GB of DDR4 memory. Cache memory can be upgraded to up to 192GB. Using additional Infortrend series appliances, this storage appliance can support up to 3,584 drives through scale-out, per cluster. Infortrend offers EonOne for an intuitive online management application to help configure, manage, and allocate resources.

Infortrend EonStor GSe 3016 Gen3 Storage - Specifications

Processor - 1 Socket

  • Intel Xeon D 4-Core

Cache Memory

    Single Controller:

  • Default DDR4 8GB, up to 192GB

Drive Bays

    Front Bays:

  • 16 x 3.5-inch drive bays

    • Via Expansion Enclosures, per Appliance:

  • 896 x Drives

    • Via Scale-Out, per Cluster:

  • 3584 x Drives

    • Compatible Drives:

  • 2.5" SAS SSD
  • 2.5" 12Gb/s SAS 10,000 RPM HDD
  • 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
  • 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD
  • 2.5" U.2 NVMe SSD (for U.2 SSD cache models)

RAID Options

  • RAID 0, RAID 1, RAID 3, RAID 5/5F, RAID 6/6F, RAID 10, RAID 30, RAID 50, RAID 60

Max. SSD Cache Pool (Block Level)

  • 4TB

Onboard 25GbE Ports (SFP28)

  • 2

Max. Host Board Slots

  • 2

Host Board Options

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 32Gb/s FC x 4
  • 10GbE (SFP+) x 2
  • 12Gb/s SAS x 2
  • 25GbE (SFP28) x 2, RDMA
  • 25GbE (SFP28) x 4, RDMA
  • 100GbE (QSFP28) x 1, RDMA
  • 100GbE (QSFP56) x 2, RDMA

Expansion Enclosures (JBODs)

  • JB 3012A, JB 3016A, JB 3024BA, JB 3025BA, JB 3060L, JB 3090

Chassis

    3U Enclosure

    Height: 130mm

    Width: 449mm

    Depth: 509.8mm

Power Supply

  • 530W x 2 (80 PLUS Bronze)

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)

Operating Systems

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • MacOS X
  • VMware
  • Citrix XenServer
  • OpenStack Cinder

Infortrend EonStor GSe 3016 Gen3 Storage - Documentation

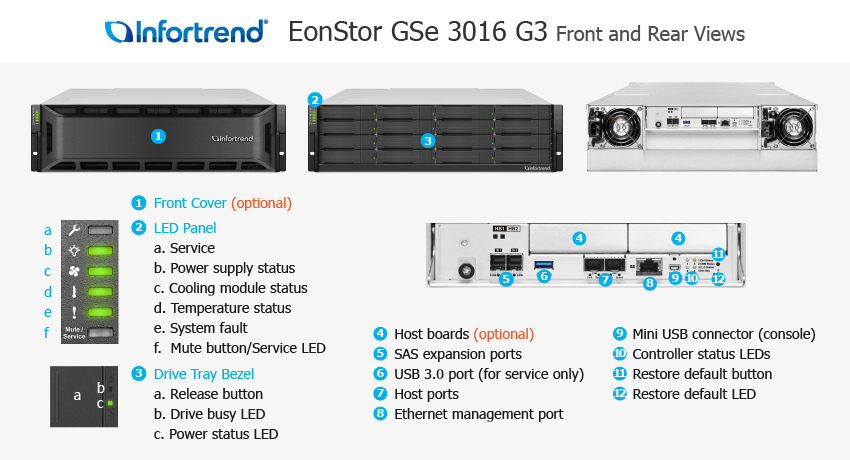

Infortrend EonStor GSe 3016 Gen3 Storage Data Sheet Infortrend EonStor GSe 3016 Gen3 Storage Front and Back View Infortrend EonStor GSe 3016 Gen3 Storage Unpacking List Infortrend EonStor GSe 3016 Gen3 Series Hardware Manual Infortrend EonStor GSe 3000 Gen3 Series Quick Installation Guide Infortrend Expansion Enclosure Guide Infortrend EonStor Command Line Interface Infortrend EonView User Manual
