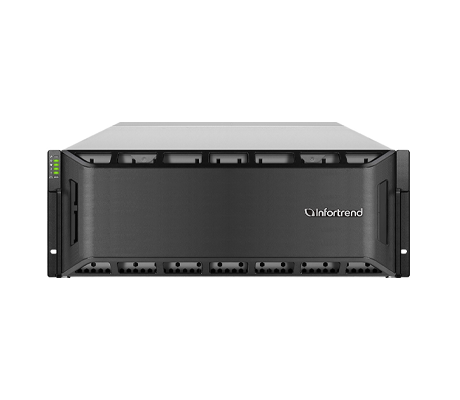

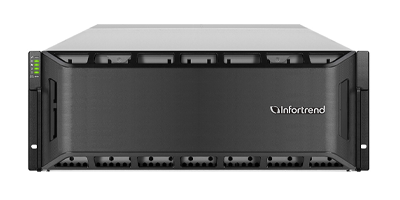

Infortrend EonStor GSe 3040 Gen3 Storage

Infortrend EonStor GSe 3040 Gen3 Storage - System Overview

Additional Information

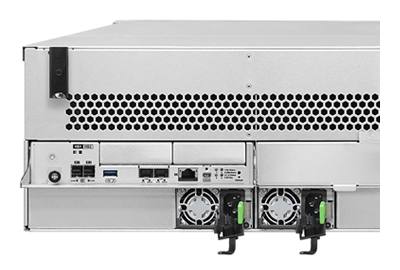

Outfitted with a single controller, the Infortrend EonStor GSe 3040 Gen3 is designed to address essential applications used by SMBs. The single storage controller includes an Intel Xeon D processor with 4 cores. The system has 12GB of DDR4 cache memory that can be upgraded to 192GB. It also features 4TB of SSD storage for block-level data protection in the event of a power failure. There is one SAS expansion slot for connecting additional expansion enclosures and 4x onboard 1GbE ports for network communications. There are also two host board slots for additional expansion and host port options. The system supports a number of different file types including SAS HDDs and SSDs plus SATA SSDs and HDDs.

INFORTREND EONSTOR GSE 3000 GEN3 MODELS

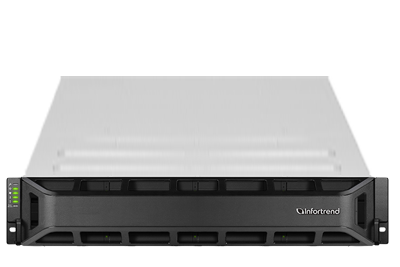

Infortrend EonStor GSe 3012 Gen3

• 2U, 12-bay, single controller

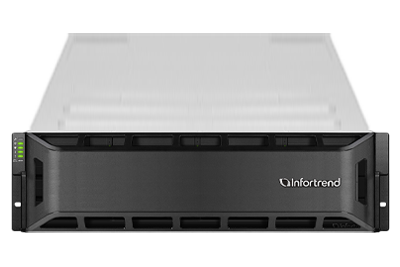

Infortrend EonStor GSe 3016 Gen3

• 3U, 16-bay, single controller

Infortrend EonStor GSe 3024 Gen3

• 4U, 24-bay, single controller

Infortrend EonStor GSe 3040 Gen3

• 4U, 40-bay, single controller

Infortrend EonStor GSe 3060 Gen3

• 4U, 60-bay, single controller

Infortrend EonStor GSe 3090 Gen3

• 4U, 90-bay, single controller

For managing this system Infortrend provides EonOne a management software utility. With EonOne, Administrators can easily manage a cluster and multiple appliances monitor capacity usage and monitor performance from a standard browser interface.
