Infortrend EonStor GSe 4024 Gen3 Storage

Offering a scalable path to add Petabytes of scale-out unified storage for SMBs, the 4U Infortrend EonStor GSe 4024 Gen3 Storage Appliance allows for easy integration and expansion of local SAN and NAS storage into cloud services. It features a single controller that can support up to 896 drives with scale-up through adding additional expansion enclosures.

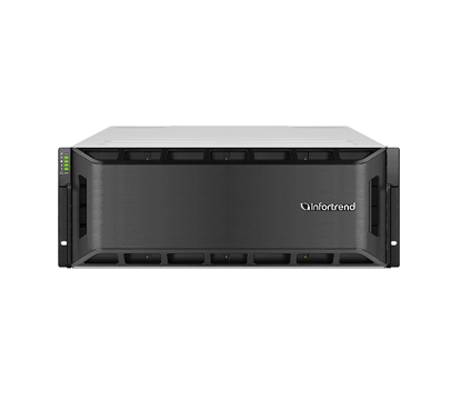

EonStor GSe 4024 Gen3 Storage front
Intel Partner Gold

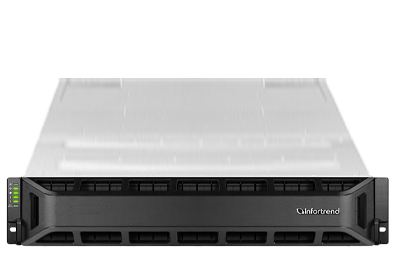

Infortrend GSe 4012

Gen3

Infortrend GSe 4012

Infortrend GSe 4016

Gen3

Infortrend GSe 4016

Infortrend GSe 4024

Gen3

Infortrend GSe 4024

Infortrend GSe 4040

Gen3

Infortrend GSe 4040

Infortrend GSe 4060

Gen3

Infortrend GSe 4060

Infortrend GSe 4090

Gen3

Infortrend GSe 4090

Infortrend EonStor GSe 4024 Gen3 Storage - System Overview

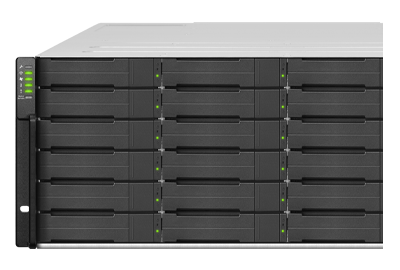

Infortrend GSe 4024 Gen3 front view

Additional Information

That single controller is outfitted with 1x Intel Xeon D processor with 6x cores and featuring a default cache memory of 8GB of DDR4 memory. It can also support an optional super capacitor and flash module to prevent data loss in the event of a power failure or natural disaster. Around back there are dual redundant 530W 80 PLUS Bronze PSUs.

INFORTREND EONSTOR GSE 4000 GEN3 MODELS

Infortrend EonStor GSe 4012 Gen3
  • 2U, 12-bay SAS/SATA HDDs and SSDs, U.2 NVMe Cache

Infortrend EonStor GSe 4016 Gen3
  • 3U, 16-bay SAS/SATA HDDs and SSDs, U.2 NVMe Cache

Infortrend EonStor GSe 4024 Gen3
  • 4U 24-bay SAS/SATA HDDs and SSDs, U.2 NVMe Cache

Infortrend EonStor GSe 4040 Gen3
  • 4U 40-bay SAS/SATA HDDs and SSDs, U.2 NVMe Cache

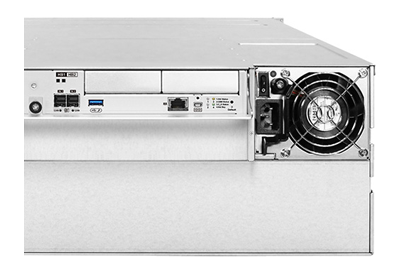

Infortrend EonStor GSe 4024 Gen3 Storage rear view
Infortrend EonStor GSe 4060 Gen3
  • 4U 60-bay SAS/SATA HDDs and SSDs, U.2 NVMe Cache

Infortrend EonStor GSe 4090 Gen3
  • 4U 90-bay SAS/SATA HDDs and SSDs, U.2 NVMe Cache

The platform supports various backup features to prevent unexpected data loss. It also offers several cloud features with an intelligent cloud gateway engine. Featuring immutable object storage, data is retained with WORM (write once read many) storage protection. WORM “locks” data so it cannot be modified, deleted, overwritten or encrypted by ransomware. For managing multiple appliances and clusters, monitoring system performance, storage allocation, and complete system configurations Infortrend offers EonOne a comprehensive management utility with an intuitive user interface.

Infortrend EonStor GSe 4024 Gen3 Storage - Specifications

Processor - 1 Socket

  • Intel Xeon D 6-Core

Cache Memory

Single Controller:

  • Default DDR4 8GB, up to 192GB

Drive Bays

Front Bays:

  • 24 x 3.5-inch drive bays

Supported Drives:

  • 2.5" SAS SSD
  • 2.5" 12Gb/s SAS 10,000 RPM HDD
  • 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
  • 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD
  • 2.5" U.2 NVMe SSD

Via Expansion Enclosures, per Appliance:

  • 896 x Drives

Via Scale-Out, per Cluster:

  • 3584 x Drives

RAID Options

  • RAID 0, RAID 1, RAID 3, RAID 5/5F, RAID 6/6F, RAID 10, RAID 30, RAID 50, RAID 60

Max. SSD Cache Pool (Block Level)

  • 4TB

Onboard 1GbE Ports (RJ45)

  • 0

Onboard 25GbE Ports (SFP28)

  • 0

Max. Host Board Slots

  • 2

Host Board Options

  • 16Gb/s FC x 4
  • 32Gb/s FC x 2
  • 32Gb/s FC x 4
  • 10GbE (SFP+) x 2
  • 25GbE (SFP28) x 2, RDMA
  • 25GbE (SFP28) x 4, RDMA
  • 12Gb/s SAS x 2
  • 100GbE (QSFP28) x 1, RDMA
  • 100GbE (QSFP56) x 2, RDMA

Expansion Enclosures (JBODs)

  • JB 3012A, JB 3016A, JB 3024BA, JB 3025BA, JB 3060L, JB 3090

Chassis

4U Enclosure
Height: 174.6mm
Width: 449mm
Depth: 509.8mm

Power Supply

  • 530W x 2 (80 PLUS Bronze)

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)

Operating Systems

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • MacOS X
  • VMware
  • Citrix XenServer
  • OpenStack Cinder

Infortrend EonStor GSe 4024 Gen3 Storage - Documentation

Infortrend EonStor GSe 4024 Gen3 Storage Data Sheet Infortrend EonStor GSe 4024 Gen3 Storage Front and Back View Infortrend EonStor GSe 4024 Gen3 Storage Unpacking List Infortrend EonStor GSe 4024 Gen3 Hardware Manual Infortrend EonStor GSe 4024 Gen3 Quick Installation Guide Infortrend Expansion Enclosure Guide Infortrend EonStor Command Line Interface Infortrend EonView User Manual
