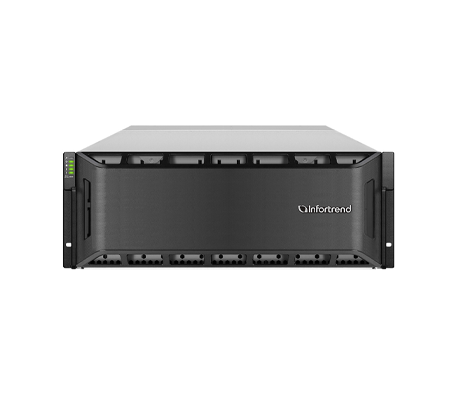

Infortrend EonStor GSe 4040 Gen3 Storage

With a single controller, the Infortrend EonStor GSe 4040 Gen3 Storage Appliance is designed for SMBs and SMEs to expand and integrate their local SAN and NAS storage infrastructure into cloud services. It delivers high-performance and scalable storage system that can scale-up to 896 drives using additional expansion enclosures or scale-out to up to 3584 drives with other appliances, per cluster.

Overview

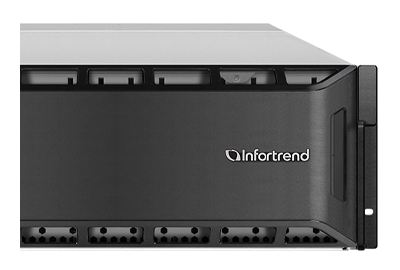

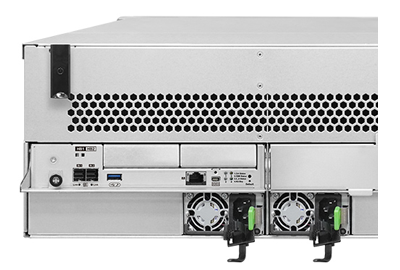

Infortrend EonStor GSe 4040 Gen3 Storage - System Overview

Additional Information

The single storage controller housed in the Infortrend EonStor GSe 4040 G3 Storage Appliance has an Intel Xeon D processor with 6 cores and up to 12GB of DDR4 cache memory. The controller can be upgraded to provide up to 192GB of cache storage and with an optional super capacitor with flash storage. For block-level storage protocols, it features a 4TB U.2 NVMe drive for a solid-state cache pool.

INFORTREND EONSTOR GSE 4000 GEN3 MODELS

Infortrend EonStor GSe 4012 Gen3

2U, 12-bay SAS/SATA HDDs and SSDs, U.2 NVMe Cache

Infortrend EonStor GSe 4016 Gen3

3U, 16-bay SAS/SATA HDDs and SSDs, U.2 NVMe Cache

Infortrend EonStor GSe 4024 Gen3

4U 24-bay SAS/SATA HDDs and SSDs, U.2 NVMe Cache

Infortrend EonStor GSe 4040 Gen3

4U 40-bay SAS/SATA HDDs and SSDs, U.2 NVMe Cache

Infortrend EonStor GSe 4060 Gen3

4U 60-bay SAS/SATA HDDs and SSDs, U.2 NVMe Cache

Infortrend EonStor GSe 4090 Gen3

4U 90-bay SAS/SATA HDDs and SSDs, U.2 NVMe Cache

Along with easy upgrades to the controller, the system offers easy maintenance with a modular system of removable fans and power supplies. For monitoring performance and allocating resources, Infortrend offers the EonOne software utility accessible through a user-friendly interface. This appliance can also be used for a backup appliance with Intelligent Drive Recovery (IDR), snapshot, local/remote replication, and file-level sync.

Specifications

Infortrend EonStor GSe 4040 Gen3 Storage - Specifications

Processor - 1 Socket

Intel Xeon D 6-Core

Cache Memory

Single Controller:

Default DDR4 12GB, up to 192GB

Drive Bays

Front Bays:

40 x 3.5-inch drive bays

Supported Drives:

2.5" SAS SSD
2.5" 12Gb/s SAS 10,000 RPM HDD
3.5" 12Gb/s NL-SAS 7,200 RPM HDD
2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD
2.5" U.2 NVMe SSD

Via Expansion Enclosures, per Appliance:

896 x Drives

Via Scale-Out, per Cluster:

3584 x Drives

RAID Options

RAID 0, RAID 1, RAID 3, RAID 5/5F, RAID 6/6F, RAID 10, RAID 30, RAID 50, RAID 60

Max. SSD Cache Pool (Block Level)

Onboard 1GbE Ports (RJ45)

Onboard 25GbE Ports (SFP28)

Max. Host Board Slots

Host Board Options

16Gb/s FC x 4
32Gb/s FC x 2
32Gb/s FC x 4
10GbE (SFP+) x 2
25GbE (SFP28) x 2, RDMA
25GbE (SFP28) x 4, RDMA
12Gb/s SAS x 2
100GbE (QSFP28) x 1, RDMA
100GbE (QSFP56) x 2, RDMA

Expansion Enclosures (JBODs)

JB 3012A, JB 3016A, JB 3024BA, JB 3025BA, JB 3060L, JB 3090

Chassis

4U Enclosure
Height: 176mm
Width: 438mm
Depth: 735.8mm

Power Supply

1200W x 2 (80 PLUS Platinum)

Management

Web-based EonOne management software
User account management
Group management
Folder management - folder access control
Quota management
Folder encryption with AES
Integration with Microsoft Active Directory (AD) and Linux LDAP
Storage Resource Management to analyze history of resource usage
Multi-factor authentication login mechanism
File-level QoS (network traffic control)

Operating Systems

Microsoft Windows Server
Red Hat Enterprise Linux
SUSE Linux Enterprise
Sun Solaris
MacOS X
VMware
Citrix XenServer
OpenStack Cinder

Documentation

Infortrend EonStor GSe 4040 Gen3 Storage - Documentation

Infortrend EonStor GSe 4040 Gen3 Storage Data Sheet Infortrend EonStor GSe 4040 Gen3 Storage Front and Back View Infortrend EonStor GSe 4040 Gen3 Storage Unpacking List Infortrend EonStor GSe 4040 Gen3 Hardware Manual Infortrend EonStor GSe 4040 Gen3 Quick Installation Guide Infortrend Expansion Enclosure Guide Infortrend EonStor Command Line Interface Infortrend EonView User Manual
